The Alpha Pompe Pump 03RA-T 7.5 HP 230/400V is a powerful self-priming centrifugal pump ideal for commercial shipping, large pleasure crafts, and coastal shipping. It is also suitable for sprinkling, irrigation, dewatering, and industrial cooling tasks. The pump features a 3" connection, a 7.5 HP motor, and delivers up to 87,000 liters per hour at 15 meters head, with IP68 protection but without ATEX certification.
- Description
- Ask a Question
-

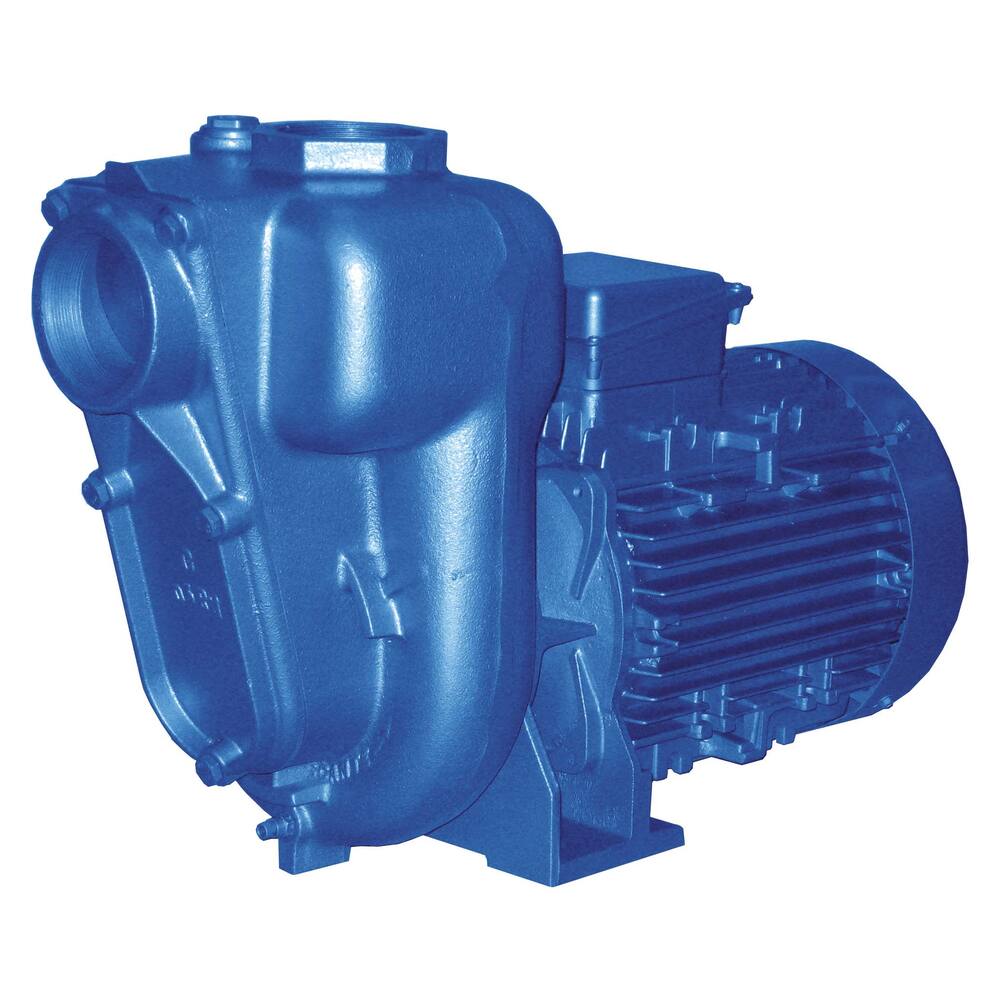

Alpha Pompe Pump 03RA-T 7.5 HP 230/400V
Ideal for commercial shipping, large pleasure craft, and coastal shipping, this pump also supports sprinkling, irrigation, dewatering, and industrial cooling tasks with robust performance.
- Type: 03RA-T
- Colour: blue
- Pump type: self-priming centrifugal pump (1" model limited self-priming approximately 2 meters)
- Impeller type: open impeller
- Motor type: short circuit motor for 400 volt
- Fuse: inbuilt thermal safeguard only for the 230 volt motors
- Shaft seal: ceramic on carbon mechanical seal with neoprene or Viton elastomers (for gas oil)
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel AISI 420
- Liquids handled: contaminated water, sea water, etc., max temperature 90°C
- Insulation class: IP55
- Flow rates at various heads:
- 15 m head: 87,000 litres/hour
- 20 m head: 72,000 litres/hour
- 25 m head: 42,000 litres/hour
- 27 m head: 21,000 litres/hour
- Connections: 3" internal thread
- Dimensions (LxWxH): 651 x 274 x 435 mm
- Weight: 75 kg
- Amperage 400 V: 11.5 A
- Shaft power: 5.5 kW, 7.5 hp, 2800 rpm
- Product code: 92.11.180
- Suction head: 7.0 m
- Pipe diameter pressure: 3"
- Pipe diameter suction: 3"
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Particle size: 24 mm
- Maximum discharge head: 28.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow: 87,000 L/hour
- Capacity at 5 meters: 87,000 L/hour
-
