The Alpha Pompe Pump 03RAG-T 5.5 HP 400V is a powerful self-priming centrifugal pump built for demanding deck wash and bilge tasks on commercial ships and large pleasure crafts. It has a 3" connection, a 5.5 HP motor, and handles contaminated water up to 90°C. This pump delivers up to 66,000 liters per hour at 5 meters head and is suitable for sprinkling, irrigation, dewatering, and industrial cooling applications.
- Description
- Ask a Question
-

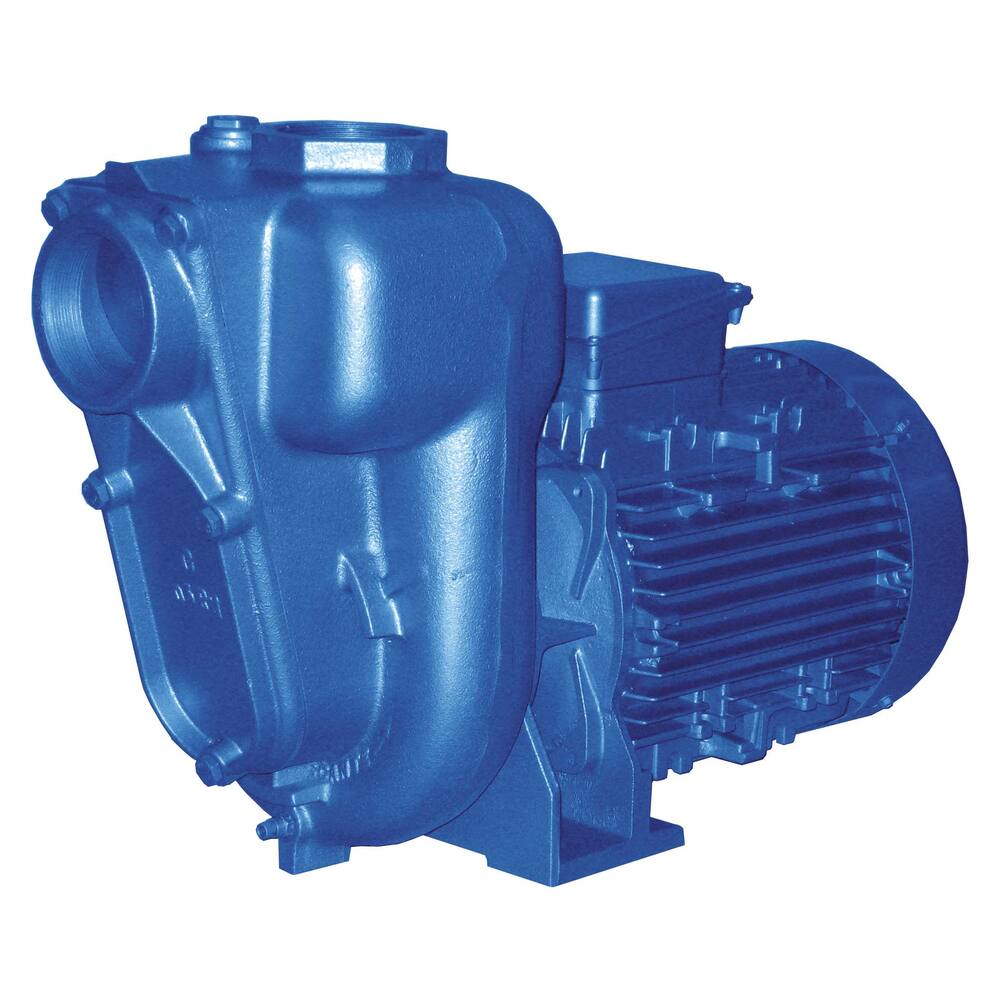

Alpha Pompe Pump 03RAG-T 5.5 HP 400V
Built for demanding deck wash and bilge pump tasks aboard commercial ships, large pleasure crafts, and coastal vessels, this pump also excels in sprinkling, irrigation, dewatering, and industrial cooling applications.
- Type: 03RAG-T
- Colour: blue
- Pump type: self-priming centrifugal pump (1" model with limited self-priming about ±2 meters)
- Impeller type: open impeller
- Motor type: short circuit motor for 400 volt
- Fuse: inbuilt thermal safeguard only for 230 volt motors
- Shaft seal: ceramic on carbon mechanical seal with neoprene or Viton elastomers (for gas oil)
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel AISI 420
- Liquids handled: contaminated water, sea water, max temperature 90°C
- Insulation class: IP55
- Performance:
- 15 metres head: 66,000 litres per hour
- 20 metres head: 45,000 litres per hour
- 24 metres head: 15,600 litres per hour
- Connections: 3" internal thread
- Dimensions (LxWxH): 598 x 274 x 435 mm
- Weight: 74 kg
- Amperage: 9.0 A
- Shaft power: 4 kW, 5.5 hp, 2800 rpm
- Product code: 92.11.150
- Suction head: 7.0 m
- Pipe diameter pressure/suction: 3"
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Particle size: 19 mm
- Max discharge head: 25.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- Free flow: 66,000 L/hour
- Capacity at 5 meter head: 66,000 L/hour
-
