The Alpha Pompe Pump 03RAG-T 5.5 HP 400V ATEX is an explosion-proof self-priming centrifugal pump designed for deck wash and bilge pumping on commercial and pleasure vessels. It is suitable for sprinkling, irrigation, dewatering, and industrial cooling, especially in hazardous environments handling flammable cargo residues like petrol. It features a 3" connection, a 5.5 HP motor, and delivers up to 66,000 liters per hour at 15 meters head with ATEX certification and IP68 protection.
- Description
- Ask a Question
-

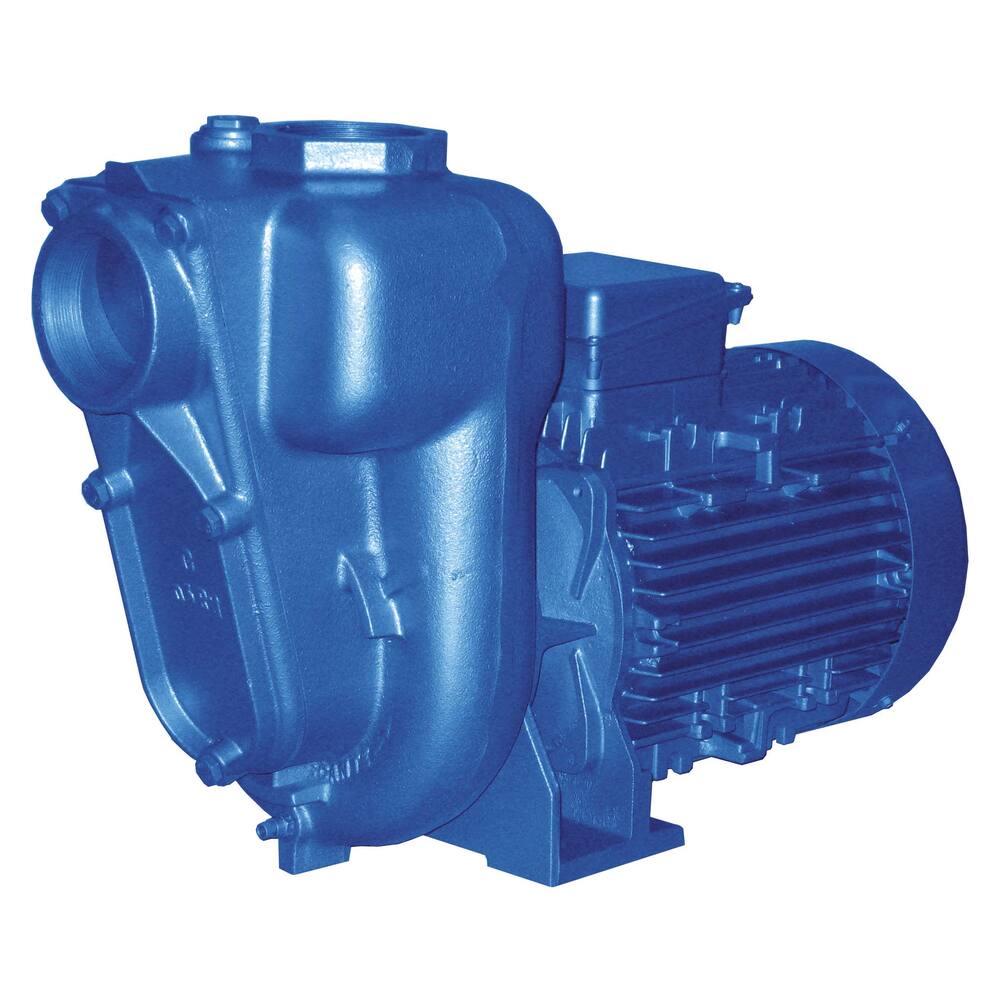

Alpha Pompe Pump 03RAG-T 5.5 HP 400V ATEX
This ATEX certified pump is ideal for deck wash and bilge pumping on commercial and pleasure vessels. It is also suited for sprinkling, irrigation, dewatering, and industrial cooling, especially where explosion protection is required, such as pumping cargo residues like petrol.
- Type: 03RAG-T
- Colour: blue
- Pump type: self-priming centrifugal pump (1" model with limited self-priming of ±2 meters)
- Impeller type: open impeller
- Motor type: short circuit motor for 400 volt
- Fuse: inbuilt thermal safeguard only for 230 volt motors
- Shaft seal: ceramic on carbon mechanical seal with neoprene or Viton elastomers (for gas oil)
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel AISI 420
- Liquids handled: contaminated water, sea water, max temperature 90°C
- Insulation class: IP55
- Performance:
- 15 metres head: 66,000 litres per hour
- 20 metres head: 45,000 litres per hour
- 24 metres head: 15,600 litres per hour
- Connections: 3" internal thread
- Dimensions (LxWxH): 598 x 274 x 435 mm
- Weight: 74 kg
- Amperage: 9.0 A
- Shaft power: 4 kW, 5.5 hp, 2800 rpm
- ATEX certification: II 2 G EEx d IIHB T5, T4, T3
- Explosion protection: Equipped with explosion-proof, compression-resistant motor and mechanical seal with Viton for safe handling of flammable cargo residues
- Product code: 92.11.151
- Suction head: 7.0 m
- Pipe diameter pressure/suction: 3"
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Particle size: 19 mm
- Max discharge head: 25.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: Yes
- Free flow: 66,000 L/hour
- Capacity at 5 meter head: 66,000 L/hour
-
