ID
1316698
$ 1,933.02
1-2 weeks delivery time
-
+
The Alpha Pompe Pump 03RAS-T 4 HP 400V is a self-priming centrifugal pump designed for deck wash, bilge, sprinkling, irrigation, dewatering, and industrial cooling on commercial vessels and large pleasure crafts. It features a 3" connection, a 4 HP motor, and handles contaminated water up to 90°C with a capacity of 54,000 liters per hour at 5 meters head.
- Description
- Ask a Question
-

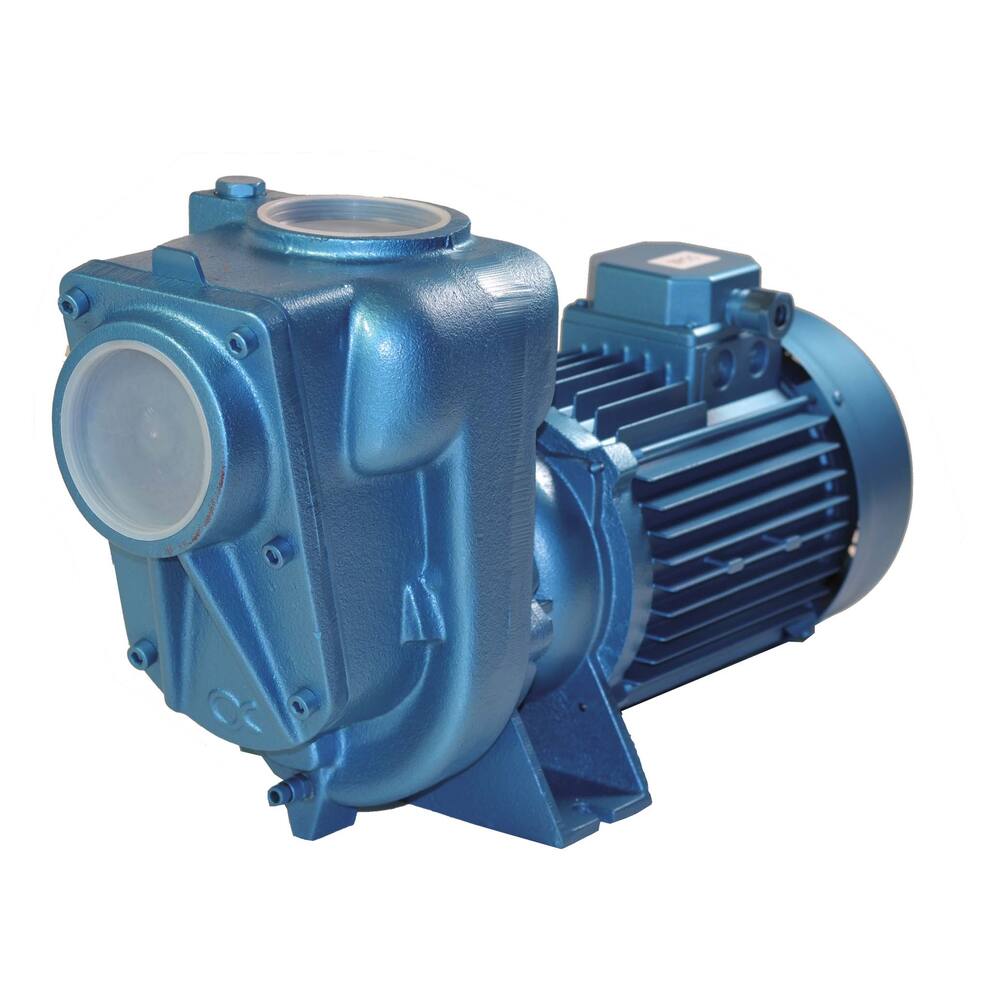

Alpha Pompe Pump 03RAS-T 4 HP 400V
This pump is designed for deck wash and bilge operations on commercial vessels, large pleasure crafts, and coastal shipping. It is also suitable for sprinkling, irrigation, dewatering, and functions effectively as a cooling medium pump in industrial settings.
- Type: 03RAS-T
- Colour: blue
- Pump type: self-priming centrifugal pump (1" model with limited self-priming capability of approximately ±2 meters)
- Impeller type: open impeller
- Motor type: short circuit motor for 400 volt
- Fuse: inbuilt thermal safeguard only for 230 volt motors
- Shaft seal: ceramic on carbon mechanical seal with neoprene or Viton elastomers (suitable for gas oil)
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel AISI 420
- Liquids handled: contaminated water, sea water, etc., max temperature 90°C
- Insulation class: IP55
- Performance:
- 10 metres head: 41,700 litres per hour
- 15 metres head: 25,200 litres per hour
- Connections: 3" internal thread
- Dimensions (LxWxH): 535 x 205 x 306 mm
- Weight: 35 kg
- Amperage: 7.0 A
- Shaft power: 3.0 kW, 4.0 hp, 2800 rpm
- Product code: 92.11.130
- Suction head: 7.0 m
- Pipe diameter pressure/suction: 3"
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Particle size: 24 mm
- Max discharge head: 20.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- Free flow: 54,000 L/hour
- Capacity at 5 meter head: 54,000 L/hour
-
