ID
1316697
$ 4,082.84
1-2 weeks delivery time
-
+
The Alpha Pompe Pump 03RAS/G-T 3 HP 400V ATEX is an explosion-proof version of the 03RAS/G-T pump, suitable for cargo residues like petrol. It has a 3" connection, a 3 HP motor, and a mechanical seal with Viton elastomers. Certified for hazardous environments, it delivers 48,000 liters per hour at 5 meters head and is ideal for commercial and coastal shipping applications.
- Description
- Ask a Question
-

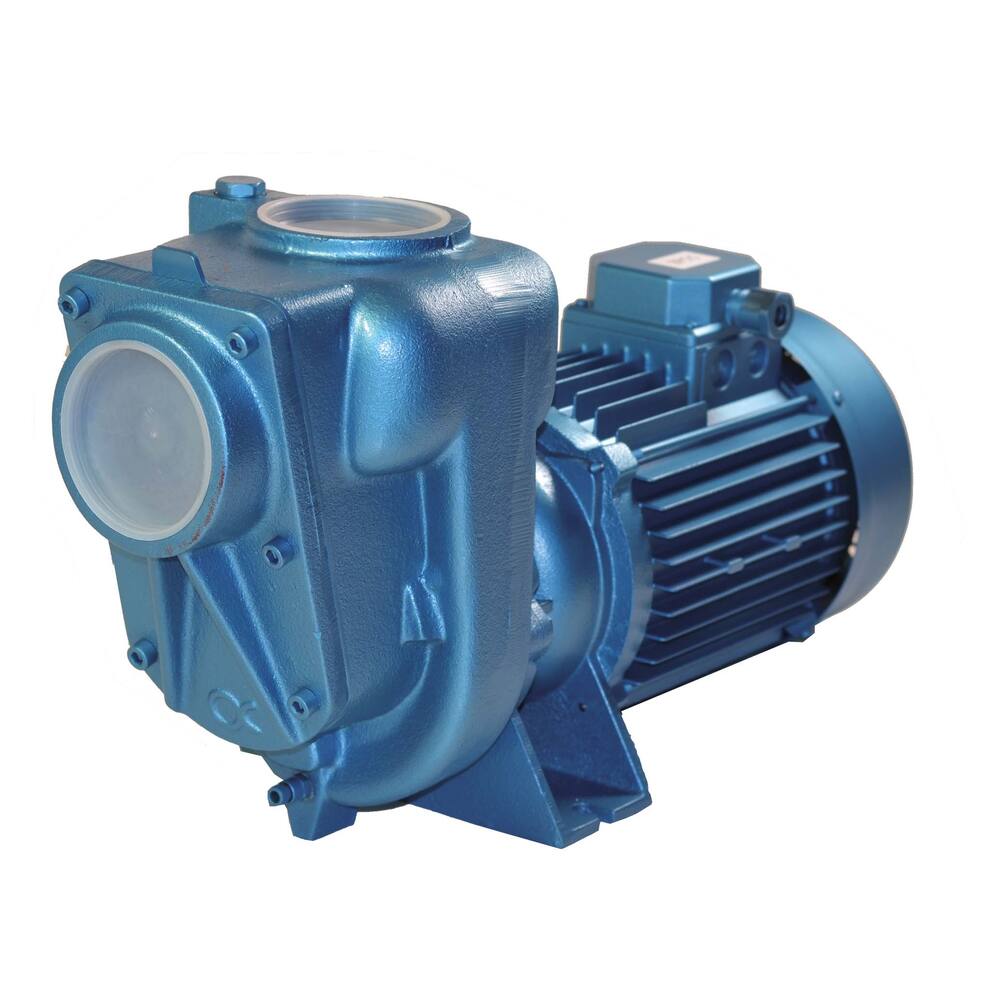

Alpha Pompe Pump 03RAS/G-T 3 HP 400V ATEX
Engineered for deck wash and bilge tasks on commercial shipping, large pleasure craft, and coastal shipping, this pump also excels in sprinkling, irrigation, dewatering, and industrial cooling applications.
- Type: 03RAS/G-T
- Colour: blue
- Pump type: self-priming centrifugal pump (1" model limited self-priming ± 2 meters)
- Impeller type: open impeller
- Motor type: short circuit motor for 400 volt
- Fuse: inbuilt thermal safeguard only for the 230 volt motors
- Shaft seal: ceramic on carbon mechanical seal with neoprene or Viton elastomers (for gas oil)
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel AISI 420
- Liquids handled: contaminated water, sea water, etc., max temperature 90°C
- Insulation class: IP55
- Performance:
- 10 metres head: 36,000 litres per hour
- 15 metres head: 21,600 litres per hour
- Connections: 3" internal thread
- Dimensions (LxWxH): 502 x 205 x 321 mm
- Weight: 32 kg
- Amperage: 5.7 A
- Shaft power: 2.2 kW, 3 hp, 2800 rpm
- ATEX certification: II 2 G EEx d IIHB T5, T4, T3
- Special features: Suitable for cargo residues such as petrol, equipped with explosion proof and compression resistant motor plus mechanical seal with Viton
- Product code: 92.11.126
- Suction head: 7.0 m
- Pipe diameters (pressure & suction): 3"
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Particle size capacity: 23 mm
- Max discharge head: 19.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: Yes
- Free flow: 48,000 L/hour
- Capacity at 5 meters: 48,000 L/hour
-
