ID
1316696
$ 1,546.75
1-2 weeks delivery time
-
+
The Alpha Pompe Pump 03RAS/G-T 3 HP 400V is a self-priming centrifugal pump designed for deck wash, bilge, sprinkling, irrigation, dewatering, and industrial cooling on commercial vessels and large pleasure crafts. It features a 3" connection, a 3 HP motor, and handles contaminated water up to 90°C with a capacity of 48,000 liters per hour at 5 meters head. This model is not ATEX certified.
- Description
- Ask a Question
-

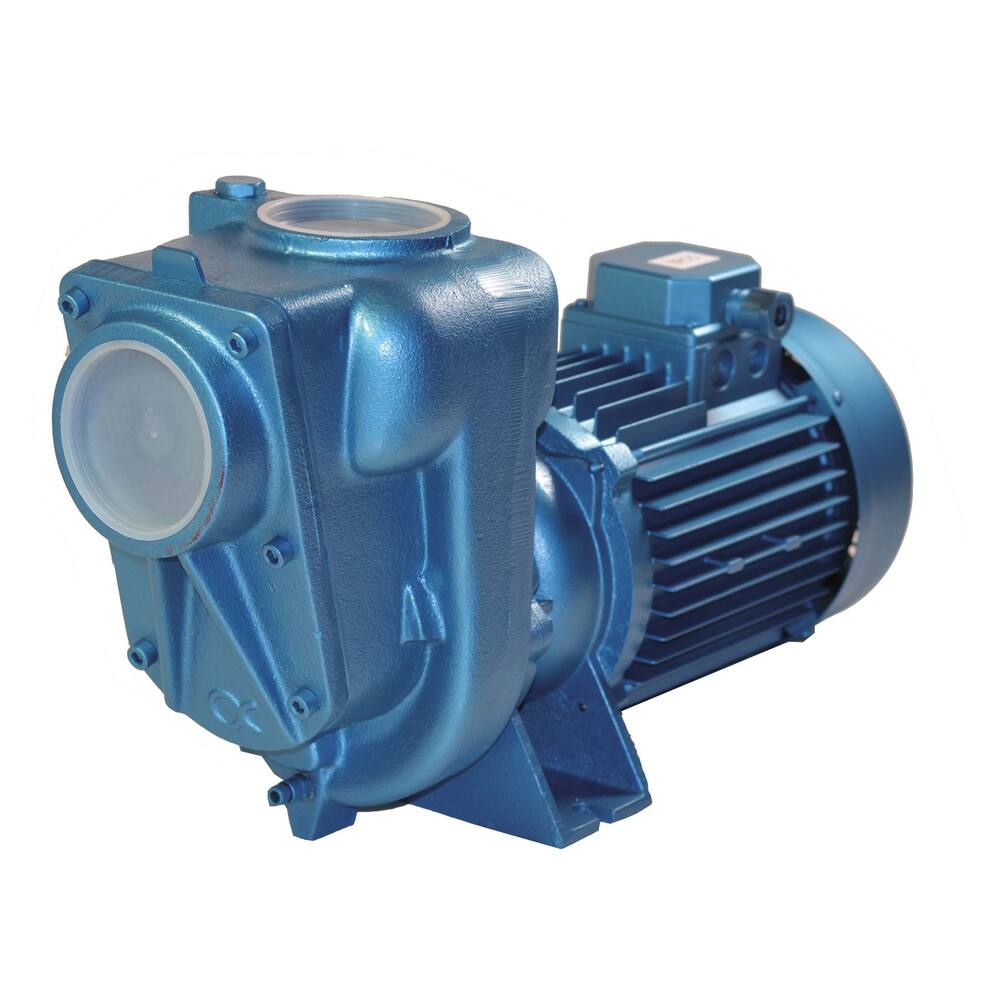

Alpha Pompe Pump 03RAS/G-T 3 HP 400V
This pump is ideal for deck wash and bilge use on commercial vessels, large pleasure crafts, and coastal ships. It is also applicable for sprinkling, irrigation, dewatering, and serving as a cooling medium pump in industrial settings.
- Type: 03RAS/G-T
- Colour: blue
- Pump type: self-priming centrifugal pump (1" model limited self-priming ± 2 meters)
- Impeller type: open impeller
- Motor type: short circuit motor for 400 volt
- Fuse: inbuilt thermal safeguard only for the 230 volt motors
- Shaft seal: ceramic on carbon mechanical seal with neoprene or Viton elastomers (for gas oil)
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel AISI 420
- Liquids handled: contaminated water, sea water, etc., max temperature 90°C
- Insulation class: IP55
- Performance:
- 10 metres head: 36,000 litres per hour
- 15 metres head: 21,600 litres per hour
- Connections: 3" internal thread
- Dimensions (LxWxH): 502 x 205 x 321 mm
- Weight: 32 kg
- Amperage: 5.7 A
- Shaft power: 2.2 kW, 3 hp, 2800 rpm
- Product code: 92.11.125
- Suction head: 7.0 m
- Pipe diameters (pressure & suction): 3"
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Particle size capacity: 23 mm
- Max discharge head: 19.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow: 48,000 L/hour
- Capacity at 5 meters: 48,000 L/hour
-
