ID
1316694
$ 1,546.75
1-2 weeks delivery time
-
+
The Alpha Pompe Pump 02.1/2RA-T 3 HP 400V is a self-priming centrifugal pump suited for deck wash, bilge, sprinkling, irrigation, dewatering, and industrial cooling on commercial and pleasure vessels. It has a larger 2.5" connection size, a 3 HP motor, and handles contaminated water up to 90°C. This model is not ATEX certified and delivers a free flow of 33,000 liters per hour at 5 meters head.
- Description
- Ask a Question
-

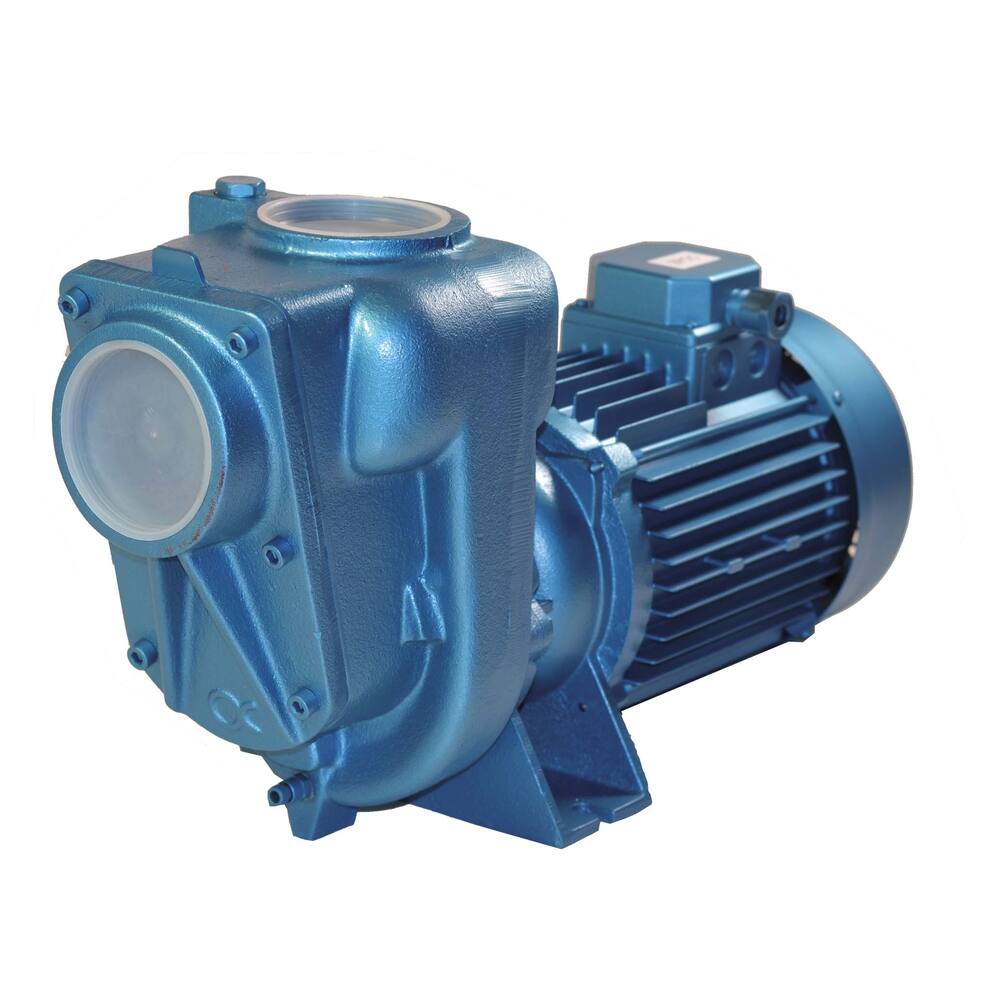

Alpha Pompe Pump 02.1/2RA-T 3 HP 400V
Engineered for deck wash and bilge use on commercial and pleasure vessels, this pump also performs well in sprinkling, irrigation, dewatering, and industrial cooling applications. It features a larger 2.5" connection size and higher power output for increased capacity.
- Type: 02½RA-T
- Colour: blue
- Pump type: self-priming centrifugal pump (1" model limited self-priming ± 2 meters)
- Impeller type: open impeller
- Motor type: short circuit motor for 400 volt
- Fuse: inbuilt thermal safeguard only for 230 volt motors
- Shaft seal: ceramic on carbon mechanical seal with neoprene or Viton elastomers (for gas oil)
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel AISI 420
- Liquids handled: contaminated water, sea water, etc., max temperature 90°C
- Insulation class: IP55
- Capacity at 10 m head: 31,500 litres per hour
- Capacity at 15 m head: 21,300 litres per hour
- Connections: 2.1/2" internal thread
- Dimensions (LxWxH): 502 x 205 x 321 mm
- Weight: 32 kg
- Amperage: 5.7 A
- Shaft power: 2.2 kW, 3 hp, 2800 rpm
- Product code: 92.11.100
- Suction head: 7.0 m
- Pipe diameter pressure: 2.1/2"
- Pipe diameter suction: 2.1/2"
- Dry set-up pump: self-priming
- Medium: Water
- Particle size: 20 mm
- Maximum discharge head: 18.5 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow: 33,000 L/hour
- Capacity at 5 meter head: 33,000 L/hour
-
