ID
1316695
$ 4,180.63
1-2 weeks delivery time
-
+
The Alpha Pompe Pump 02.1/2RA-T 3 HP 400V ATEX is similar to the non-ATEX version but includes explosion-proof features for handling cargo residues such as petrol. It has a 2.5" connection, a 3 HP motor, and a mechanical seal with Viton elastomers. This pump is certified for hazardous environments and delivers 33,000 liters per hour at 5 meters head, making it suitable for commercial and coastal shipping applications.
- Description
- Ask a Question
-

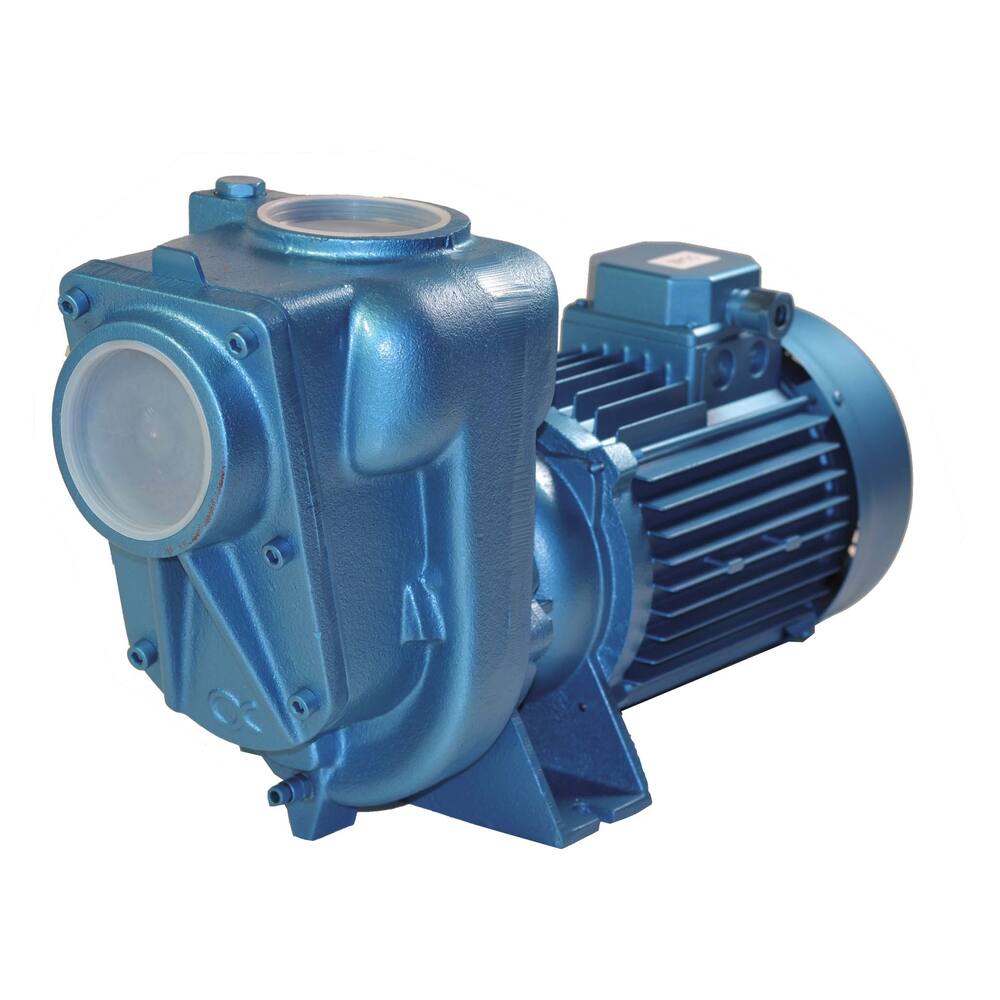

Alpha Pompe Pump 02.1/2RA-T 3 HP 400V ATEX
Designed for deck wash and bilge applications in commercial shipping, large pleasure crafts, and coastal shipping, this pump also serves well for sprinkling, irrigation, dewatering, and industrial cooling purposes.
- Type: 02½RA-T
- Colour: blue
- Pump type: self-priming centrifugal pump (1" model limited self-priming ± 2 meters)
- Impeller type: open impeller
- Motor type: short circuit motor for 400 volt
- Fuse: inbuilt thermal safeguard only for the 230 volt motors
- Shaft seal: ceramic on carbon mechanical seal with neoprene or Viton elastomers (suitable for gas oil)
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel AISI 420
- Liquids handled: contaminated water, sea water, etc., max temperature 90°C
- Insulation class: IP55
- Performance:
- 10 metres head: 31,500 litres per hour
- 15 metres head: 21,300 litres per hour
- Connections: 2.1/2" internal thread
- Dimensions (LxWxH): 502 x 205 x 321 mm
- Weight: 32 kg
- Amperage: 5.7 A
- Shaft power: 2.2 kW, 3 hp, 2800 rpm
- ATEX certification: II 2 G EEx d IIHB T5, T4, T3
- Special features: Suitable for cargo residues such as petrol, equipped with explosion proof and compression resistant motor plus mechanical seal with Viton
- Product code: 92.11.102
- Suction head: 7.0 m
- Pipe diameters (pressure & suction): 2.1/2"
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Particle size capacity: 20 mm
- Max discharge head: 18.5 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: Yes
- Free flow: 33,000 L/hour
- Capacity at 5 meters: 33,000 L/hour
-
