ID
1316689
$ 1,080.61
1-2 weeks delivery time
-
+
The Alpha Pompe Pump 02RAS-T 1.5 HP 400V is built for commercial and coastal shipping, large pleasure craft, and industrial uses like irrigation and cooling. It features a self-priming centrifugal pump with a short circuit motor for 400 volts, cast iron construction, and stainless steel shaft. It handles contaminated and sea water up to 90°C, delivering 19,500 litres/hour at 10 meters head, but it is not ATEX certified.
- Description
- Ask a Question
-

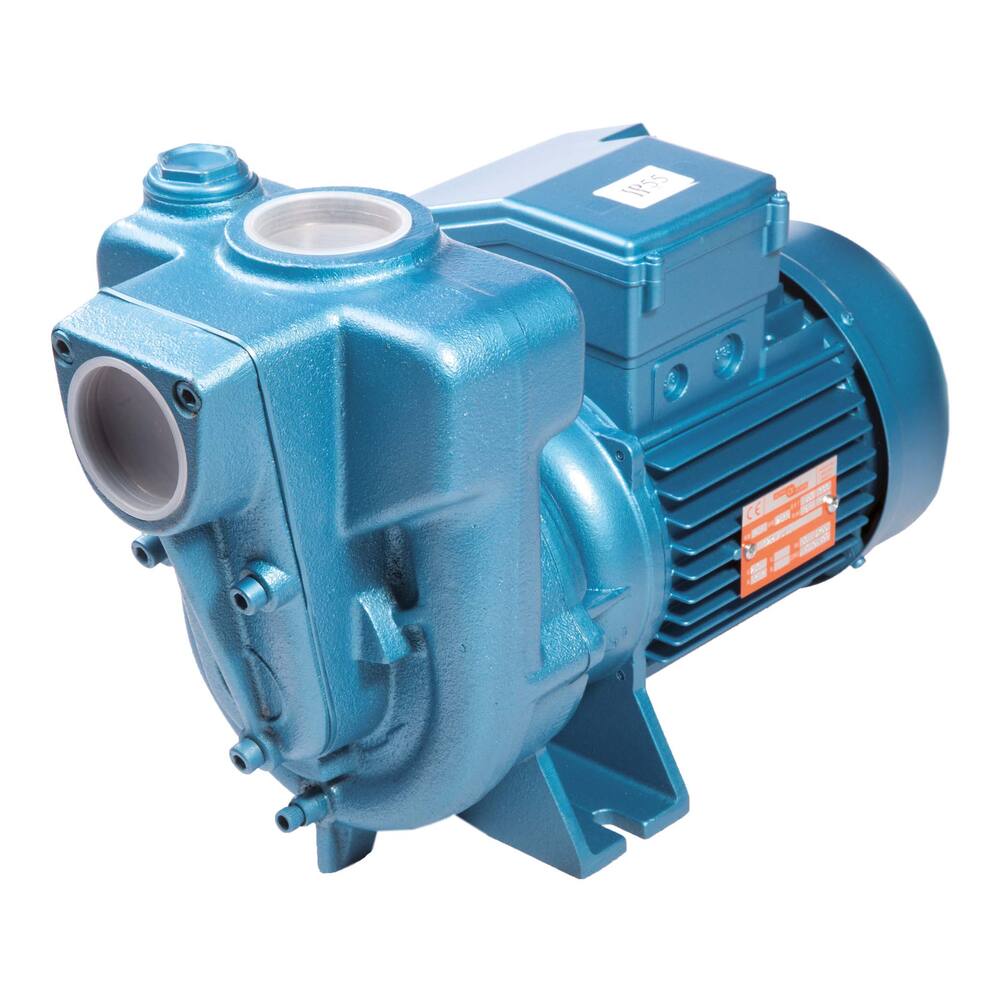

Alpha Pompe Pump 02RAS-T 1.5 HP 400V
Designed for commercial shipping, large pleasure craft, and coastal shipping, these pumps excel at deck washing and bilge pumping. They are also suitable for irrigation, sprinkling, dewatering, and industrial cooling medium applications.
- Type: 02RAS-T
- Colour: blue
- Pump type: self-priming centrifugal pump (1" model limited self-priming ±2 meters)
- Impeller type: open impeller
- Motor type: short circuit motor for 400 volt
- Fuse: inbuilt thermal safeguard only for the 230 volt motors
- Shaft seal: ceramic on carbon mechanical seal with neoprene or Viton elastomers (for gas oil)
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel AISI 420
- Liquids handled: contaminated water, sea water, etc., max temperature 90°C
- Insulation class: IP55
- Performance: 10 metres head: 19,500 litres/hour; 15 metres head: 12,000 litres/hour
- Connections: 2" internal thread
- Dimensions (LxWxH): 432 x 190 x 288 mm
- Weight: 27 kg
- Amperage: 400 V: 3.0 A
- Shaft power: 1.1 kW, 1.5 hp, 2800 rpm
- Product code: 92.11.060
- Suction head: 7.0 m
- Pipe diameter pressure: 2"
- Pipe diameter suction: 2"
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Particle size: 11 mm
- Maximum discharge head: 18.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Fuel: -
- Protection class: IP68
- Separate float switch: -
- Free flow: 21,000 L/hour
- Capacity at 5 meter: 21,000 L/hour
-
