ID
1316691
$ 1,325.09
1-2 weeks delivery time
-
+
The Alpha Pompe Pump 02RA-M 2 HP 230V suits deck wash, bilge pumping, sprinkling, irrigation, dewatering, and industrial cooling in commercial shipping and large pleasure crafts. It is a self-priming centrifugal pump with an induction motor for 230 volts, cast iron components, and stainless steel shaft. It handles contaminated and sea water up to 90°C, with a flow rate of 25,200 litres/hour at 10 meters head, and is not ATEX certified.
- Description
- Ask a Question
-

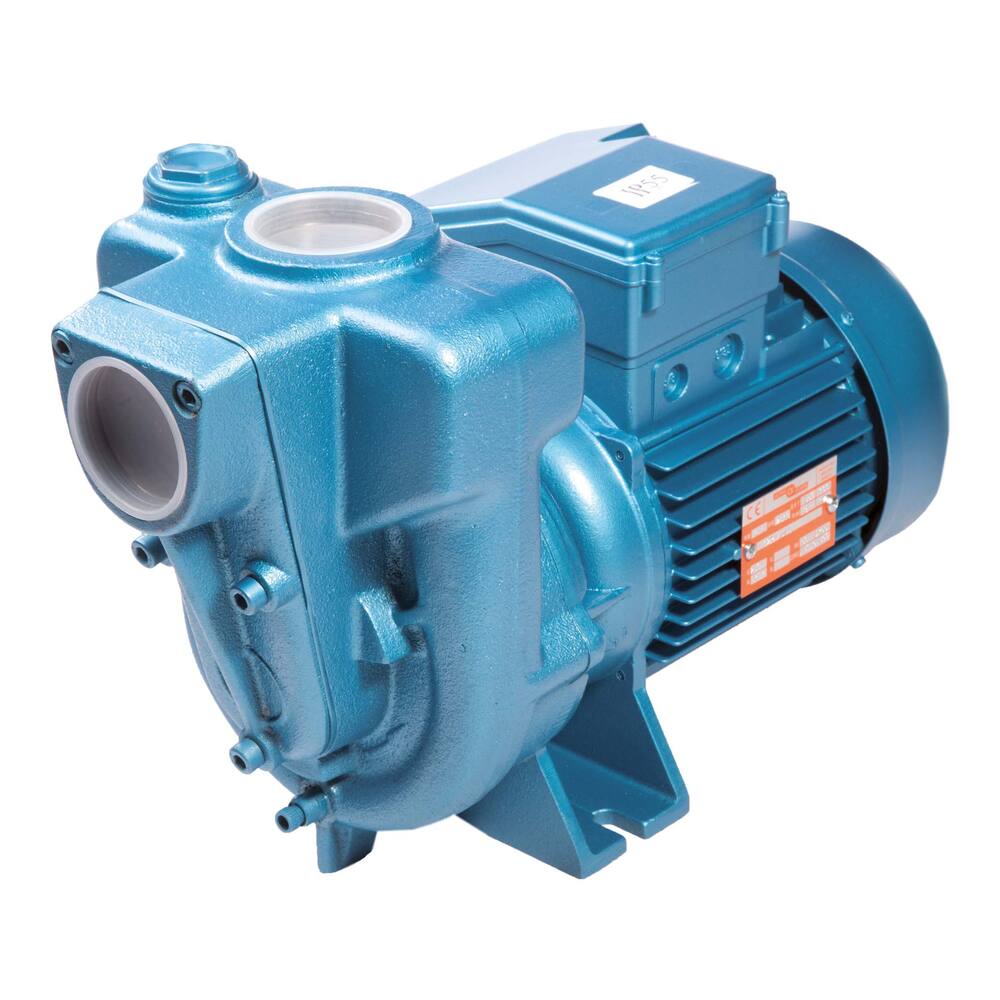

Alpha Pompe Pump 02RA-M 2 HP 230V
Ideal for deck wash, bilge pumping, sprinkling, irrigation, dewatering, and industrial cooling, this pump suits commercial shipping, large pleasure craft, and coastal shipping environments.
- Type: 02RA-M
- Colour: blue
- Pump type: self-priming centrifugal pump (1" model limited self-priming ±2 meters)
- Impeller type: open impeller
- Motor type: induction motor for 230 volt
- Fuse: inbuilt thermal safeguard only for the 230 volt motors
- Shaft seal: ceramic on carbon mechanical seal with neoprene or Viton elastomers (for gas oil)
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel AISI 420
- Liquids handled: contaminated water, sea water, etc., max temperature 90°C
- Insulation class: IP55
- Performance: 10 metres head: 25,200 litres/hour; 15 metres head: 15,900 litres/hour
- Connections: 2" internal thread
- Dimensions (LxWxH): 474 x 205 x 321 mm
- Weight: 28 kg
- Amperage: 230 V: 9.5 A
- Shaft power: 1.5 kW, 2 hp, 2800 rpm
- Product code: 92.11.070
- Suction head: 7.0 m
- Pipe diameter pressure: 2"
- Pipe diameter suction: 2"
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Particle size: 14 mm
- Maximum discharge head: 19.0 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Fuel: -
- Protection class: IP68
- ATEX: No
- Separate float switch: -
- Free flow: 27,000 L/hour
- Capacity at 5 meter: 27,000 L/hour
-
