ID
1316687
$ 3,232.04
1-2 weeks delivery time
-
+
The Alpha Pompe Pump 01.1/2RA-T 1 HP 400V ATEX is designed for deck wash and bilge duties in commercial and coastal shipping, large pleasure crafts, and various industrial uses like irrigation and cooling. It features explosion-proof construction suitable for pumping cargo residues such as petrol, with a self-priming centrifugal pump, cast iron components, and a stainless steel shaft. It handles contaminated and sea water up to 90°C, delivers up to 16,200 litres/hour at 10 meters head, and is ATEX certified for safety in explosive environments.
- Description
- Ask a Question
-

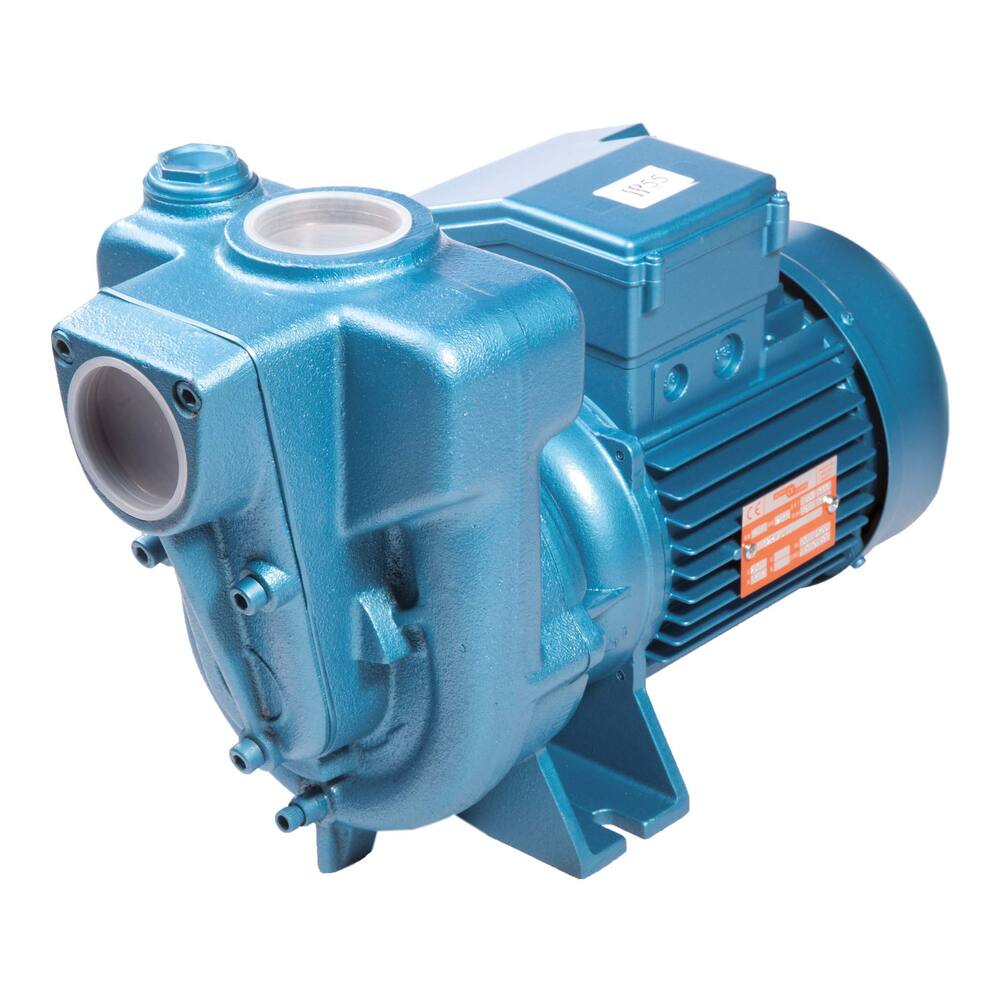

Alpha Pompe Pump 01.1/2RA-T 1 HP 400V ATEX
This version of the pump is intended for deck wash and bilge duties in commercial and coastal shipping, large pleasure crafts, as well as irrigation, sprinkling, dewatering, and industrial cooling. It features explosion-proof construction and is suitable for pumping cargo residues such as petrol.
- Type: 01½RA-T
- Colour: blue
- Pump type: self-priming centrifugal pump (1" model limited self-priming ± 2 meters)
- Impeller type: open impeller
- Motor type: short circuit motor for 400 volt
- Fuse: inbuilt thermal safeguard only for 230 volt motors
- Shaft seal: ceramic on carbon mechanical seal with neoprene or Viton elastomers (for gas oil)
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel AISI 420
- Liquids handled: contaminated water, sea water etc., max temperature 90°C
- Insulation class: IP55
- Performance:
- 10 metres head: 16,200 litres/hour
- 15 metres head: 9,000 litres/hour
- Connections: 1.1/2" internal thread
- Dimensions (L×W×H): 426 × 190 × 283 mm
- Weight: 24 kg
- Amperage: 400 V: 2.3 A
- Shaft power: 0.75 kW, 1 hp, 2800 rpm
- ATEX certification: II 2 G EEx d IIHB T5, T4, T3
- Features: Explosion proof and compression resistant motor; mechanical seal with Viton for petrol pumping
- Product code: 92.11.042
- Suction head: 7.0 m
- Pipe diameter pressure: 1.1/2"
- Pipe diameter suction: 1.1/2"
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Particle size: 9 mm
- Max discharge head: 19.0 m
- Voltage: 400 V
- Current type: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: Yes
- Free flow rate: 19,500 L/hour
- Capacity at 5 meters: 19,500 L/hour
-
