ID
1316688
$ 1,105.05
1-2 weeks delivery time
-
+
The Alpha Pompe Pump 02RAS-M 1.5 HP 230V is ideal for deck wash and bilge applications in commercial and coastal shipping and large pleasure crafts, as well as irrigation and industrial cooling. It is a self-priming centrifugal pump with an induction motor for 230 volts, cast iron parts, and a stainless steel shaft. It handles contaminated water and sea water up to 90°C, with a flow rate of 19,500 litres/hour at 10 meters head, but it does not have ATEX certification.
- Description
- Ask a Question
-

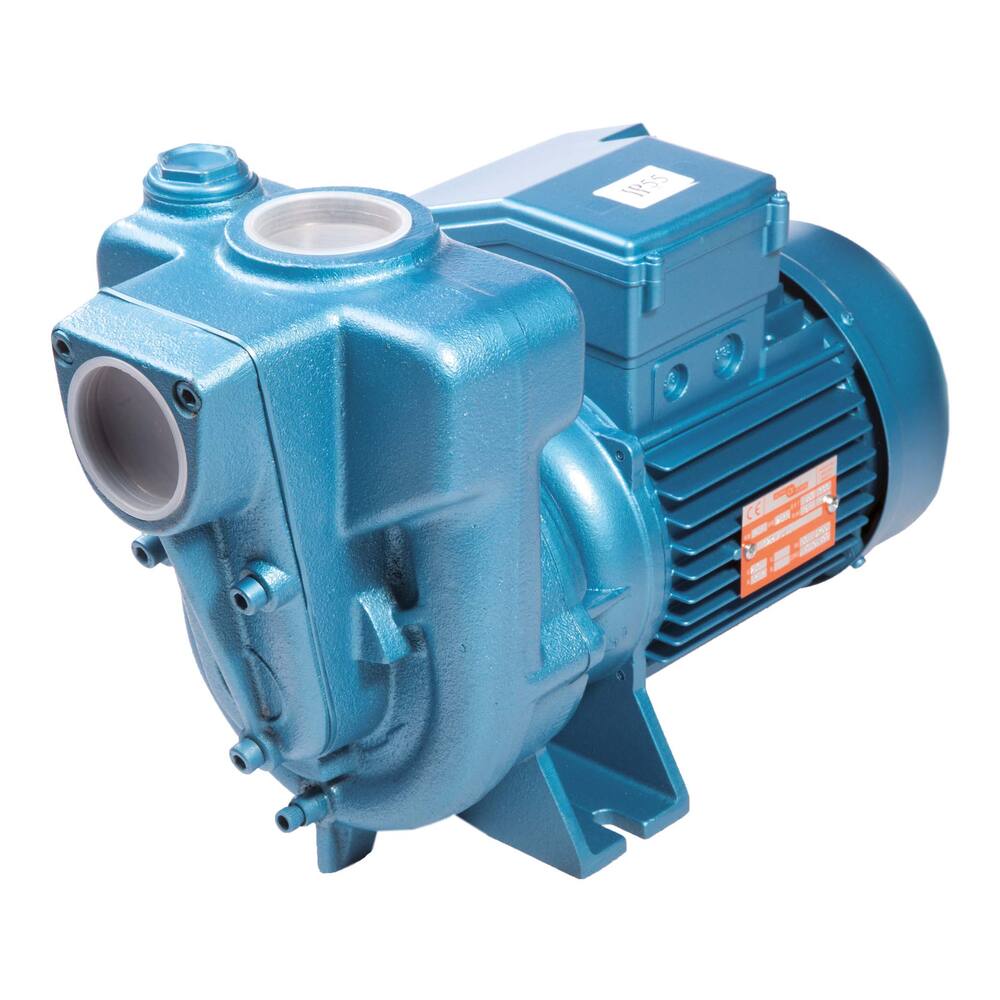

Alpha Pompe Pump 02RAS-M 1.5 HP 230V
This pump is ideal for deck wash and bilge applications in commercial and coastal shipping and large pleasure crafts. It is also suited for irrigation, sprinkling, dewatering, and use as a cooling medium pump in industrial settings.
- Type: 02RAS-M
- Colour: blue
- Pump type: self-priming centrifugal pump (1" model limited self-priming ± 2 meters)
- Impeller type: open impeller
- Motor type: induction motor for 230 volt
- Fuse: inbuilt thermal safeguard only for 230 volt motors
- Shaft seal: ceramic on carbon mechanical seal with neoprene or Viton elastomers (for gas oil)
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel AISI 420
- Liquids handled: contaminated water, sea water etc., max temperature 90°C
- Insulation class: IP55
- Performance:
- 10 metres head: 19,500 litres/hour
- 15 metres head: 12,000 litres/hour
- Connections: 2" internal thread
- Dimensions (L×W×H): 432 × 190 × 288 mm
- Weight: 27 kg
- Amperage: 230 V: 7.7 A
- Shaft power: 1.1 kW, 1.5 hp, 2800 rpm
- Product code: 92.11.050
- Suction head: 7.0 m
- Pipe diameter pressure: 2"
- Pipe diameter suction: 2"
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Particle size: 11 mm
- Max discharge head: 18.0 m
- Voltage: 230 V
- Current type: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow rate: 21,000 L/hour
- Capacity at 5 meters: 21,000 L/hour
-
