The Alpha Pompe Pump 02RA-T 2 HP 400V is intended for deck wash and bilge applications on commercial vessels, large pleasure boats, and coastal shipping, also suitable for irrigation and industrial cooling. It features a self-priming centrifugal pump with a short circuit motor for 400 volts, cast iron construction, and stainless steel shaft. It handles contaminated and sea water up to 90°C, delivers 25,200 litres/hour at 10 meters head, and is not ATEX certified.
- Description
- Ask a Question
-

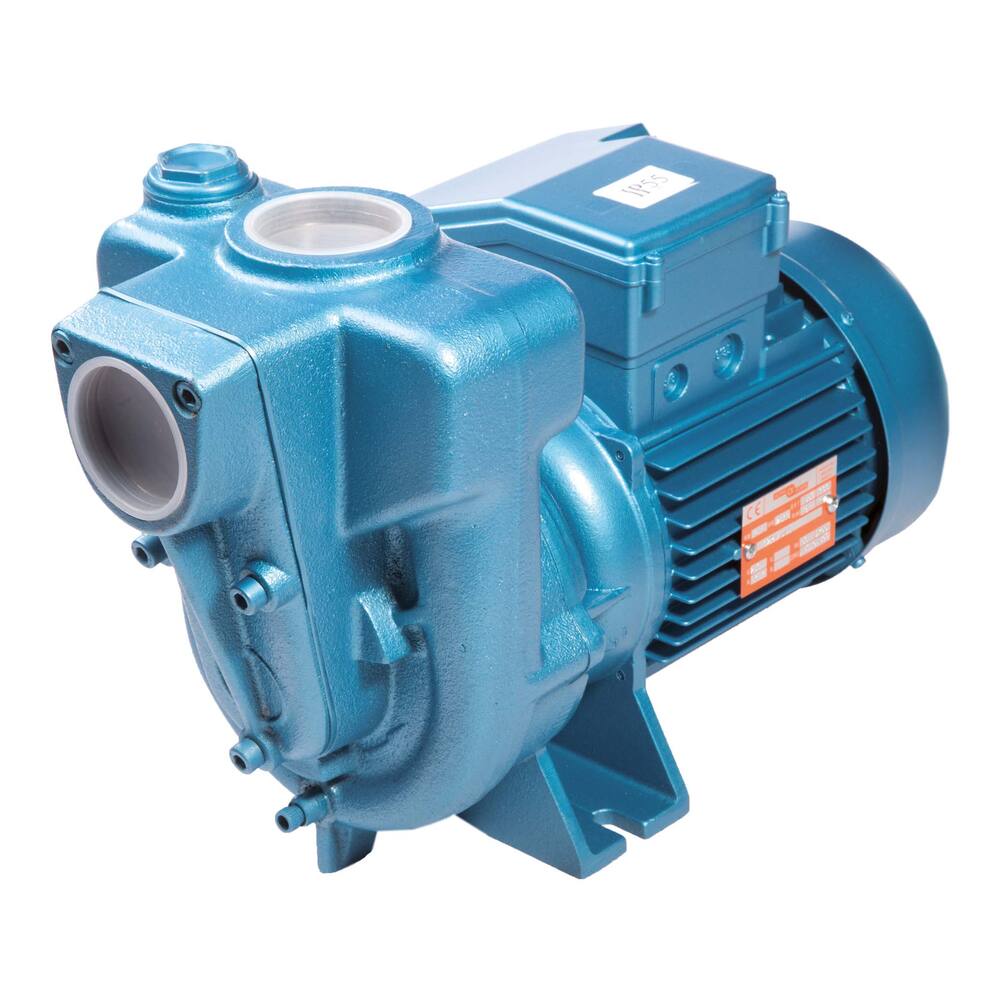

Alpha Pompe Pump 02RA-T 2 HP 400V
This pump is designed for deck wash and bilge applications on commercial vessels, large pleasure boats, and coastal shipping. It is also suitable for sprinkling, irrigation, dewatering, and industrial cooling medium pumping.
- Type: 02RA-T
- Colour: blue
- Pump type: self-priming centrifugal pump (1" model limited self-priming ± 2 meters)
- Impeller type: open impeller
- Motor type: short circuit motor for 400 volt
- Fuse: inbuilt thermal safeguard only for 230 volt motors
- Shaft seal: ceramic on carbon mechanical seal with neoprene or Viton elastomers (for gas oil)
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel AISI 420
- Liquids handled: contaminated water, sea water, etc., max temperature 90°C
- Insulation class: IP55
- Capacity at 10 m head: 25,200 litres per hour
- Capacity at 15 m head: 15,900 litres per hour
- Connections: 2" internal thread
- Dimensions (LxWxH): 474 x 205 x 321 mm
- Weight: 28 kg
- Amperage (400 V): 4.5 A
- Shaft power: 1.5 kW, 2 hp, 2800 rpm
- Product code: 92.11.080
- Suction head: 7.0 m
- Pipe diameter pressure: 2"
- Pipe diameter suction: 2"
- Dry set-up pump: self-priming
- Medium: Water
- Particle size: 14 mm
- Maximum discharge head: 19.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow: 27,000 L/hour
- Capacity at 5 meter head: 27,000 L/hour
-
