ID
1316693
$ 3,450.44
1-2 weeks delivery time
-
+
The Alpha Pompe Pump 02RA-T 2 HP 400V ATEX is an explosion-proof self-priming centrifugal pump designed for handling cargo residues like petrol on commercial and coastal vessels. It features a compression resistant motor, a mechanical seal with Viton elastomers, and is made with cast iron and stainless steel components. It operates at 400 volts with a capacity of up to 27,000 liters per hour at 5 meters head and has ATEX certification for hazardous environments.
- Description
- Ask a Question
-

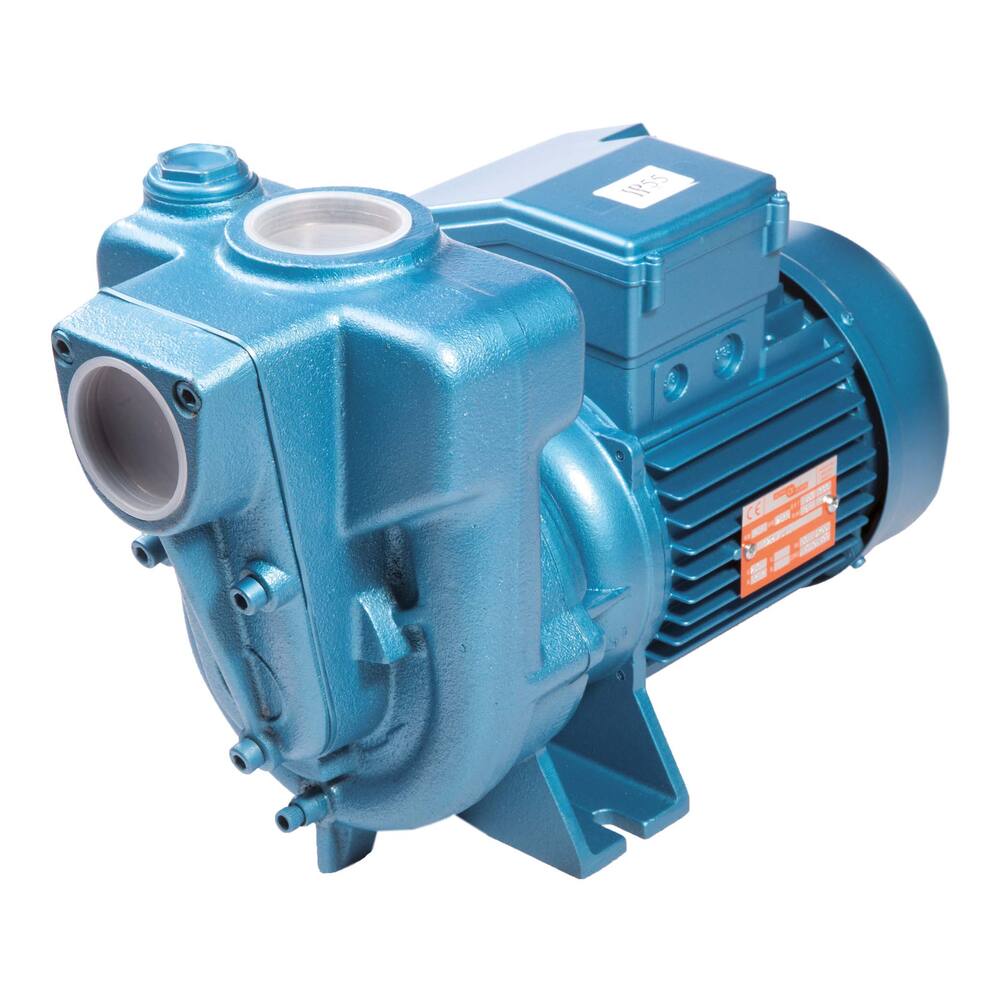

Alpha Pompe Pump 02RA-T 2 HP 400V ATEX
This version of the 02RA-T pump is equipped with explosion-proof features, making it suitable for handling cargo residues like petrol on commercial and coastal vessels. It includes a compression resistant motor and a mechanical seal with Viton for safety in hazardous environments.
- Type: 02RA-T
- Colour: blue
- Pump type: self-priming centrifugal pump (1" model limited self-priming ± 2 meters)
- Impeller type: open impeller
- Motor type: short circuit motor for 400 volt
- Fuse: inbuilt thermal safeguard only for 230 volt motors
- Shaft seal: ceramic on carbon mechanical seal with neoprene or Viton elastomers (for gas oil)
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel AISI 420
- Liquids handled: contaminated water, sea water, etc., max temperature 90°C
- Insulation class: IP55
- Capacity at 10 m head: 25,200 litres per hour
- Capacity at 15 m head: 15,900 litres per hour
- Connections: 2" internal thread
- Dimensions (LxWxH): 474 x 205 x 321 mm
- Weight: 28 kg
- Amperage (400 V): 4.5 A
- Shaft power: 1.5 kW, 2 hp, 2800 rpm
- ATEX certification: II 2 G EEx d IIHB T5, T4, T3
- Designed for cargo residues like petrol, with explosion-proof motor and Viton mechanical seal
- Product code: 92.11.082
- Suction head: 7.0 m
- Pipe diameter pressure: 2"
- Pipe diameter suction: 2"
- Dry set-up pump: self-priming
- Medium: Water
- Particle size: 14 mm
- Maximum discharge head: 19.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: Yes
- Free flow: 27,000 L/hour
- Capacity at 5 meter head: 27,000 L/hour
-
