ID
1316690
$ 3,127.73
1-2 weeks delivery time
-
+
The Alpha Pompe Pump 02RAS-T 1.5 HP 400V ATEX is designed for commercial and coastal shipping with explosion-proof features to safely pump cargo residues such as petrol. It has a self-priming centrifugal pump, short circuit motor for 400 volts, cast iron parts, and stainless steel shaft. It handles contaminated and sea water up to 90°C, delivers 19,500 litres/hour at 10 meters head, and is ATEX certified for hazardous environments.
- Description
- Ask a Question
-

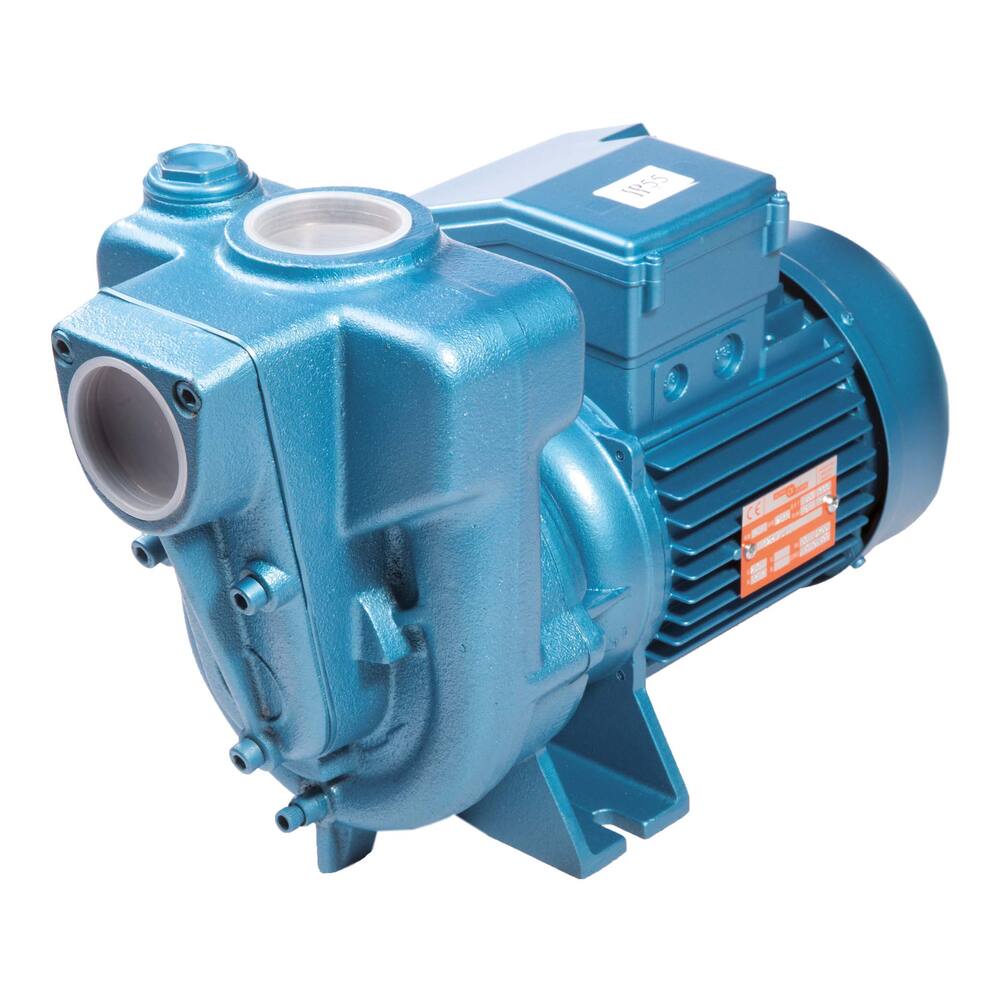

Alpha Pompe Pump 02RAS-T 1.5 HP 400V ATEX
This pump model is built for commercial and coastal shipping applications including deck wash and bilge pumping. It is also suitable for sprinkling, irrigation, dewatering, and industrial cooling. It features explosion-proof design to handle cargo residues such as petrol safely.
- Type: 02RAS-T
- Colour: blue
- Pump type: self-priming centrifugal pump (1" model limited self-priming ±2 meters)
- Impeller type: open impeller
- Motor type: short circuit motor for 400 volt
- Fuse: inbuilt thermal safeguard only for the 230 volt motors
- Shaft seal: ceramic on carbon mechanical seal with neoprene or Viton elastomers (for gas oil)
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel AISI 420
- Liquids handled: contaminated water, sea water, etc., max temperature 90°C
- Insulation class: IP55
- Performance: 10 metres head: 19,500 litres/hour; 15 metres head: 12,000 litres/hour
- Connections: 2" internal thread
- Dimensions (LxWxH): 432 x 190 x 288 mm
- Weight: 27 kg
- Amperage: 400 V: 3.0 A
- Shaft power: 1.1 kW, 1.5 hp, 2800 rpm
- ATEX certification: II 2 G EEx d IIHB T5, T4, T3
- Special features: explosion-proof, compression resistant motor, mechanical seal with Viton, suitable for petrol cargo residues
- Product code: 92.11.062
- Suction head: 7.0 m
- Pipe diameter pressure: 2"
- Pipe diameter suction: 2"
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Particle size: 11 mm
- Maximum discharge head: 18.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Fuel: -
- Protection class: IP68
- Separate float switch: -
- Free flow: 21,000 L/hour
- Capacity at 5 meter: 21,000 L/hour
-
