ID
1316686
$ 989.33
1-2 weeks delivery time
-
+
The Alpha Pompe Pump 01.1/2RA-T 1 HP 400V is designed for deck washing and bilge pumping on commercial ships and coastal vessels, also suitable for irrigation and industrial cooling. This self-priming centrifugal pump features a cast iron impeller and housing, stainless steel shaft, and a ceramic on carbon mechanical seal with neoprene or Viton elastomers, handling contaminated water and sea water up to 90°C. It delivers 16,200 liters per hour at 10 meters head, powered by a 0.75 kW motor at 2800 rpm, with IP68 protection.
- Description
- Ask a Question
-

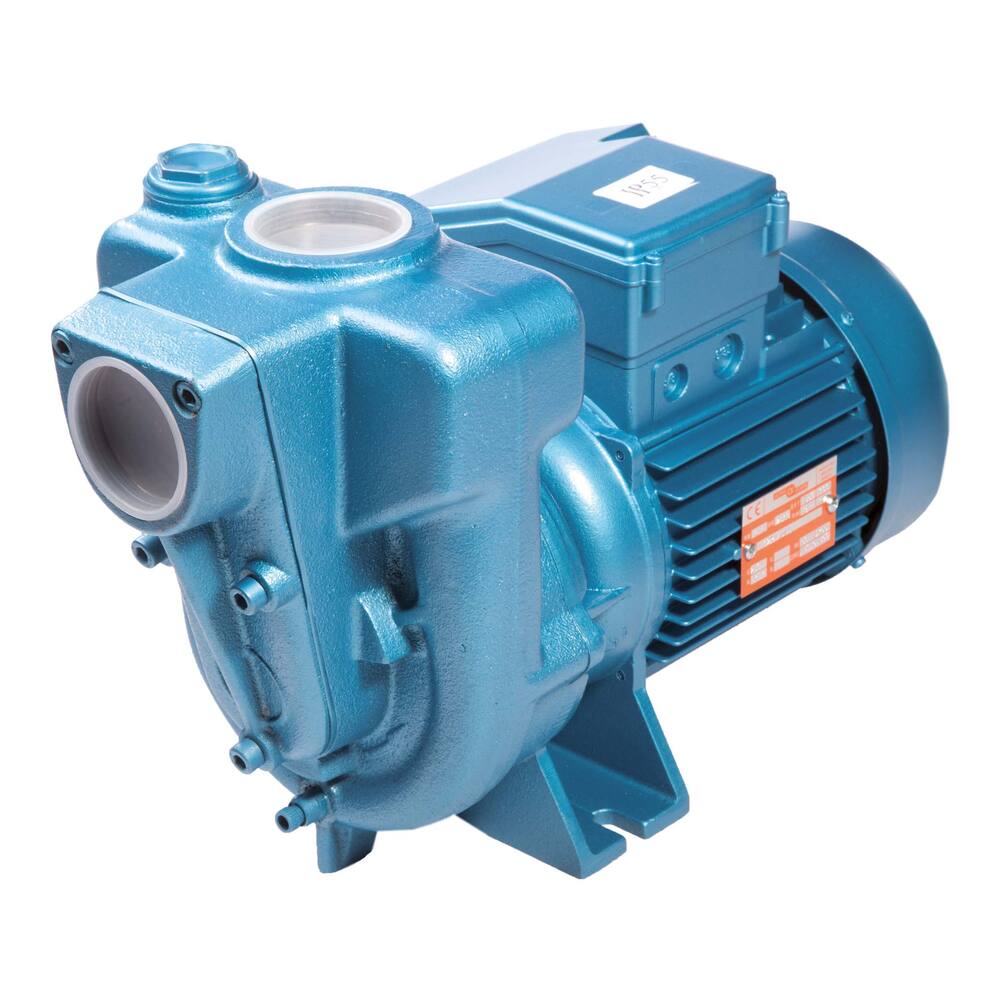

Alpha Pompe Pump 01.1/2RA-T 1 HP 400V
This pump is designed for deck washing and bilge pumping on commercial ships, large pleasure crafts, and coastal vessels. It is also suitable for irrigation, sprinkling, dewatering, and industrial cooling medium circulation.
- Type: 01½RA-T
- Colour: blue
- Pump type: self-priming centrifugal pump (1" model limited self-priming ± 2 meters)
- Impeller type: open impeller
- Motor type: short circuit motor for 400 volt
- Fuse: inbuilt thermal safeguard only for 230 volt motors
- Shaft seal: ceramic on carbon mechanical seal with neoprene or Viton elastomers (for gas oil)
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel AISI 420
- Liquids handled: contaminated water, sea water etc., max temperature 90°C
- Insulation class: IP55
- Performance:
- 10 metres head: 16,200 litres/hour
- 15 metres head: 9,000 litres/hour
- Connections: 1.1/2" internal thread
- Dimensions (L×W×H): 426 × 190 × 283 mm
- Weight: 24 kg
- Amperage: 400 V: 2.3 A
- Shaft power: 0.75 kW, 1 hp, 2800 rpm
- Product code: 92.11.040
- Suction head: 7.0 m
- Pipe diameter pressure: 1.1/2"
- Pipe diameter suction: 1.1/2"
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Particle size: 9 mm
- Max discharge head: 19.0 m
- Voltage: 400 V
- Current type: AC
- Frequency: 50 Hz
- Protection class: IP68
- Free flow rate: 19,500 L/hour
- Capacity at 5 meters: 19,500 L/hour
-
