The Alpha Pompe Pump 01RA-T 0.6 HP 400V ATEX is an ATEX certified, explosion-proof self-priming centrifugal pump ideal for deck wash, bilge, and cargo residue pumping in commercial shipping. It features a cast iron impeller and housing, stainless steel shaft, and a ceramic on carbon mechanical seal with Viton elastomers, suitable for petrol and flammable cargo residues. The pump delivers 1,500 liters per hour at 9 meters head, operates at 2800 rpm with a 0.44 kW motor, and includes explosion-proof and compression-resistant motor features.
- Description
- Ask a Question
-

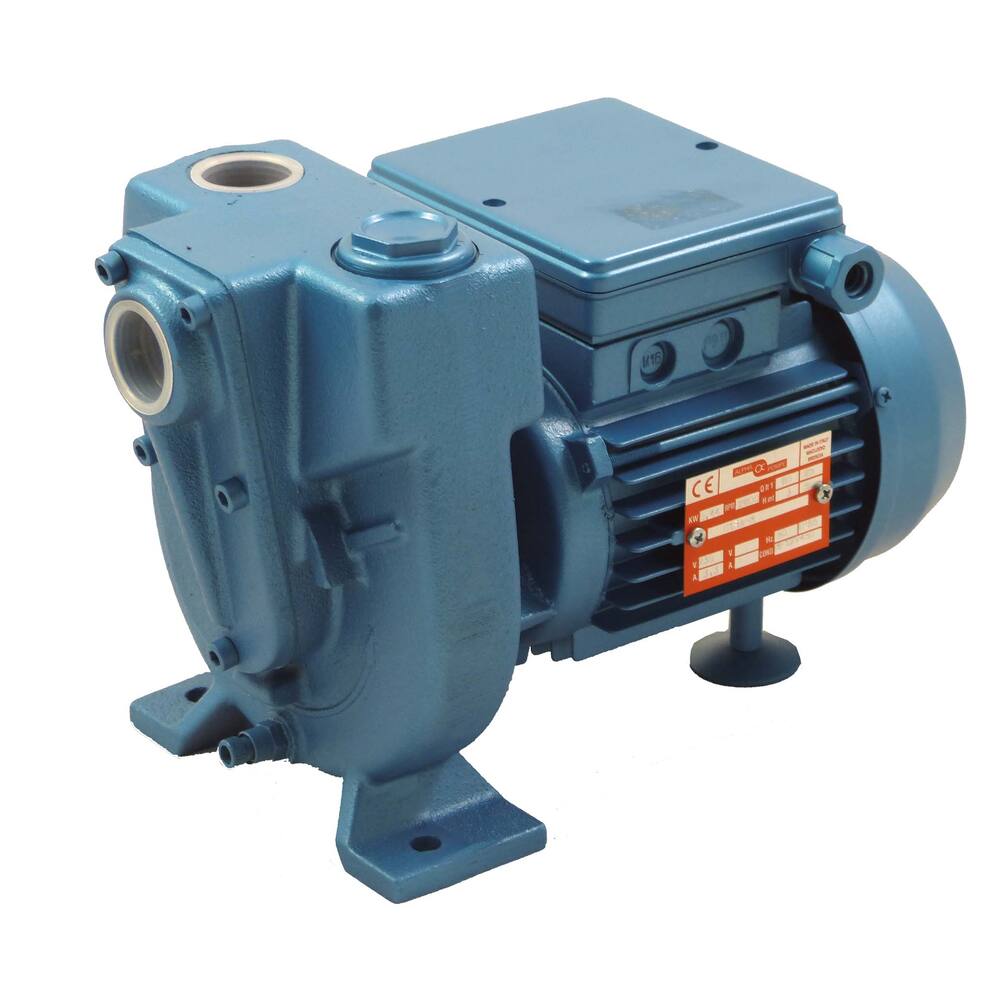

Alpha Pompe Pump 01RA-T 0.6 HP 400V ATEX
This ATEX certified pump is ideal for deck wash, bilge, and cargo residue pumping in commercial shipping and large vessels. It is explosion proof and suitable for petrol and other flammable cargo residues.
- Type: 01RA-T
- Colour: blue
- Pump type: self-priming centrifugal pump (1" model limited self-priming ± 2 meters)
- Impeller type: open impeller
- Motor type: induction motor for 230 volt and short circuit motor for 400 volt
- Fuse: inbuilt thermal safeguard for 230 volt motors only
- Shaft seal: ceramic on carbon mechanical seal with neoprene or Viton elastomers (for gas oil)
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel AISI 420
- Liquids handled: contaminated water, sea water, max temperature 90°C
- Insulation class: IP55
- Performance at 9 metres head: 1,500 litres per hour
- Connections: 1" internal thread
- Dimensions (LxWxH): 304 x 162 x 213 mm
- Weight: 11 kg
- Amperage: 230 V - 3.3 A; 400 V - 1.5 A
- Shaft power: 0.44 kW, 0.6 hp, 2800 rpm
- ATEX certification: II 2 G EEx d IIHB T5, T4, T3
- Features explosion proof and compression resistant motor plus mechanical seal with Viton
- Product code: 92.11.022
- Suction head: 2.0 m
- Pipe diameter pressure: 1"
- Pipe diameter suction: 1"
- Dry set-up pump: self-priming
- Medium: Water
- Particle size: 8 mm
- Max discharge head: 9.5 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- Free flow: 4920 L/hour
- Capacity at 5 meters: 4020 L/hour
-
