ID
1316683
$ 661.72
1-2 weeks delivery time
-
+
The Alpha Pompe Pump 01RA-T 0.6 HP 400V is designed for deck wash and bilge pumping on commercial vessels and coastal ships, also suitable for irrigation and industrial cooling. It is a self-priming centrifugal pump with a cast iron impeller and housing, stainless steel shaft, and a ceramic on carbon mechanical seal with neoprene or Viton elastomers, handling contaminated water and sea water up to 90°C. The pump delivers 1,500 liters per hour at 9 meters head, powered by a 0.44 kW motor at 2800 rpm, with IP68 protection.
- Description
- Ask a Question
-

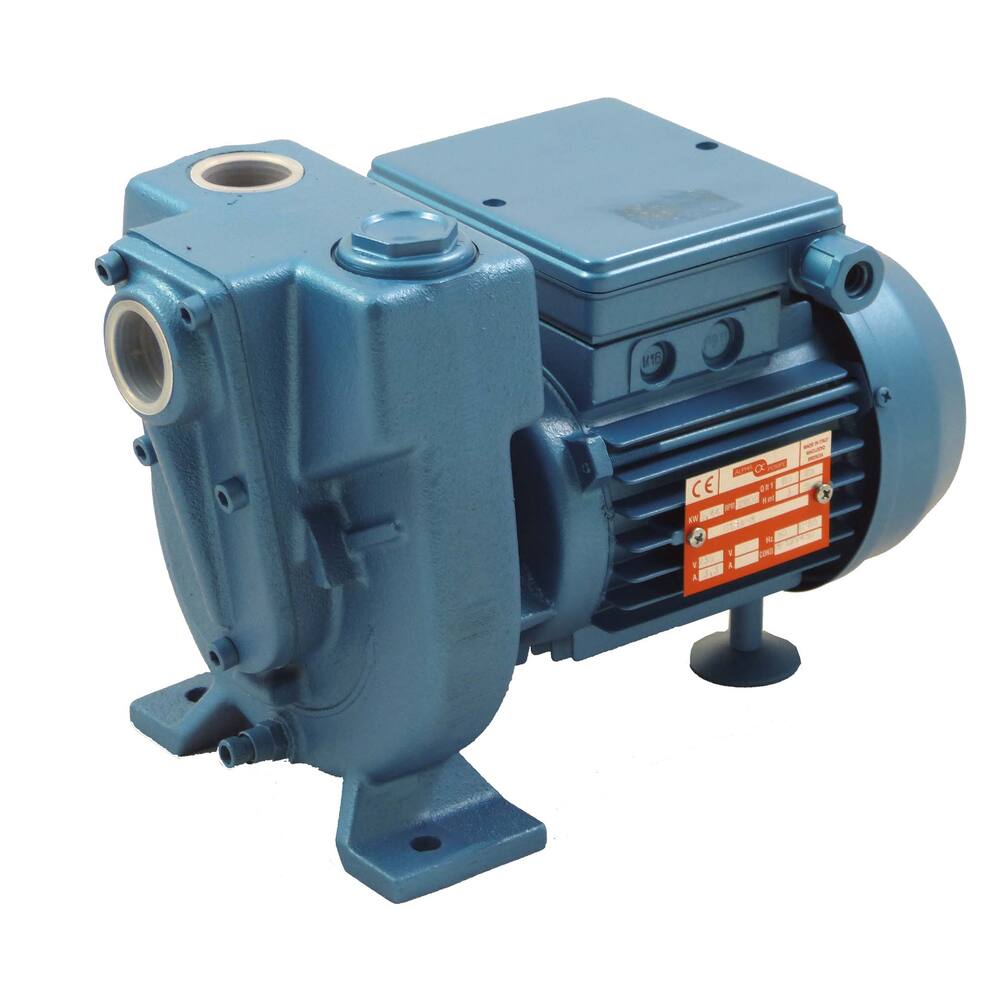

Alpha Pompe Pump 01RA-T 0.6 HP 400V
Designed for deck wash and bilge pumping on commercial vessels, large pleasure crafts, and coastal ships, this pump is also suitable for irrigation, sprinkling, dewatering, and industrial cooling applications.
- Type: 01RA-T
- Colour: blue
- Pump type: self-priming centrifugal pump (1" model limited self-priming ± 2 meters)
- Impeller type: open impeller
- Motor type: short circuit motor for 400 volt
- Fuse: inbuilt thermal safeguard for 230 volt motors only
- Shaft seal: ceramic on carbon mechanical seal with neoprene or Viton elastomers (suitable for gas oil)
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel AISI 420
- Liquids handled: contaminated water, sea water, etc., max temperature 90°C
- Insulation class: IP55
- Performance at 9 metres head: 1,500 litres per hour
- Connections: 1" internal thread
- Dimensions (LxWxH): 304 x 162 x 213 mm
- Weight: 11 kg
- Amperage (400 V): 1.5 A
- Shaft power: 0.44 kW, 0.6 hp, 2800 rpm
- Product code: 92.11.020
- Suction head: 2.0 m
- Pipe diameter pressure: 1"
- Pipe diameter suction: 1"
- Dry set-up pump: self-priming
- Medium: Water
- Particle size: 8 mm
- Max discharge head: 9.5 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- Free flow: 4920 L/hour
- Capacity at 5 meters: 4020 L/hour
-
