ID
1316685
$ 1,074.09
1-2 weeks delivery time
-
+
The Alpha Pompe Pump 01.1/2RA-M 1 HP 230V is a self-priming centrifugal pump suitable for deck wash, bilge operations, irrigation, dewatering, and industrial cooling in commercial and coastal shipping. It has a cast iron impeller and housing, stainless steel shaft, and a ceramic on carbon mechanical seal with neoprene or Viton elastomers, handling contaminated water and sea water up to 90°C. The pump delivers 16,200 liters per hour at 10 meters head, powered by a 0.75 kW motor at 2800 rpm, with an inbuilt thermal safeguard for 230 V motors.
- Description
- Ask a Question
-

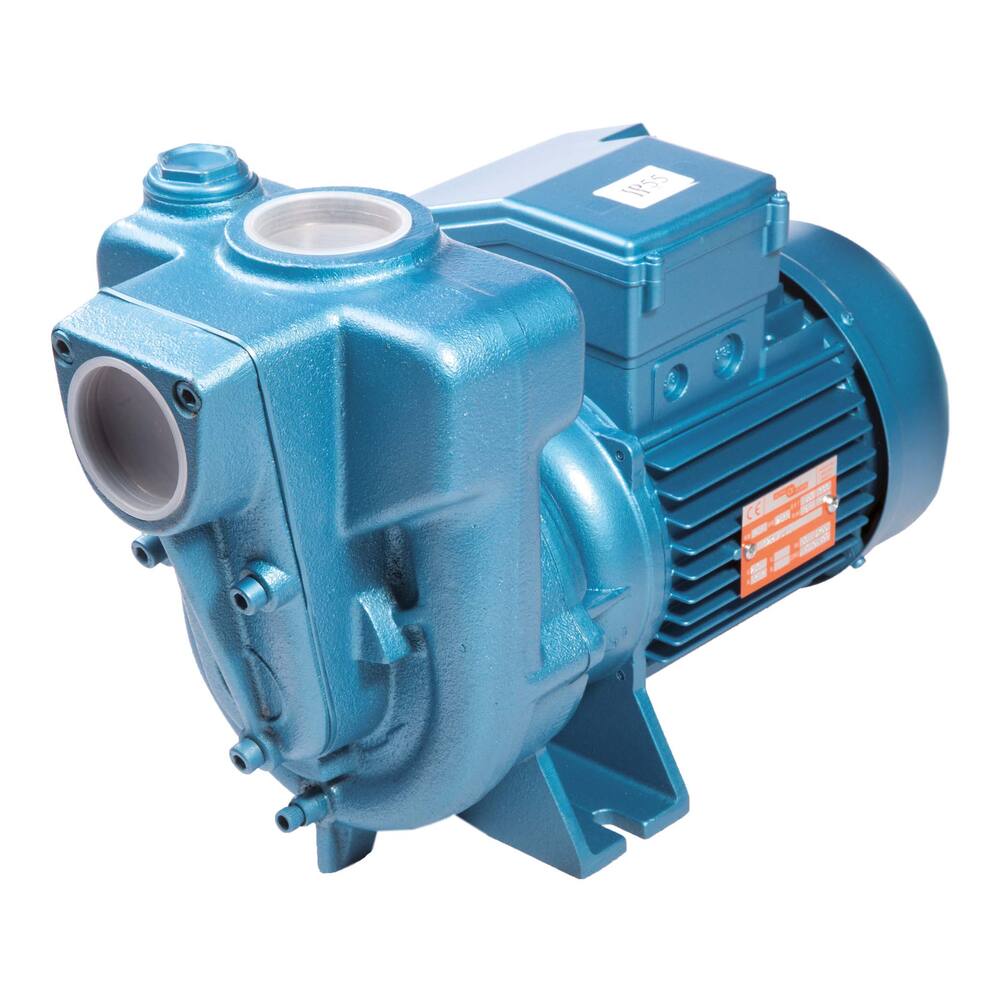

Alpha Pompe Pump 01.1/2RA-M 1 HP 230V
This pump is suitable for deck wash and bilge operations in commercial and coastal shipping, as well as for irrigation, dewatering, and industrial cooling tasks.
- Type: 01½RA-M
- Colour: blue
- Pump type: self-priming centrifugal pump (1" model limited self-priming ± 2 meters)
- Impeller type: open impeller
- Motor type: induction motor for 230 volt
- Fuse: inbuilt thermal safeguard for 230 volt motors only
- Shaft seal: ceramic on carbon mechanical seal with neoprene or Viton elastomers (for gas oil)
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel AISI 420
- Liquids handled: contaminated water, sea water, max temperature 90°C
- Insulation class: IP55
- Performance: 16,200 litres per hour at 10 metres head; 9,000 litres per hour at 15 metres head
- Connections: 1.1/2" internal thread
- Dimensions (LxWxH): 426 x 190 x 283 mm
- Weight: 24 kg
- Amperage (230 V): 6.2 A
- Shaft power: 0.75 kW, 1 hp, 2800 rpm
- Product code: 92.11.030
- Suction head: 7.0 m
- Pipe diameter pressure: 1.1/2"
- Pipe diameter suction: 1.1/2"
- Dry set-up pump: self-priming
- Medium: Water
- Particle size: 9 mm
- Max discharge head: 19.0 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- Free flow: 19,500 L/hour
- Capacity at 5 meters: 19,500 L/hour
-
