The Alpha Pompe Pump 01RA-M 0.6 HP 230V is a self-priming centrifugal pump designed for deck washing, bilge pumping, irrigation, and dewatering in commercial shipping and industrial uses. It features a cast iron impeller and housing, stainless steel shaft, and a ceramic on carbon mechanical seal with neoprene or Viton elastomers, suitable for contaminated water and sea water up to 90°C. The pump delivers 1,500 liters per hour at 9 meters head, operates at 2800 rpm with a 0.44 kW motor, and includes an inbuilt thermal safeguard for 230 V motors.
- Description
- Ask a Question
-

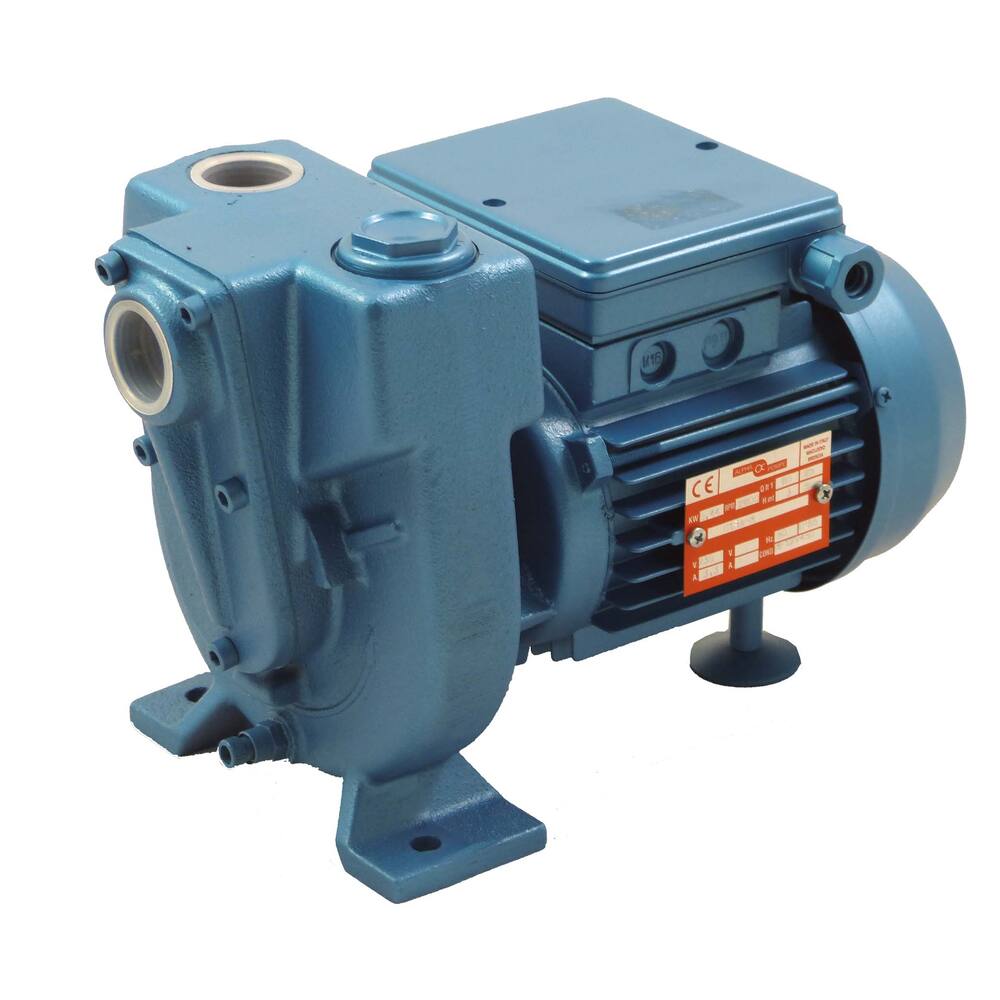

Alpha Pompe Pump 01RA-M 0.6 HP 230V
Designed for deck washing, bilge pumping, and various industrial uses such as irrigation and dewatering, this pump suits commercial shipping, large pleasure craft, and coastal shipping with efficient self-priming capability.
- Type: 01RA-M
- Colour: blue
- Pump type: self-priming centrifugal pump (1" model limited self-priming to approximately 2 meters)
- Impeller type: open impeller
- Motor type: induction motor for 230 volt
- Fuse: inbuilt thermal safeguard (only for 230 V motors)
- Shaft seal: ceramic on carbon mechanical seal with neoprene or Viton elastomers (suitable for gas oil)
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel AISI 420
- Liquids handled: contaminated water, sea water etc., max temperature 90°C
- Insulation class: IP55
- 9 metres head flow rate: 1,500 litres per hour
- Connections: 1" internal thread
- Dimensions (LxWxH): 304 x 162 x 213 mm
- Weight: 11 kg
- Amperage: 230 V: 3.3 A
- Shaft power: 0.44 kW, 0.6 hp, 2800 rpm
- ATEX certifications: II 2 G EEx d IIHB T5, T4, T3
- Designed for cargo residues such as petrol, equipped with explosion-proof and compression-resistant motor plus Viton mechanical seal
- Product code: 92.11.010
- Suction head: 2.0 m
- Pipe diameter pressure: 1"
- Pipe diameter suction: 1"
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Particle size capacity: 8 mm
- Maximum discharge head: 9.5 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow rate: 4,920 L/hour
- Capacity at 5 meters: 4,020 L/hour
-
