Fischer Panda PVK-UK iSeries Vehicle Generators 4.0–12.0 kW with Integrated Radiator

ID 1385948

$ 26,720.22

1-2 weeks delivery time

Power, W

4.0 kW
6.0 kW
12.0 kW

Item:

8.0 kVA
15.0 kVA
5.0 kVA

Fischer Panda PVK-UK iSeries is a range of compact diesel vehicle generators designed for external underfloor or under-chassis installation, with an integrated radiator and ventilation system. The series includes 5000i, 8000i and 15000i models with outputs from 4.0 kW / 5.0 kVA to 12.0 kW / 15.0 kVA, 1- to 3-cylinder configurations and operating speeds of 2800 RPM or 2200–2800 RPM depending on the model. The steel housing features a heavy single-piece metal cover, pre-installed mounting bolts and an integrated water-cooled exhaust silencer. Dimensions range from 1204 x 445 x 460 mm to 1516 x 530 x 625 mm.

Description
Ask a Question

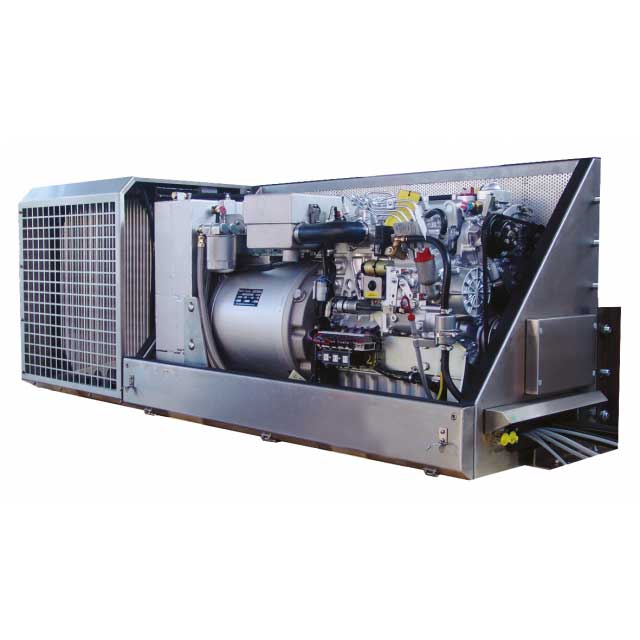

Fischer Panda PVK-UK iSeries Vehicle Generators 4.0–12.0 kW with Integrated Radiator

The Fischer Panda PVK-UK iSeries consists of compact diesel generators designed for external underfloor installation on vehicles. The generators can be mounted underneath the chassis in locations that are not protected from weather and incorporate an integrated radiator and ventilation system.

The PVK-UK housing is constructed from steel and features a heavy single-piece metal cover that can be removed for service access. Mounting bolts are pre-installed on both sides of the housing for installation on the vehicle chassis.

A water-cooled exhaust silencer is integrated into the sound insulation capsule, eliminating the need for an additional exhaust silencer. Unlike the PVK-U configuration, the PVK-UK incorporates its radiator and cooling system directly into the generator installation.

Key Features

Compact diesel generators for vehicle applications
Designed for external underfloor and under-chassis installation
Suitable for installation in areas exposed to weather
Integrated radiator and cooling system
Integrated ventilation system
Steel housing with heavy single-piece metal cover
Pre-installed mounting bolts on the housing
Wide access hatch for easier service access
Water-cooled exhaust silencer integrated into the sound insulation capsule
No additional exhaust silencer required
Approved for operation with HVO (Hydrotreated Vegetable Oil)
Complies with EN15940

Available Models

Article Number	Model	Power	RPM	Cylinders	Dimensions (L x W x H)
FPVG0301	5000i PVK-UK	4.0 kW / 5.0 kVA	2800 RPM	1	1204 x 445 x 460 mm
FPVG0302	8000i PVK-UK	6.0 kW / 8.0 kVA	2200–2800 RPM	2	1295 x 531 x 621 mm
FPVG0303	15000i PVK-UK	12.0 kW / 15.0 kVA	2200–2800 RPM	3	1516 x 530 x 625 mm
