ID
1385939
$ 22,954.42
1-2 weeks delivery time
Power, W
- 4.0 kW
- 5.5 kW
- 8.0 kW
Item:
- 12V
- 24V
Fischer Panda AGT-DC PVMV-N is a range of DC vehicle generators designed for internal installation with a separate external radiator. The series includes 12 V and 24 V configurations with outputs from 4.0 to 8.0 kW, variable engine speeds from 2200–2600 to 2400–3200 RPM, and 1-, 2- or 3-cylinder configurations. Available models range from the compact AGT-DC4000 at 750 x 420 x 420 mm to the AGT-DC8000 at 860 x 505 x 635 mm. The PVMV-N design uses a fully water-cooled silencer inside the capsule, while the external radiator can be positioned on the roof, underneath or at the side of the vehicle.
- Description
- Ask a Question
-

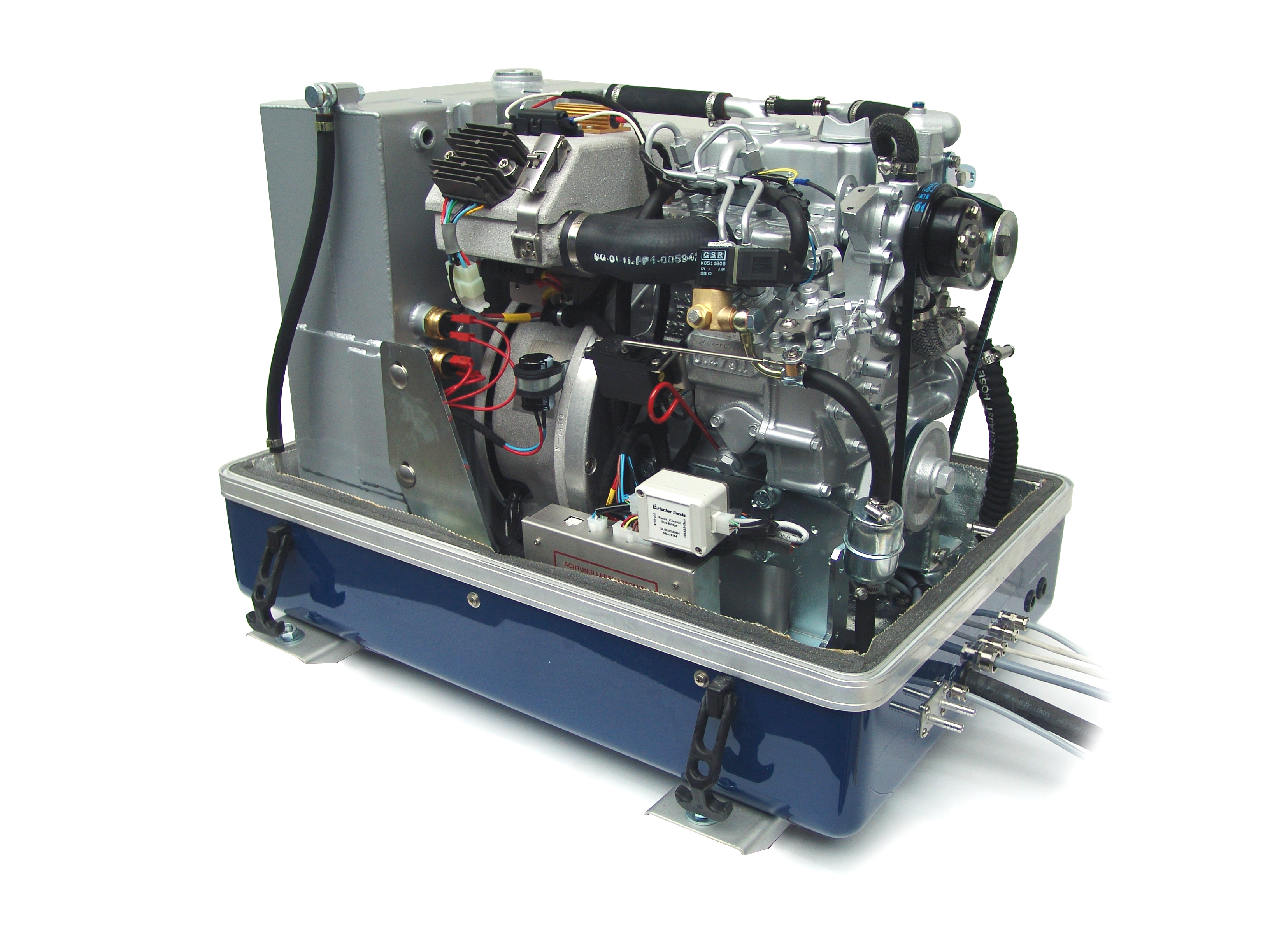

Fischer Panda AGT-DC PVMV-N Vehicle DC Generators 4.0–8.0 kW
The Fischer Panda AGT-DC PVMV-N series consists of DC generators designed for internal installation in vehicles. The range includes 12 V and 24 V versions with outputs from 4.0 to 8.0 kW and variable engine speeds according to the individual generator model.
The PVMV-N installation concept uses a separate external radiator, which can be positioned on the roof, underneath or at the side of the vehicle body. The exhaust is pre-cooled and silenced before leaving the sound insulation capsule.
Key Features
- DC vehicle generator range
- Designed for internal vehicle installation
- Separate external radiator required
- External radiator can be installed on the roof, underneath or at the side of the vehicle
- Available in 12 V and 24 V configurations
- Power output range from 4.0 to 8.0 kW
- Variable engine speed depending on model
- 1-, 2- and 3-cylinder configurations available
- Fully water-cooled silencer inside the capsule
- GRP (glass-reinforced plastic) capsule standard on models up to 12 kW
- MPL stainless-steel capsule available as an upgrade
- Approved for operation with HVO (Hydrotreated Vegetable Oil)
- Complies with EN15940
Available Models
Article Number Model Voltage Power RPM Cylinders Dimensions (L x W x H) FPVG0112 AGT-DC4000 PVMV-N 12 V 4.0 kW 2400–3000 RPM 1 750 x 420 x 420 mm FPVG0113 AGT-DC4000 PVMV-N 24 V 4.0 kW 2400–3000 RPM 1 750 x 420 x 420 mm FPVG0115 AGT-DC6000 PVMV-N 24 V 5.5 kW 2400–3200 RPM 2 760 x 515 x 609 mm FPVG0116 AGT-DC8000 PVMV-N 24 V 8.0 kW 2200–2600 RPM 3 860 x 505 x 635 mm -
