ID
1385959
$ 1,466.16
1-2 weeks delivery time
Item:
- RV1.2
- RV2.2
- RV3.2
- RV3.2 Trop
Fischer Panda RV Series DC radiators are designed for under-chassis or side mounting on vehicles where roof installation is not practical. The 24 V range includes RV1.2 DC, RV2.2 DC, RV3.2 DC and RV3.2 Trop DC versions for compatible Fischer Panda 5000i, 8000i, 10000i, 15000i, 8000x, 10000x, 15000x and AGT 5000–12000 generators. Depending on the model, dimensions range from 620 x 330 x 214 mm to 920 x 450 x 254 mm, with weights from 13 to 30 kg. Under-chassis installation requires sufficient free space and unrestricted airflow, while side mounting provides an alternative where roof space is unavailable.
- Description
- Ask a Question
-

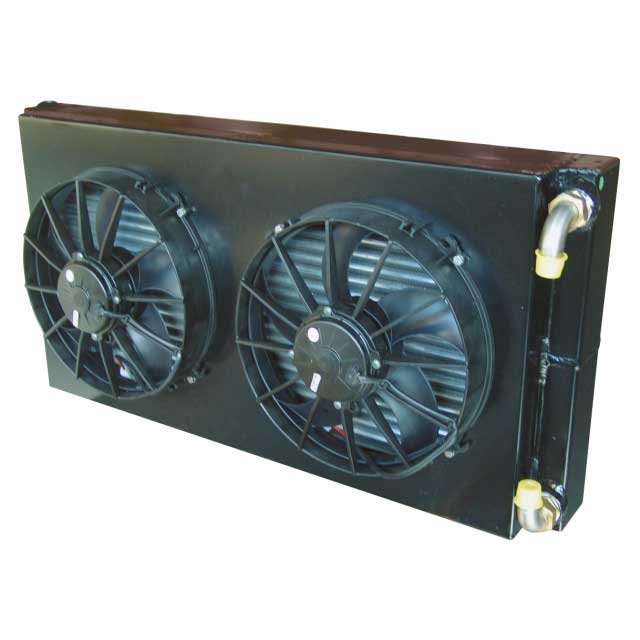

Fischer Panda RV Series DC Under/Side-Mount Radiators for Vehicle Generators
The Fischer Panda RV Series consists of 24 V DC radiators designed for under-chassis or side mounting on vehicles. The range provides an alternative to roof-mounted radiator installations and includes four versions for different Fischer Panda generator models.
For under-chassis installation, sufficient free space must be available around the radiator. Air must be able to circulate freely to prevent heated air from flowing back across the radiator. Where roof installation is not possible, the radiator can alternatively be mounted on the side of the vehicle.
Key Features
- DC radiator range for compatible Fischer Panda vehicle generators
- 24 V operating voltage
- Suitable for under-chassis mounting
- Suitable for side mounting when roof space is unavailable
- Under-chassis installation requires sufficient free space for airflow
- Available in RV1.2, RV2.2, RV3.2 and RV3.2 Trop versions
- Compatible with selected Fischer Panda iSeries, xSeries and AGT generators
Available Models
Article Number Model Compatible Generators Voltage Dimensions (L x W x H) Weight FPAC03001 RV1.2 DC 5000i 24 V 620 x 330 x 214 mm 13 kg FPAC03002 RV2.2 DC 8000i, 10000i, 8000x, 10000x, 5000 AGT, 6000 AGT 24 V 750 x 450 x 224 mm 21 kg FPAC03003 RV3.2 DC 10000i, 15000i, 10000x, 15000x, 8000 AGT, 12000 AGT 24 V 880 x 450 x 224 mm 24 kg FPAC03004 RV3.2 Trop DC 10000i, 15000i, 10000x, 15000x, 8000 AGT, 12000 AGT 24 V 920 x 450 x 254 mm 30 kg -
