Item:
- RV3.3
- RV3.3 Trop
- RV5.2
Fischer Panda RV Series AC radiators are designed for under-chassis or side mounting on vehicles and operate at 230 V / 50 Hz. The range includes RV3.3 AC, RV3.3 Trop AC and RV5.2 AC versions for compatible Fischer Panda 5000i, 8000i, 10000i, 15000i, 8000x, 10000x, 12000x and 15000x generators. Depending on the model, dimensions are 880 x 450 x 210 mm, 920 x 450 x 259 mm or 580 x 610 x 356 mm, with weights from 30 to 33 kg. Under-chassis installation requires sufficient clearance and unrestricted airflow, while side mounting can be used where roof space is unavailable.
- Description
- Ask a Question
-

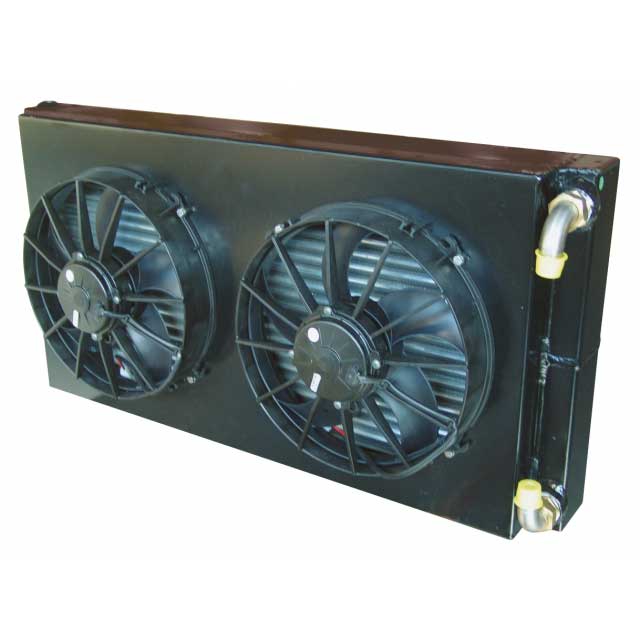

Fischer Panda RV Series AC Under/Side-Mount Radiators for Vehicle Generators
The Fischer Panda RV Series consists of 230 V / 50 Hz AC radiators designed for under-chassis or side mounting on vehicles. The range includes RV3.3 AC, RV3.3 Trop AC and RV5.2 AC versions for different Fischer Panda generator configurations.
For under-chassis installation, sufficient free space must be available around the radiator. Air must be able to circulate freely to prevent heated air from flowing back across the radiator. Where roof installation is not possible, the radiator can alternatively be mounted on the side of the vehicle.
Key Features
- AC radiator range for compatible Fischer Panda vehicle generators
- 230 V / 50 Hz operation
- Suitable for under-chassis mounting
- Suitable for side mounting when roof space is unavailable
- Under-chassis installation requires sufficient clearance and unrestricted airflow
- Available in RV3.3 AC, RV3.3 Trop AC and RV5.2 AC versions
- Compatible with selected Fischer Panda iSeries and xSeries generators
Available Models
Article Number Model Compatible Generators Voltage / Frequency Dimensions (L x W x H) Weight FPAC04001 RV3.3 AC 5000i, 8000i, 10000i, 15000i, 8000x, 10000x, 12000x, 15000x 230 V / 50 Hz 880 x 450 x 210 mm 30 kg FPAC04002 RV3.3 Trop AC 8000i, 10000i, 15000i, 8000x, 10000x, 12000x, 15000x 230 V / 50 Hz 920 x 450 x 259 mm 33 kg FPAC04003 RV5.2 AC 8000i, 10000i, 15000i, 8000x, 10000x, 12000x, 15000x 230 V / 50 Hz 580 x 610 x 356 mm 32 kg -
