Fischer Panda PVK-U iSeries Vehicle Generators 4.0–12.0 kW

ID 1385944

$ 27,407.79

1-2 weeks delivery time

Power, W

4.0 kW
6.0 kW
12.0 kW

Item:

8.0 kVA
15.0 kVA
5.0 kVA

Fischer Panda PVK-U iSeries is a range of compact diesel vehicle generators designed for external installation, including mounting underneath the vehicle floor or chassis in areas exposed to weather. The series includes 5000i, 8000i and 15000i models with outputs from 4.0 kW / 5.0 kVA to 12.0 kW / 15.0 kVA, 1- to 3-cylinder configurations and operating speeds of 2800 RPM or 2200–2800 RPM depending on the model. The generators use a steel housing with a heavy single-piece metal cover for service access, an integrated water-cooled exhaust silencer and a separate external radiator. Dimensions range from 761 x 447 x 440 mm to 910 x 530 x 600 mm.

Description
Ask a Question

Fischer Panda PVK-U iSeries Vehicle Generators 4.0–12.0 kW

The Fischer Panda PVK-U iSeries consists of compact diesel generators designed for external installation on vehicles. The units can be installed underneath the floor or chassis, including locations that are not protected from weather.

The PVK-U housing is constructed from steel and features a heavy single-piece metal cover that can be removed for service access. A water-cooled exhaust silencer is integrated into the sound insulation capsule, eliminating the need for an additional exhaust silencer. The installation requires a separate external radiator.

The range includes the 5000i, 8000i and 15000i PVK-U models with outputs from 4.0 kW / 5.0 kVA to 12.0 kW / 15.0 kVA. Depending on the model, the generators use 1-, 2- or 3-cylinder configurations and operate at 2800 RPM or within a 2200–2800 RPM range.

Key Features

Compact diesel generators for vehicle applications
Designed for external installation
Suitable for installation underneath the vehicle floor or chassis

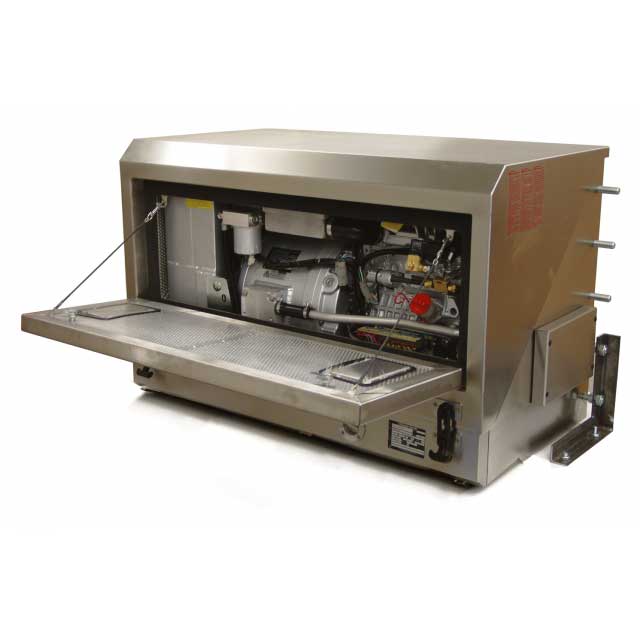

Steel housing with heavy single-piece metal cover
Removable cover provides access for servicing
Mounting bolts pre-installed on the housing
Wide access hatch for easier service access
Water-cooled exhaust silencer integrated into the sound insulation capsule
No additional exhaust silencer required
Requires an external radiator
MPL stainless-steel capsule available
Approved for operation with HVO (Hydrotreated Vegetable Oil)
Complies with EN15940

Available Models

Article Number	Model	Power	RPM	Cylinders	Dimensions (L x W x H)
FPVG0201	5000i PVK-U	4.0 kW / 5.0 kVA	2800 RPM	1	761 x 447 x 440 mm
FPVG0202	8000i PVK-U	6.0 kW / 8.0 kVA	2200–2800 RPM	2	780 x 530 x 620 mm
FPVG0203	15000i PVK-U	12.0 kW / 15.0 kVA	2200–2800 RPM	3	910 x 530 x 600 mm
