Fischer Panda iSeries PMS is a range of variable-speed marine AC generators covering outputs from 4.0 kW / 5.0 kVA to 48.0 kW / 60.0 kVA. The generator speed automatically adapts to electrical load, with model-dependent operating ranges from 1400–2600 RPM up to 2200–3600 RPM. The series includes 1-, 2-, 3- and 4-cylinder models, 230 V and 400 V configurations, and dimensions from 422 x 450 x 508 mm to 1430 x 720 x 880 mm. Variable-speed operation is designed to reduce fuel consumption, noise and emissions while allowing a more compact generator design, and multiple iSeries generators can be connected in parallel for peak power requirements and load distribution.
- Description
- Ask a Question
-
Fischer Panda iSeries PMS Variable Speed Marine AC Generators 4–48 kW
The Fischer Panda iSeries PMS range consists of variable-speed marine AC generators designed to adjust engine speed according to the electrical load. Unlike conventional generators operating at fixed speeds, the iSeries system varies engine speed to maintain appropriate engine loading and improve overall operating efficiency.
Variable-speed operation provides lower fuel consumption, longer service intervals, quieter operation and longer engine life. It also allows the generators to be smaller and lighter than conventional fixed-speed sets while helping to reduce emissions.
The range covers power outputs from 4.0 kW / 5.0 kVA to 48.0 kW / 60.0 kVA and includes 1-, 2-, 3- and 4-cylinder configurations. Depending on the model, 230 V and 400 V versions are available.
Key Features
- Variable-speed technology adjusts engine speed according to electrical load
- Power range from 4.0 kW / 5.0 kVA to 48.0 kW / 60.0 kVA
- Reduced fuel consumption compared with fixed-speed operation
- Quieter operation and longer service intervals
- Compact and lightweight generator design
- Reduced emissions
- 1-, 2-, 3- and 4-cylinder models available
- 230 V and 400 V configurations available depending on model
- Multiple iSeries generators can be connected in parallel for peak power requirements, weight distribution and load sharing
- 120 V / 60 Hz options are also available
Available Models

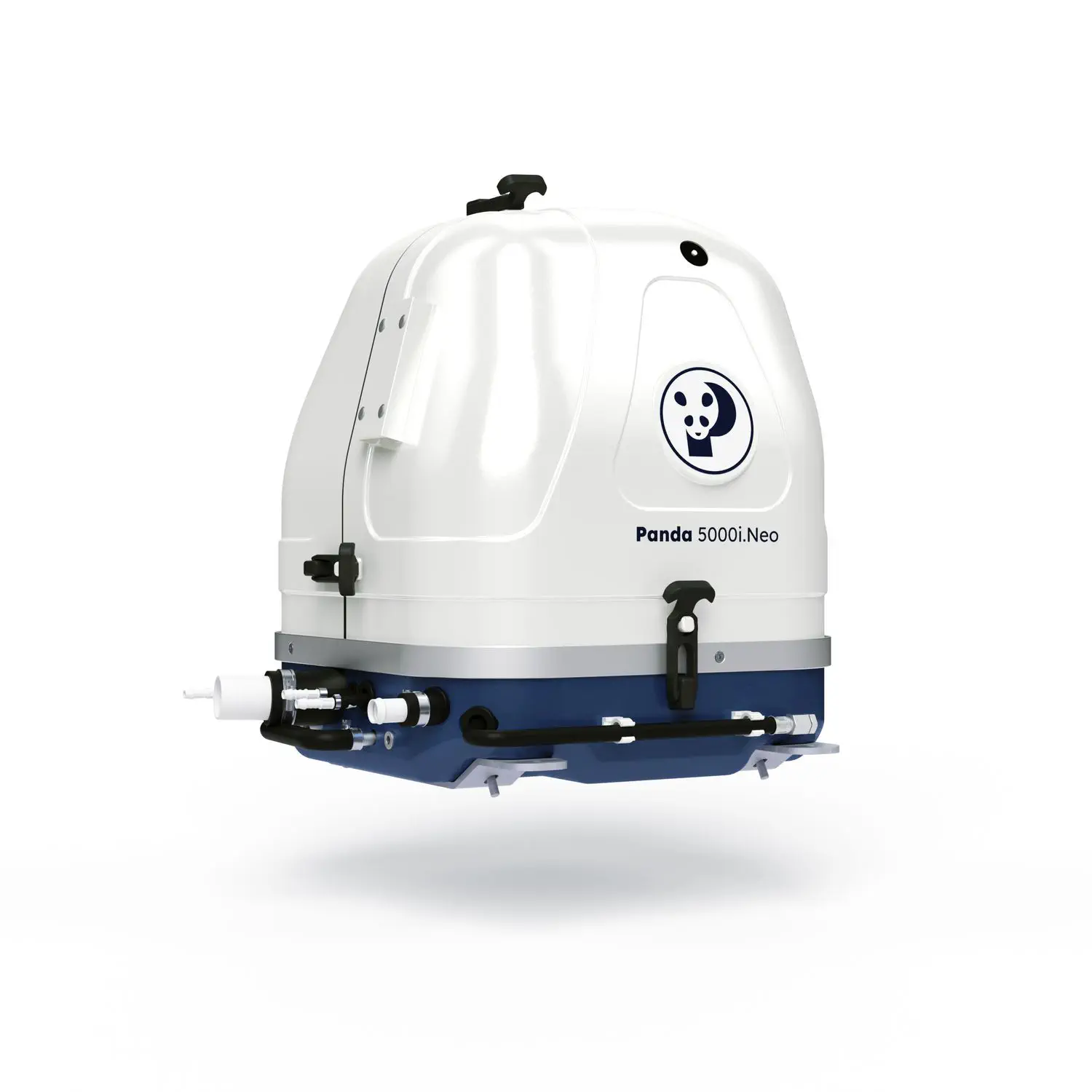

Article Number Model Voltage Power RPM Range Cylinders Dimensions (L x W x H) FPMA1012 5000i.Neo PMS - 4.0 kW / 5.0 kVA 2200–3000 RPM 1 422 x 450 x 508 mm FPMA1002 8000i PMS - 6.0 kW / 8.0 kVA 2200–2800 RPM 2 520 x 440 x 550 mm FPMA1005 10000i PMS - 8.0 kW / 10.0 kVA 2200–2800 RPM 2 536 x 470 x 555 mm FPMA1004 15000i PMS 230 V 12.0 kW / 15.0 kVA 2200–2800 RPM 2 640 x 445 x 590 mm FPMA1004-3F 15000i PMS 400 V 12.0 kW / 15.0 kVA 2200–2800 RPM 3 840 x 563 x 664 mm FPMA1006 19i PMS 230 V 15.0 kW / 19.0 kVA 2200–3600 RPM 3 650 x 465 x 582 mm FPMA1007 25i PMS 230 V 20.0 kW / 25.0 kVA 2200–2800 RPM 3 840 x 563 x 664 mm FPMA1008 25i PMS 400 V 20.0 kW / 25.0 kVA 2200–2800 RPM 3 840 x 563 x 664 mm FPMA1101 45i PMS 400 V 36.0 kW / 45.0 kVA 1500–2700 RPM 4 1130 x 790 x 832 mm FPMA1102 60i PMS 400 V 48.0 kW / 60.0 kVA 1400–2600 RPM 4 1430 x 720 x 880 mm -
