Fischer Panda RD Series DC Roof-Mount Radiators for Vehicle Generators

ID 1385952

$ 1,837.64

1-2 weeks delivery time

Item:

RD1.2
RD2.2
RD3.2 Trop

Fischer Panda RD Series DC radiators are roof-mount cooling units for compatible Fischer Panda vehicle generators, designed for installation where unrestricted fresh-air circulation is available. The range includes RD1.2 DC, RD2.2 DC and RD3.2 Trop DC models, all operating at 24 V, with dimensions from 705 x 390 x 310 mm to 1055 x 515 x 361 mm and weights from 18 to 40 kg. Depending on the version, compatibility covers Fischer Panda 5000i, 8000i, 10000i, 8000x, 10000x, 15000i, 15000x and AGT 5000–12000 generator models. Each radiator incorporates an integrated expansion tank.

Description
Ask a Question

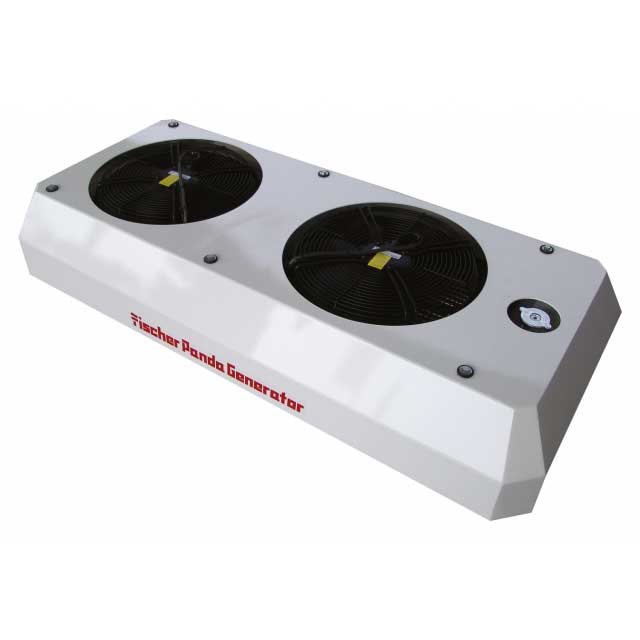

Fischer Panda RD Series DC Roof-Mount Radiators for Vehicle Generators

The Fischer Panda RD Series consists of 24 V DC radiators designed for cooling compatible Fischer Panda vehicle generators. The radiators should be installed in a location that provides unrestricted fresh-air circulation, with horizontal installation on the vehicle roof specified as the preferred position.

Each radiator incorporates an integrated expansion tank. The range includes three versions with different dimensions, weights and generator compatibility: RD1.2 DC, RD2.2 DC and RD3.2 Trop DC.

Key Features

DC radiator range for compatible Fischer Panda vehicle generators
Designed for roof mounting
Horizontal roof installation provides access to fresh-air circulation
Integrated expansion tank
24 V operating voltage
Three radiator versions available for different generator models

Available Models

Article Number	Model	Compatible Generators	Voltage	Dimensions (L x W x H)	Weight
FPAC01001	RD1.2 DC	5000i	24 V	705 x 390 x 310 mm	18 kg
FPAC01002	RD2.2 DC	8000i, 10000i, 8000x, 10000x, 5000 AGT, 6000 AGT	24 V	930 x 515 x 321 mm	29 kg
FPAC01004	RD3.2 Trop DC	10000i, 15000i, 10000x, 15000x, 8000 AGT, 12000 AGT	24 V	1055 x 515 x 361 mm	40 kg
