ID
1385920
$ 19,892.96
1-2 weeks delivery time
Power, W
- 4.0 kW
- 4.8 kW
- 6.0 kW
- 9.1 kW
- 10.9 kW
- 12.7 kW
- 17.9 kW
- 21.9 kW
Item:
- 3.2 kVA 12V PMS
- 3.2 kVA 24V PMS
- 3.8 kVA
- 4.8 kVA
- x kVA
Fischer Panda AGT-DC PMS is a range of marine DC generators designed for battery charging, hybrid power systems and electric propulsion applications. The series covers outputs from 4.0 kW to 21.9 kW, with 1-, 2-, 3- and 4-cylinder configurations and variable engine speeds from 2200–2600 RPM up to 2400–3200 RPM depending on the model. Available configurations include 12 V, 24 V and 48 V models, with dimensions ranging from 595 x 390 x 395 mm to 980 x 600 x 700 mm. The AGT system controls generator charging current directly through engine speed and includes automatic start functionality. The generator range is approved for HVO fuel and complies with EU EN15940 requirements.
- Description
- Ask a Question
-

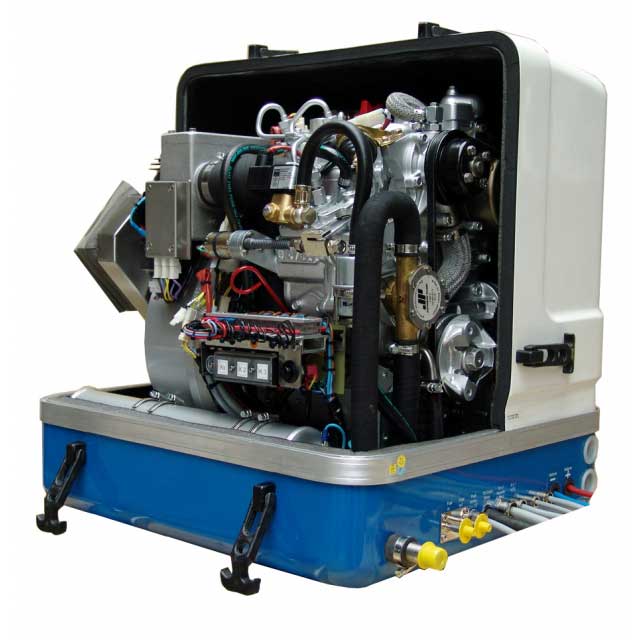

Fischer Panda AGT-DC PMS Marine DC Generators 4.0–21.9 kW
The Fischer Panda AGT-DC PMS series consists of marine DC generators developed for battery charging, hybrid power systems and electric propulsion applications. The range covers generator outputs from 4.0 kW to 21.9 kW with 1-, 2-, 3- and 4-cylinder configurations.
The Advanced Generator Technology (AGT) system controls generator charging current directly through engine speed. This allows the engine to drive the battery charging process efficiently according to system requirements. Automatic start functionality is integrated as standard, allowing the battery condition to determine when and for how long the generator operates.
The AGT system has been used as a battery charging source in hybrid power systems for more than 20 years and can also be used as a range extender for electric propulsion systems. The complete Fischer Panda generator range is approved for operation with HVO (Hydrotreated Vegetable Oil) and complies with the EU EN15940 standard.
Key Features
- DC generator range for marine applications
- Designed for battery charging, hybrid power systems and electric propulsion
- Generator output range from 4.0 kW to 21.9 kW
- Engine speed varies according to generator charging requirements
- Automatic start functionality integrated as standard
- 1-, 2-, 3- and 4-cylinder configurations available
- 12 V, 24 V and 48 V versions available on specified models
- Suitable for use as a range extender for electric propulsion systems
- Approved for HVO (Hydrotreated Vegetable Oil)
- Complies with EU EN15940
Available Models
Article Number Model Voltage Power RPM Range Cylinders Dimensions (L x W x H) FPMA5001 AGT-DC 4000 PMS 12 V 4.0 kW / 3.2 kVA 2400–3000 RPM 1 595 x 390 x 395 mm FPMA5002 AGT-DC 4000 PMS 24 V 4.0 kW / 3.2 kVA 2400–3000 RPM 1 595 x 390 x 395 mm FPMA5003 AGT-DC 6000 PMS 48 V 4.8 kW / 3.8 kVA 2400–3200 RPM 2 560 x 510 x 584 mm FPMA5005 AGT-DC 8000 PMS 48 V 6.0 kW / 4.8 kVA 2200–2600 RPM 3 655 x 505 x 600 mm FPMA5007 AGT-DC 11000 PMS - 10.9 kW 2300–2900 RPM 3 660 x 580 x 616 mm FPMA5008 AGT-DC 13000 PMS - 12.7 kW 2400–3000 RPM 3 760 x 515 x 613 mm FPMA5009 AGT-DC 18000 PMS - 17.9 kW 2400–3000 RPM 4 870 x 540 x 675 mm FPMA5010 AGT-DC 22000 PMS - 21.9 kW 2400–3000 RPM 4 980 x 600 x 700 mm -
