Fischer Panda PVMV-N Vehicle Generators 4.0–12.7 kW

ID 1385931

$ 23,511.56

1-2 weeks delivery time

Power, W

4.0 kW
6.0 kW
6.8 kW
8.0 kW
10.2 kW
12.0 kW
12.7 kW

Item:

8.0 kVA
12.0 kVA
15.0 kVA
5.0 kVA
9.0 kVA

Fischer Panda PVMV-N is a range of vehicle generators designed for internal installation with a separate external radiator. The series includes variable-speed iSeries models and fixed-speed xControl models, covering outputs from 4.0 kW / 5.0 kVA to 12.7 kW / 15.0 kVA with 1-, 2- and 3-cylinder configurations. Depending on the model, operating speeds range from 2200–2800 RPM or fixed 3000 RPM, with the 5000i rated at 2800 RPM. The generators feature a fully water-cooled silencer inside the capsule, while GRP capsules are standard on models up to 12 kW and an MPL stainless-steel capsule is available as an upgrade. The range is approved for HVO fuel and complies with EN15940.

Description
Ask a Question

Fischer Panda PVMV-N Vehicle Generators 4.0–12.7 kW

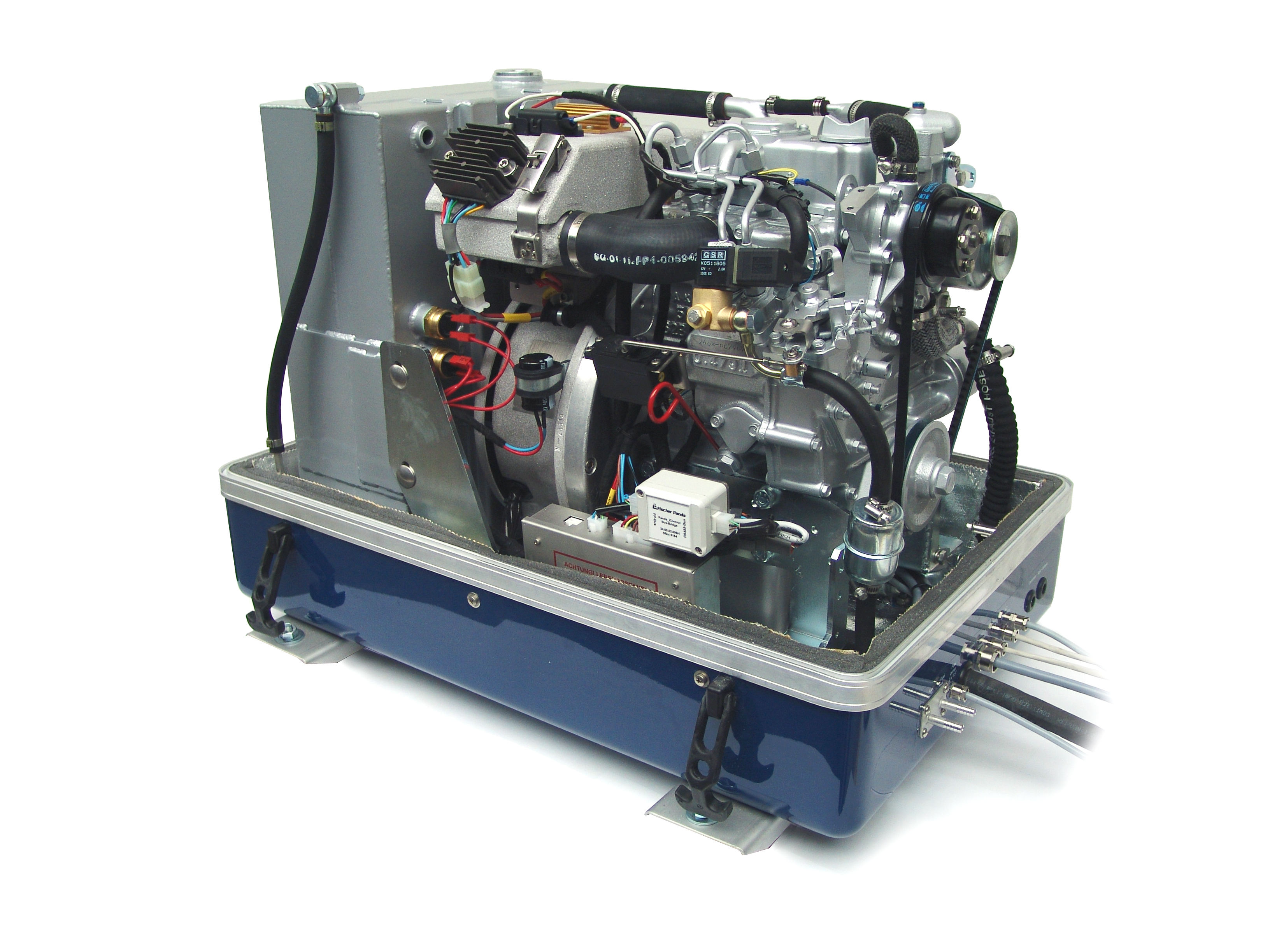

The Fischer Panda PVMV-N series consists of generators designed for internal installation in vehicles with a separate external radiator. The radiator can be positioned on the roof, underneath the vehicle or on the side of the vehicle body. The exhaust is pre-cooled and silenced before leaving the sound insulation capsule.

The range includes variable-speed Panda iSeries generators and fixed-speed Panda xControl generators, with outputs from 4.0 kW / 5.0 kVA to 12.7 kW / 15.0 kVA. Available configurations include 1-, 2- and 3-cylinder models.

Key Features

Designed for internal vehicle installation
Separate external radiator
External radiator can be installed on the roof, underneath or on the side of the vehicle
Fully water-cooled silencer inside the capsule
GRP (glass-reinforced plastic) capsule standard on models up to 12 kW
MPL stainless-steel capsule available as an upgrade
Variable-speed iSeries and fixed-speed xControl models available
Multiple voltages and frequencies available
Approved for operation with HVO (Hydrotreated Vegetable Oil)
Complies with EN15940

Available Models

Article Number	Model	Power	RPM	Cylinders	Dimensions (L x W x H)
FPVG0101	5000i PVMV-N	4.0 kW / 5.0 kVA	2800 RPM	1	750 x 420 x 420 mm
FPVG0102	8000i PVMV-N	6.0 kW / 8.0 kVA	2200–2800 RPM	2	760 x 515 x 609 mm
FPVG0103	15000i PVMV-N	12.0 kW / 15.0 kVA	2200–2800 RPM	3	910 x 515 x 619 mm
FPVG0104	8000x PVMV-N	6.8 kW / 8.0 kVA	3000 RPM	2	865 x 515 x 635 mm
FPVG0105	10000x PVMV-N	8.0 kW / 9.0 kVA	3000 RPM	2	910 x 515 x 630 mm
FPVG0106	12000x PVMV-N	10.2 kW / 12.0 kVA	3000 RPM	3	950 x 515 x 625 mm
FPVG0107	15000x PVMV-N	12.7 kW / 15.0 kVA	3000 RPM	3	950 x 515 x 625 mm
