ID
1400916
$ 17.29
1-2 weeks delivery time
Shaft Diameter:
- 25
- 30
- 35
- 40
- 45
- 50
Item:
- 250 g
- 310 g
- 280 g
- 440 g
- 470 g
- 710 g
Vetus SAR zinc shaft ring anodes for cathodic protection of marine propeller shafts in salt and brackish water. The split ring design allows direct installation around metric shafts from Ø25 to Ø50 mm. Available models have outside diameters from 65 to 89 mm, heights from 18 to 25 mm and zinc weights from 0.25 to 0.71 kg.
- Description
- Ask a Question
-

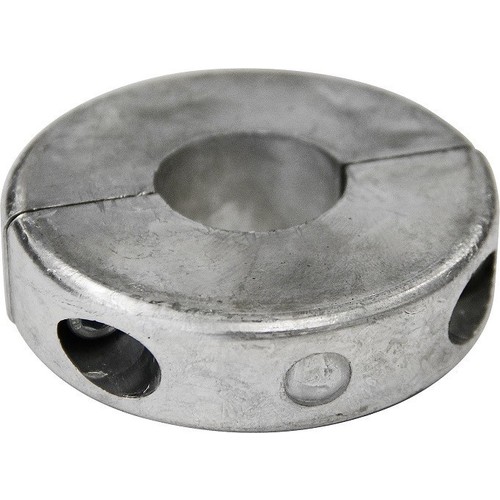

Vetus SAR Zinc Shaft Ring Anodes – Ø25–50 mm
The Vetus SAR zinc shaft ring anodes are sacrificial anodes designed for direct installation on marine propeller shafts. Their split ring construction allows the anode to be fitted around the shaft without removing the shaft assembly.
The range covers metric propeller shafts from Ø25 to Ø50 mm. Each size has a matching internal diameter together with specific outside diameter, height and zinc weight.
Available Models
Product Code Shaft I.D. Outside Diameter Height Net Weight SAR25Z 25 mm 65 mm 18 mm 0.31 kg SAR30Z 30 mm 65 mm 18 mm 0.28 kg SAR35Z 35 mm 65 mm 18 mm 0.25 kg SAR40Z 40 mm 80 mm 20 mm 0.47 kg SAR45Z 45 mm 80 mm 20 mm 0.44 kg SAR50Z 50 mm 89 mm 25 mm 0.71 kg
Key Features
- Material: Zinc
- Specification: MIL-A-18001K
- Type: Shaft ring anode
- Construction: Split ring
- Shaft Diameter Range: Ø25–50 mm
- Application: Marine propeller shafts
- Water Type: Salt and brackish water
Select the correct model according to the propeller shaft diameter and verify the outside diameter and height against the available installation space.
-
