Vetus RAD Zinc Rudder Disc Anodes

ID 1400923

$ 56.07

1-2 weeks delivery time

Size:

Ø140x30
Ø50x11
Ø70x13
Ø90x18
Ø110x18

Item:

1500 g
700 g
450 g
230 g
83 g

Vetus RAD zinc rudder disc anodes for cathodic protection of marine rudder components in salt and brackish water. The range includes five bolt-on sizes from Ø50 x 11 mm to Ø140 x 30 mm, with zinc weights from 83 to 1500 g. Each disc features a recessed central mounting arrangement with specific d1 and d2 dimensions for secure installation.

Description
Ask a Question

Vetus RAD Zinc Rudder Disc Anodes – Ø50–140 mm

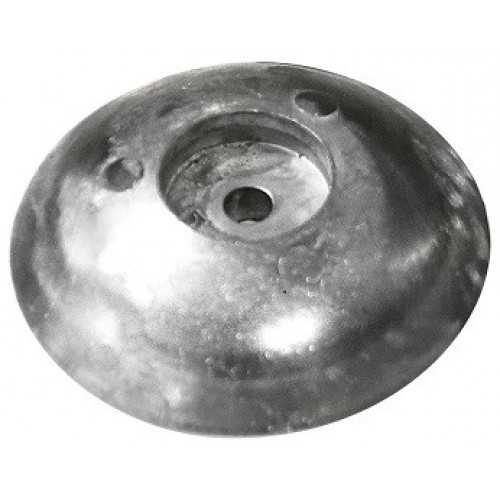

The Vetus RAD zinc rudder disc anodes are sacrificial anodes designed for cathodic protection of marine rudder components. Their compact disc profile allows direct bolt-on installation while maintaining a low-profile shape on the rudder surface.

The range includes five diameters from Ø50 to Ø140 mm. Each model has its own outside diameter, height, recessed bore diameter and central mounting-hole diameter. The flat mounting surface is left unpainted to provide direct electrical contact.

Available Models

Product Code	Outer Diameter	d1	d2	Height	Net Weight
RAD50Z	50 mm	20 mm	6.5 mm	11 mm	0.083 kg
RAD70Z	70 mm	22 mm	8.5 mm	13 mm	0.23 kg
RAD90Z	90 mm	31 mm	8.5 mm	18 mm	0.45 kg
RAD110Z	110 mm	30 mm	11 mm	18 mm	0.70 kg
RAD140Z	140 mm	35 mm	12 mm	30 mm	1.50 kg

Key Features

Material: Zinc
Type: Rudder disc anode
Installation: Bolt-on
Outer Diameter Range: Ø50–140 mm
Application: Cathodic protection of marine rudder components
Water Type: Salt and brackish water

Select the appropriate model according to the required outside diameter, height and mounting dimensions d1 and d2.
