ID
1400865
$ 90.67
1-2 weeks delivery time
Size:
- 215x94x31
- 85x35x16
- 105x45x25
- 120x55x30
- 150x87x31
- 250x108x35 No Holes
- 340x150x35 No Holes
Item:
- 200 g
- 450 g
- 1800 g
- 800 g
- 3140 g
- 5150 g
- 9700 g
Vetus BOA rectangular zinc hull anodes with integrated steel mounting straps for cathodic protection of underwater metal components in salt and brackish water. The range includes seven sizes with anode body dimensions from 85 x 35 x 16 mm to 340 x 150 x 35 mm and net zinc weights from 0.20 to 9.70 kg. BOA001Z through BOA005Z feature slotted mounting straps, while BOA006Z and BOA007Z are supplied with steel straps without holes.
- Description
- Ask a Question
-
Vetus BOA Zinc Hull Anodes with Steel Strap – Rectangular

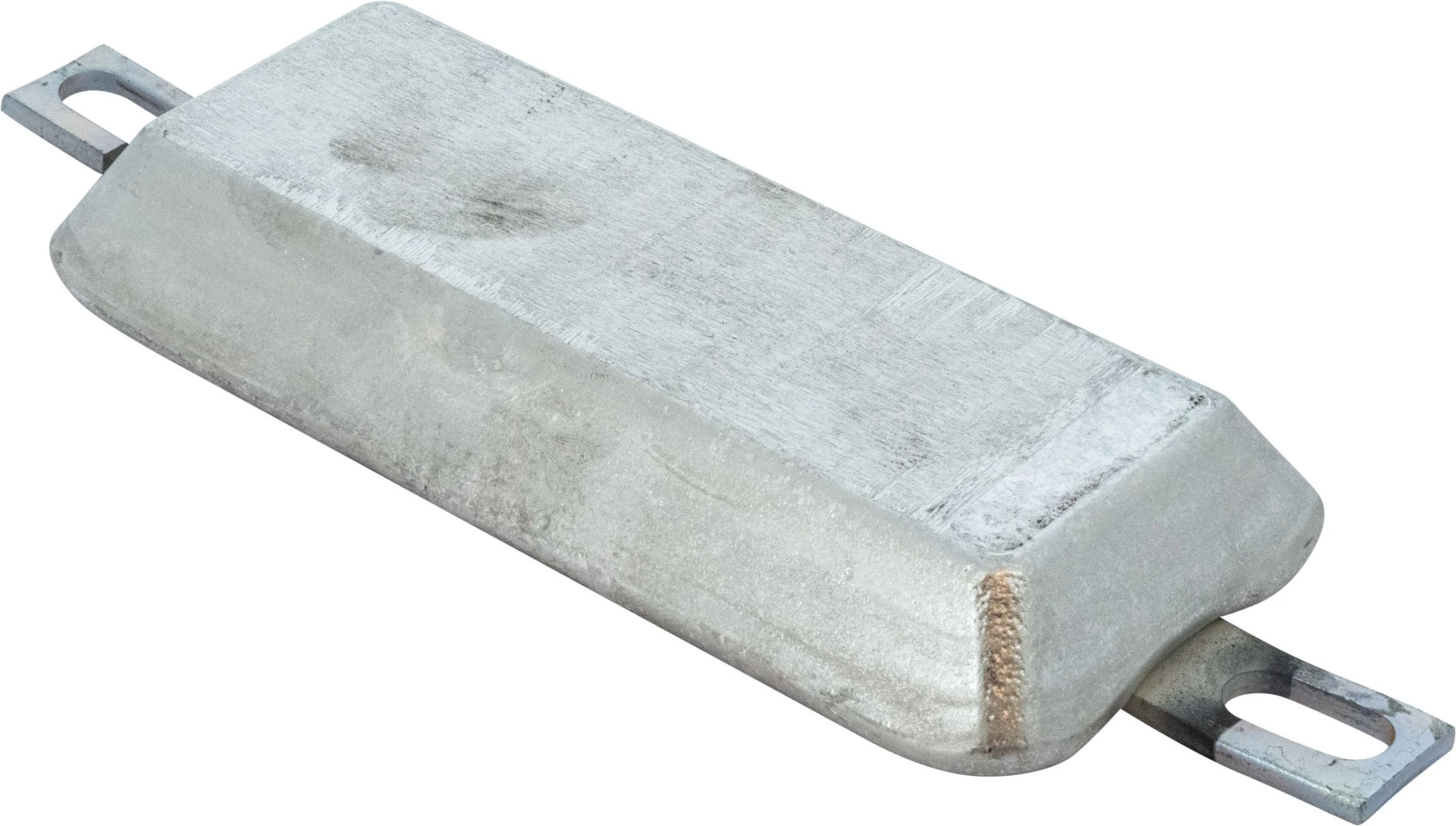

The Vetus BOA zinc hull anodes are rectangular sacrificial anodes designed for cathodic protection of underwater metal components. They are manufactured from zinc to MIL-A-18001K specification and incorporate an integrated steel mounting strap.
The range covers seven sizes with different anode dimensions, mounting centres and sacrificial zinc weights. BOA001Z through BOA005Z are supplied with slotted steel straps for mounting, while the larger BOA006Z and BOA007Z versions have steel straps without holes.
Available Models
Product Code Anode Body (L × W × H) Overall Length Steel Strap C-C C Net Anode Weight Gross Weight BOA001Z 85 × 35 × 16 mm 165 mm 165 × 15 × 3 mm 118 mm 6.5 mm 0.20 kg 0.24 kg BOA002Z 105 × 45 × 25 mm 175 mm 175 × 15 × 3 mm 125 mm 6.5 mm 0.45 kg 0.50 kg BOA003Z 120 × 55 × 30 mm 225 mm 225 × 20 × 4 mm 180 mm 9 mm 0.80 kg 0.94 kg BOA004Z 150 × 87 × 31 mm 225 mm 225 × 20 × 4 mm 178 mm 9 mm 1.80 kg 1.94 kg BOA005Z 215 × 94 × 31 mm 295 mm 295 × 25 × 5 mm 255 mm 13 mm 3.14 kg 3.40 kg BOA006Z 250 × 108 × 35 mm 350 mm 350 × 25 × 5 mm, without holes — — 5.15 kg 5.60 kg BOA007Z 340 × 150 × 35 mm 450 mm 450 × 50 × 5 mm, without holes — — 9.70 kg 10.40 kg
Key Features
- Material: Zinc
- Specification: MIL-A-18001K
- Shape: Rectangular
- Application: Hull cathodic protection
- Mounting: Integrated steel strap
- Net Zinc Weight Range: 0.20–9.70 kg
- BOA006Z / BOA007Z: Steel strap without mounting holes
Select the appropriate model according to the required anode dimensions, available mounting space, mounting-centre distance and sacrificial zinc mass.
-
