Vetus SAC Zinc Shaft Collar USA Type Anodes

ID 1400908

$ 20.28

1-2 weeks delivery time

Shaft Diameter:

1 1/4"
1 3/8"
1 1/2"
1 3/4"
2"
2 1/4"
2 1/2"

Size:

Ø105x98

Item:

450 g
770 g
820 g
1330 g
1220 g
2130 g
2350 g

Vetus SAC USA Type zinc shaft collar anodes for cathodic protection of marine propeller shafts. The range covers imperial shaft diameters from 1 1/4" to 2 1/2", with outside diameters from 58 to 105 mm, heights from 50 to 98 mm and net weights from 0.45 to 2.35 kg. The split collar construction allows direct installation around the shaft and is secured with two bolts.

Description
Ask a Question

Vetus SAC Zinc Shaft Collar Anodes – USA Type, 1 1/4"–2 1/2"

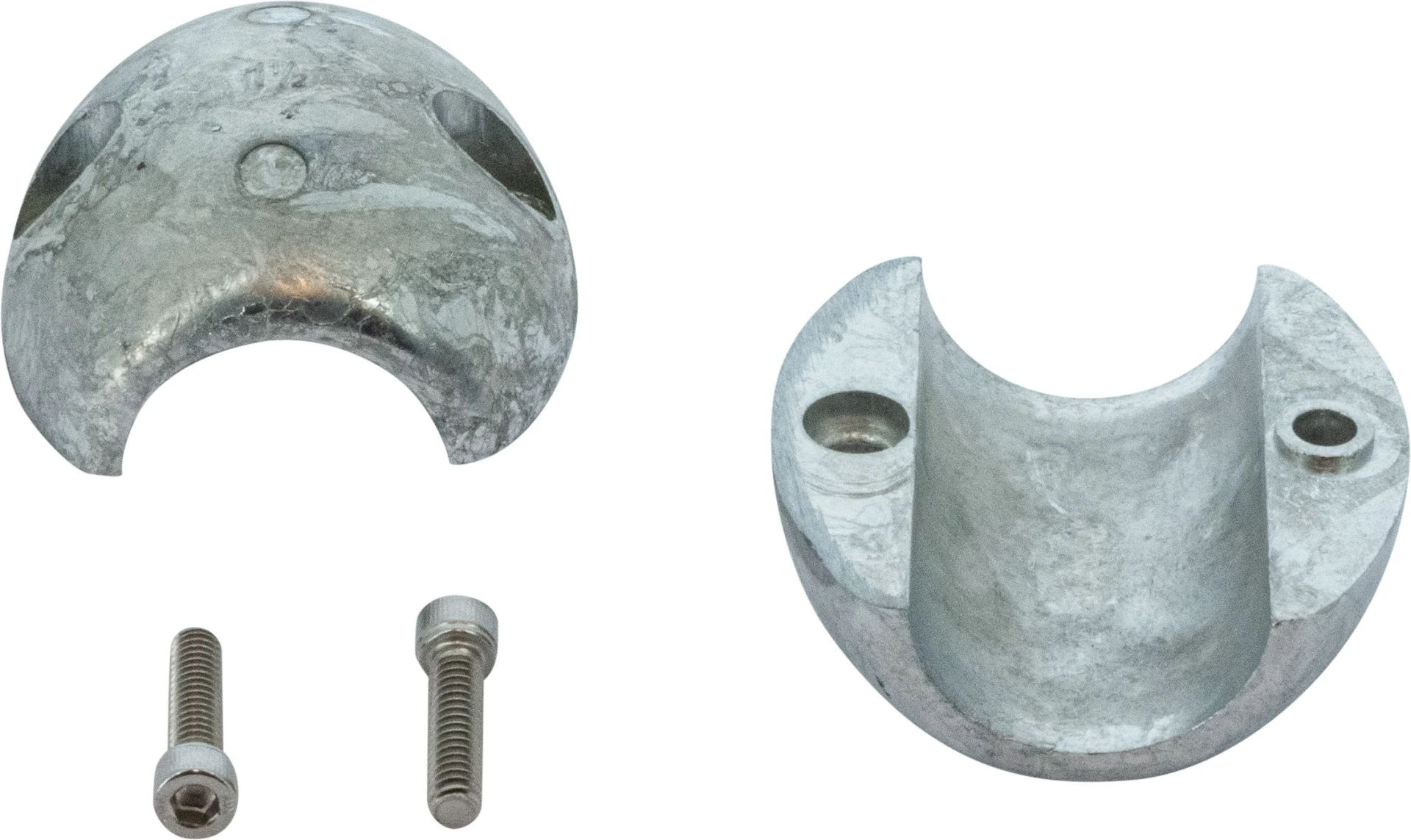

The Vetus SAC zinc shaft collar anodes are USA Type sacrificial anodes designed for direct installation on marine propeller shafts. The split two-piece collar construction allows the anode to be fitted around the shaft and secured with two bolts.

The range covers imperial shaft diameters from 1 1/4" to 2 1/2". Each version has a specific internal diameter to match the shaft, together with corresponding outside diameter, height and sacrificial zinc weight.

Available Models

Product Code	Shaft I.D.	Outside Diameter	Height	Net Weight
SAC114Z	1 1/4"	58 mm	50 mm	0.45 kg
SAC138Z	1 3/8"	67 mm	64 mm	0.77 kg
SAC112Z	1 1/2"	70 mm	66 mm	0.82 kg
SAC134Z	1 3/4"	84 mm	75 mm	1.33 kg
SAC2Z	2"	84 mm	75 mm	1.22 kg
SAC214Z	2 1/4"	98 mm	95 mm	2.13 kg
SAC212Z	2 1/2"	105 mm	98 mm	2.35 kg

Key Features

Material: Zinc
Type: USA Type shaft collar anode
Construction: Split two-piece collar
Installation: Directly on the propeller shaft
Shaft Range: 1 1/4"–2 1/2"
Application: Cathodic protection of marine propeller shafts

Select the correct anode according to the propeller shaft diameter and verify the outside diameter and height against the available installation space.
