Vetus V-Quipment aluminium weld-on hull anodes for cathodic protection of underwater metal components, manufactured from aluminium-indium-zinc alloy to MIL-A-24779 (SH). The range includes rectangular and drop-shaped versions with aluminium anode weights from 0.25 to 1.17 kg and body dimensions from 113 x 60 x 17 mm to 190 x 85 x 35 mm for rectangular models and from 118 x 78 x 25 mm to 160 x 100 x 42 mm for drop-shaped models. Each anode is supplied with an integrated steel strap for direct welding to the hull.
- Description
- Ask a Question
-

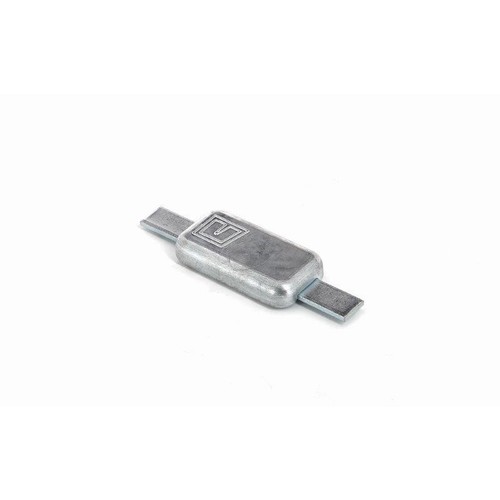

Vetus V-Quipment Aluminium Weld-On Hull Anodes – Rectangular & Drop
The Vetus V-Quipment aluminium weld-on hull anodes are sacrificial anodes designed for cathodic protection of underwater metal components. They are manufactured from an aluminium-indium-zinc alloy to MIL-A-24779 (SH) specification and are intended primarily for vessels operating in fresh water.
Each anode incorporates a steel mounting strap for direct welding to a metal hull. The range includes both rectangular and drop-shaped profiles in several sizes and sacrificial aluminium weights.
Rectangular Models
Product Code Anode Body (L × W × H) Overall Length Steel Strap Net Anode Weight Gross Weight WOA000A 113 × 60 × 17 mm 198 mm 198 × 25 × 3 mm 0.25 kg 0.36 kg WOA001A 113 × 62 × 25 mm 198 mm 198 × 25 × 5 mm 0.36 kg 0.55 kg WOA002A 200 × 70 × 22 mm 298 mm 298 × 25 × 5 mm 0.76 kg 1.05 kg WOA003A 209 × 65 × 29 mm 293 mm 293 × 25 × 5 mm 0.82 kg 1.10 kg WOA004A 190 × 85 × 35 mm 293 mm 293 × 25 × 5 mm 1.17 kg 1.45 kg
Drop-Shaped Models
Product Code Anode Body (L × W × H) Overall Length Steel Strap Net Anode Weight Gross Weight WOA010A 118 × 78 × 25 mm 230 mm 230 × 25 × 5 mm 0.33 kg 0.55 kg WOA011A 138 × 92 × 35 mm 248 mm 248 × 25 × 5 mm 0.71 kg 0.95 kg WOA012A 160 × 100 × 42 mm 248 mm 248 × 25 × 5 mm 1.01 kg 1.25 kg
Key Features
- Anode Material: Aluminium-indium-zinc alloy
- Specification: MIL-A-24779 (SH)
- Installation: Weld-on
- Mounting: Integrated steel strap
- Available Profiles: Rectangular and Drop
- Application: Cathodic protection of underwater metal components
-
