Vetus STAD Zinc Stern Disc Anodes

ID 1400929

$ 103.20

1-2 weeks delivery time

Size:

Ø125x38
Ø140x30
Ø140x35
Ø135x47 M50x3

Item:

3000 g
2700 g
3700 g

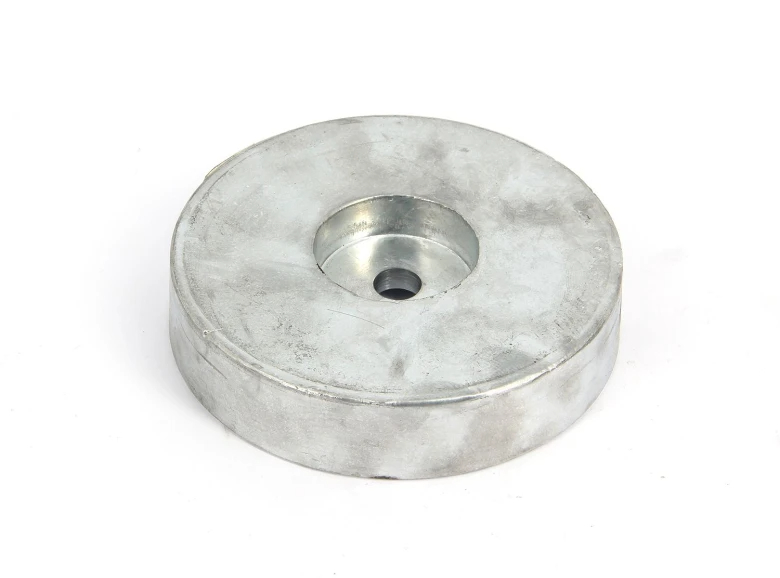

Vetus STAD zinc stern disc anodes for cathodic protection of stern-mounted underwater metal components. Available in four versions with outside diameters from Ø125 to Ø140 mm, heights from 30 to 47 mm and net zinc weights from 2.70 to 3.70 kg. STAD001Z, STAD002Z and STAD003Z use recessed central mounting bores, while STAD004Z features an M50x3 threaded connection.

Description
Ask a Question

Vetus STAD Zinc Stern Disc Anodes – Ø125–140 mm

The Vetus STAD zinc stern disc anodes are sacrificial disc anodes designed for cathodic protection of underwater metal components in the stern area of marine vessels.

The range includes four sizes with outside diameters from Ø125 to Ø140 mm and net zinc weights from 2.70 to 3.70 kg. The flat mounting surface is left unpainted to maintain electrical contact with the protected metal structure.

Available Models

Product Code	O.D.	Height	d1 / Thread	d2	d3	Net Weight
STAD001Z	140 mm	30 mm	52 mm	14.5 mm	48 mm	2.70 kg
STAD002Z	140 mm	35 mm	55 mm	14.5 mm	48 mm	3.00 kg
STAD003Z	125 mm	38 mm	50 mm	14.5 mm	48 mm	2.70 kg
STAD004Z	135 mm	47 mm	M50x3	14.5 mm	32 mm	3.70 kg

Key Features

Material: Zinc
Type: Stern disc anode
Outside Diameter Range: Ø125–140 mm
Net Zinc Weight Range: 2.70–3.70 kg
Mounting Surface: Non-painted for electrical contact
STAD004Z: M50x3 threaded mounting connection

Select the appropriate model according to the outside diameter, height and central mounting dimensions of the existing stern installation.
