Vetus BOA rectangular aluminium hull anodes with integrated steel mounting strap for cathodic protection of underwater metal components. Available in five sizes with anode body dimensions from 130 x 60 x 30 mm to 340 x 150 x 35 mm and net aluminium weights from 0.31 to 3.70 kg. BOA003A, BOA004A and BOA005A use mounting straps with fixing slots, while BOA006A and BOA007A are supplied with steel straps without holes.
- Description
- Ask a Question
-

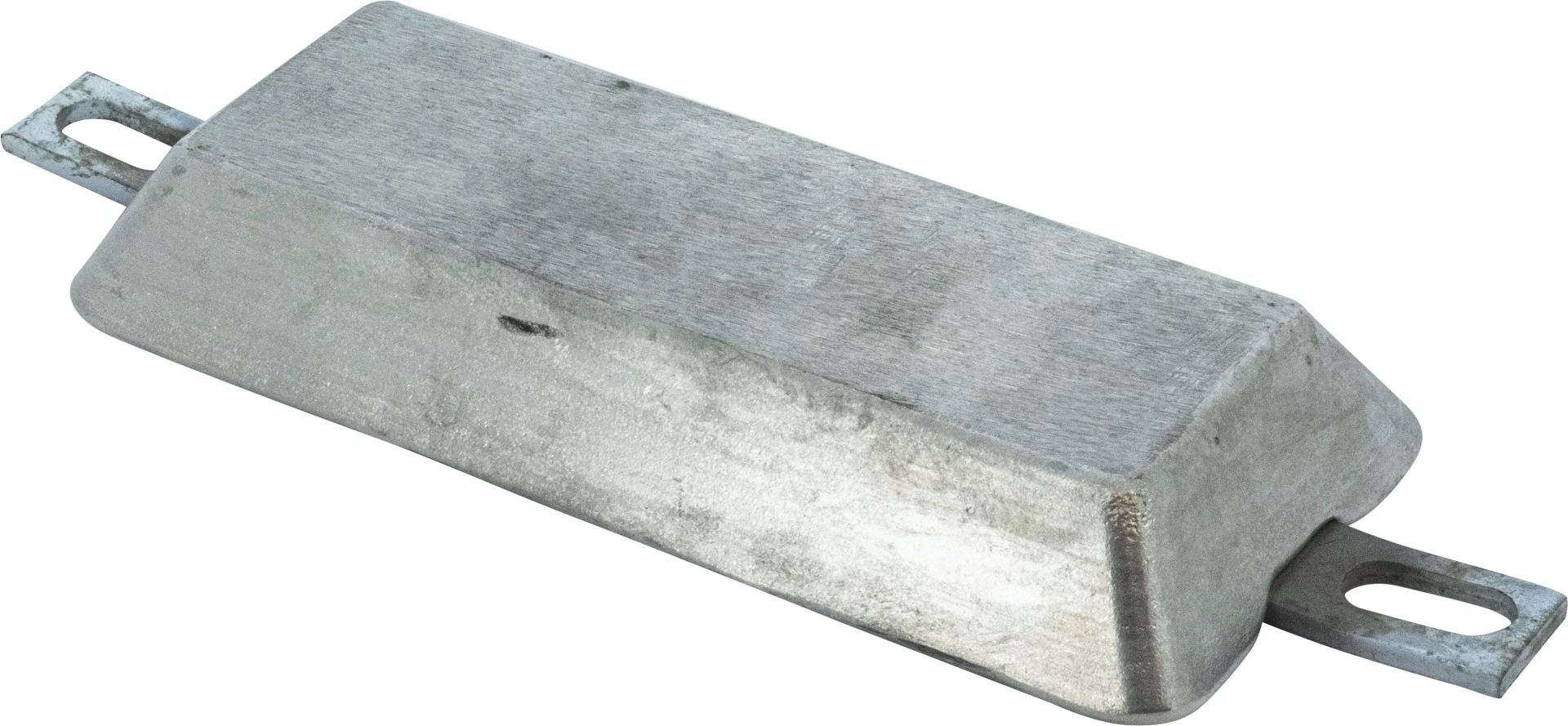

Vetus BOA Aluminium Hull Anodes with Steel Strap – Rectangular
The Vetus BOA aluminium hull anodes are rectangular sacrificial anodes designed for cathodic protection of underwater metal components. Each model incorporates a steel mounting strap extending beyond the anode body for attachment to the vessel structure.
The range includes five sizes with different body dimensions, strap configurations and sacrificial aluminium weights. BOA003A, BOA004A and BOA005A are equipped with mounting slots in the steel strap. The larger BOA006A and BOA007A versions are supplied with steel straps without holes.
Available Models
Product Code Anode Body (L × W × H) Overall Length Steel Strap C-C C Net Anode Weight Gross Weight BOA003A 130 × 60 × 30 mm 230 mm 230 × 20 × 5 mm 195 mm 9 mm 0.31 kg 0.44 kg BOA004A 155 × 87 × 31 mm 225 mm 225 × 20 × 5 mm 178 mm 9 mm 0.72 kg 0.87 kg BOA005A 215 × 94 × 31 mm 295 mm 295 × 25 × 5 mm 255 mm 13 mm 1.28 kg 1.52 kg BOA006A 250 × 108 × 35 mm 350 mm 350 × 25 × 5 mm, without holes — — 2.05 kg 2.40 kg BOA007A 340 × 150 × 35 mm 450 mm 450 × 50 × 5 mm, without holes — — 3.70 kg 4.50 kg
Key Features
- Material: Aluminium
- Shape: Rectangular
- Application: Hull cathodic protection
- Mounting: Integrated steel strap
- Available Net Anode Weight: 0.31–3.70 kg
- BOA006A / BOA007A: Steel strap supplied without mounting holes
Select the appropriate version by anode body dimensions, available mounting space, strap configuration and required sacrificial aluminium mass.
-
