Vetus BOA Zinc Plate Bolt-On Hull Anodes

ID 1400873

$ 29.82

1-2 weeks delivery time

Size:

146x64x19
151x69x25
200x110x28
155x100x15
303x151x13

Item:

1100 g
3200 g
900 g
3300 g
1350 g

Vetus BOA zinc plate hull anodes for cathodic protection of underwater metal components in salt and brackish water. The low-profile rectangular range includes five bolt-on sizes from 146 x 64 x 19 mm to 303 x 151 x 13 mm, with net zinc weights from 0.90 to 3.30 kg. Each model features two elongated mounting slots with specified centre-to-centre spacing for secure installation and straightforward replacement.

Description
Ask a Question

Vetus BOA Zinc Plate Hull Anodes – Bolt-On

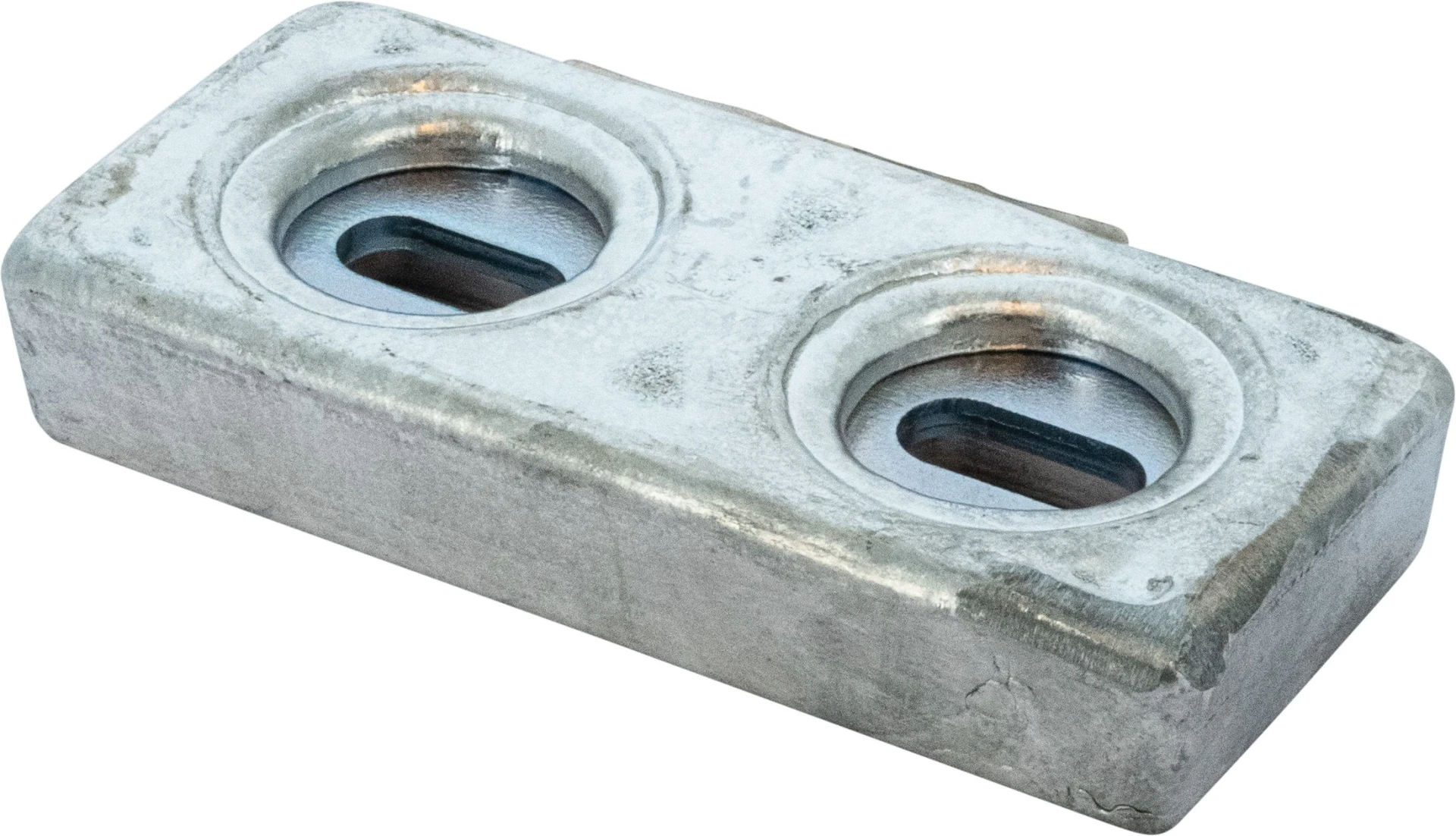

The Vetus BOA zinc plate hull anodes are low-profile rectangular sacrificial anodes designed for cathodic protection of underwater metal components. They are suitable for vessels operating in salt and brackish water and use a bolt-on mounting arrangement for convenient replacement.

The range includes five sizes with different overall dimensions, mounting-centre distances, slot dimensions and sacrificial zinc weights. Each anode incorporates two elongated mounting slots to provide secure attachment to the vessel structure.

Available Models

Product Code	Dimensions (L × W × H)	C-C	Mounting Slot (C)	Net Anode Weight	Gross Weight
BOA021Z	146 × 64 × 19 mm	73 mm	13 × 28 mm	0.90 kg	0.91 kg
BOA022Z	151 × 69 × 25 mm	75 mm	13 × 28 mm	1.35 kg	1.50 kg
BOA023Z	200 × 110 × 28 mm	130 mm	13 × 28 mm	3.20 kg	3.50 kg
BOA024Z	155 × 100 × 15 mm	69 mm	11 × 41 mm	1.10 kg	1.27 kg
BOA025Z	303 × 151 × 13 mm	141 mm	13 × 98 mm	3.30 kg	3.63 kg

Key Features

Material: Zinc
Shape: Low-profile rectangular plate
Installation: Bolt-on
Mounting: Two elongated slots
Application: Cathodic protection of underwater metal components
Water Type: Salt and brackish water
Net Zinc Weight Range: 0.90–3.30 kg

Select the appropriate model according to the available mounting space, overall anode dimensions, mounting-centre distance and required sacrificial zinc mass.
