Tecnoseal zinc plain rod anodes available in diameters from Ø10 to Ø240 mm and lengths from 100 to 750 mm. The range includes multiple length options for selected diameters, including Ø20, Ø25, Ø45, Ø50, Ø60, Ø70, Ø80, Ø90, Ø100 and Ø150 mm. Individual weights range from 0.22 kg to 132.00 kg depending on diameter and length. All variants in this card are zinc (ZN) plain, non-threaded rods. Select the required model according to rod diameter, overall length and weight.
- Description
- Ask a Question
-
Tecnoseal Zinc Plain Rod Anodes – Ø10–240 mm, Length 100–750 mm

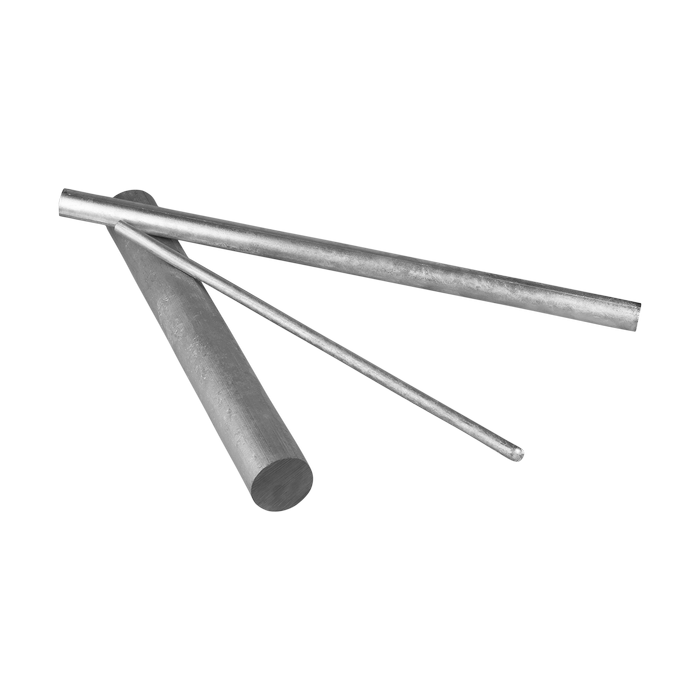

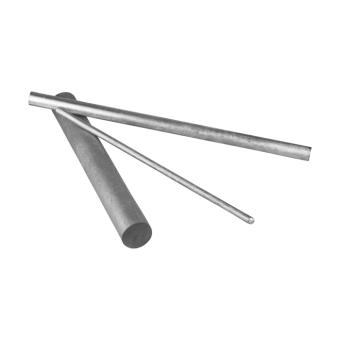

The Tecnoseal Zinc Plain Rod Anodes are non-threaded cylindrical zinc rods available in a wide range of diameters and lengths. This product card includes zinc (ZN) variants only.
Available diameters range from Ø10 to Ø240 mm, with overall lengths from 100 to 750 mm. Several diameters are available in more than one length, allowing the required configuration to be selected according to installation dimensions and anode mass.
Key Features
- Brand: Tecnoseal
- Product Type: Plain rod / non-threaded rod anode
- Material: Zinc (ZN)
- Diameter Range: Ø10–240 mm
- Length Range: 100–750 mm
- Weight Range: 0.22–132.00 kg
Available Zinc Models
Tecnoseal Code Diameter Ø Length L Weight 00600 10 mm 400 mm 0.23 kg 00600/1 12 mm 400 mm 0.33 kg 00600/2 14 mm 400 mm 0.44 kg 00601 15 mm 400 mm 0.50 kg 00601/1 16 mm 400 mm 0.61 kg 00601/2 18 mm 400 mm 0.75 kg 00602 20 mm 400 mm 0.90 kg 00602-1 20 mm 100 mm 0.22 kg 00602/6 20 mm 600 mm 1.31 kg 00603 25 mm 400 mm 1.40 kg 00603/5 25 mm 500 mm 1.75 kg 00604 30 mm 400 mm 2.02 kg 00605 35 mm 400 mm 2.80 kg 00606 40 mm 400 mm 3.58 kg 00607 45 mm 400 mm 4.55 kg 00607/5 45 mm 500 mm 5.67 kg 00608 50 mm 400 mm 5.60 kg 00608/5 50 mm 500 mm 7.00 kg 00608/7 50 mm 750 mm 10.50 kg 00609 55 mm 400 mm 6.78 kg 00610 60 mm 400 mm 7.80 kg 00610-5 60 mm 500 mm 9.75 kg 00612 70 mm 400 mm 10.95 kg 00612/5 70 mm 500 mm 13.70 kg 00612/1 75 mm 400 mm 12.65 kg 00613 80 mm 400 mm 14.35 kg 00613/5 80 mm 500 mm 18.00 kg 00616 85 mm 400 mm 17.80 kg 00617 90 mm 400 mm 18.20 kg 00617/1 90 mm 500 mm 22.70 kg 00614 100 mm 400 mm 22.55 kg 00614/5 100 mm 500 mm 28.20 kg 00619 110 mm 400 mm 27.00 kg 00619/1 120 mm 400 mm 32.20 kg 00620 130 mm 400 mm 37.90 kg 00621 140 mm 400 mm 43.90 kg 00621/1 145 mm 400 mm 47.00 kg 00622 150 mm 400 mm 50.40 kg 00622/5 150 mm 500 mm 63.00 kg 00623 160 mm 400 mm 57.30 kg 00624 170 mm 400 mm 65.00 kg 00627 210 mm 400 mm 89.60 kg 00629 230 mm 400 mm 123.00 kg 00629/1 240 mm 400 mm 132.00 kg
Dimensions for Model Selection
- Ø: Rod diameter
- L: Overall rod length
- Weight: Individual rod weight
Select the required Tecnoseal zinc plain rod according to diameter, length and weight.
-
