ID
1400850
$ 32.21
1-2 weeks delivery time
Type:
- Rectangular
- Drop
Size:
- 113x62x25
- 200x70x22
- 190x85x35
- 118x78x25
- 138x92x35
- 209x65x29
- 160x100x42
- 113x60x22
Item:
- 780 g
- 1560 g
- 770 g
- 880 g
- 1990 g
- 2720 g
- 2460 g
Vetus V-Quipment zinc weld-on hull anodes for cathodic protection of underwater metal components in salt and brackish water. Manufactured from zinc to MIL-A-18001K specification, the range includes rectangular and drop-shaped versions with net zinc weights from 0.77 to 2.72 kg. Anode body sizes range from 113 x 60 x 22 mm to 190 x 85 x 35 mm for rectangular models and from 118 x 78 x 25 mm to 160 x 100 x 42 mm for drop-shaped models. Each anode incorporates a steel mounting strap for direct welding to the hull.
- Description
- Ask a Question
-
Vetus V-Quipment Zinc Weld-On Hull Anodes – Rectangular & Drop
The Vetus V-Quipment zinc weld-on hull anodes are sacrificial anodes designed for cathodic protection of underwater metal components on vessels operating in salt and brackish water.
The anodes are manufactured from zinc to MIL-A-18001K specification and incorporate an integrated steel mounting strap for direct welding to a metal hull. The range includes both rectangular and drop-shaped profiles in several dimensions and sacrificial zinc weights.

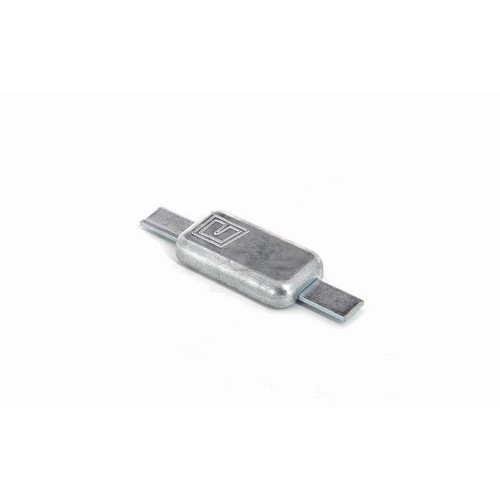

Rectangular Models
Product Code Anode Body (L × W × H) Overall Length Steel Strap Net Anode Weight Gross Weight WOA000Z 113 × 60 × 22 mm 198 mm 198 × 25 × 3 mm 0.77 kg 0.90 kg WOA001Z 113 × 62 × 25 mm 198 mm 198 × 25 × 5 mm 0.88 kg 1.07 kg WOA002Z 200 × 70 × 22 mm 298 mm 298 × 25 × 5 mm 1.56 kg 1.85 kg WOA003Z 209 × 65 × 29 mm 293 mm 293 × 25 × 5 mm 1.99 kg 2.27 kg WOA004Z 190 × 85 × 35 mm 293 mm 293 × 25 × 5 mm 2.72 kg 3.00 kg
Drop-Shaped Models
Product Code Anode Body (L × W × H) Overall Length Steel Strap Net Anode Weight Gross Weight WOA010Z 118 × 78 × 25 mm 230 mm 230 × 25 × 5 mm 0.78 kg 1.00 kg WOA011Z 138 × 92 × 35 mm 248 mm 248 × 25 × 5 mm 1.56 kg 1.80 kg WOA012Z 160 × 100 × 42 mm 248 mm 248 × 25 × 5 mm 2.46 kg 2.70 kg
Key Features
- Material: Zinc
- Specification: MIL-A-18001K
- Installation: Weld-on
- Mounting: Integrated steel strap
- Available Profiles: Rectangular and Drop
- Application: Cathodic protection of underwater metal components
- Water Type: Salt and brackish water
-
