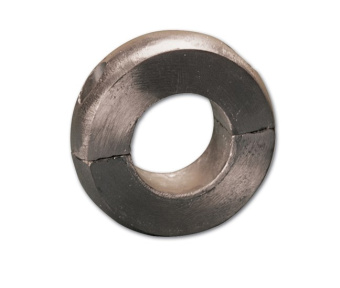

MgDuff ASC Aluminium Propeller Shaft Ring Anodes, Ø22–50 mm

MgDuff ASC Aluminium Propeller Shaft Ring Anodes – Ø22–50 mm, Brackish and Saltwater

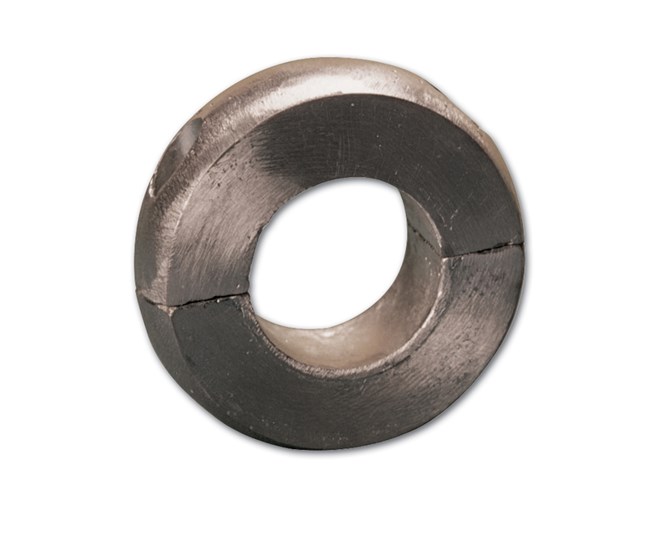

The MgDuff ASC Aluminium Propeller Shaft Ring Anode is a sacrificial anode designed for installation against the front face of a marine propeller. Manufactured from aluminium, it provides sacrificial corrosion protection for propeller shaft installations in brackish and saltwater environments.

The ASC series includes seven models for shaft diameters ranging from 22 to 50 mm. The anodes feature a ring-shaped body with external diameters from 60 to 81 mm and overall lengths of 15.5 or 18 mm, depending on the selected version.

Key Features

• Brand: MgDuff
• Series: ASC
• Product Type: Sacrificial propeller shaft ring anode
• Material: Aluminium
• Shape: Ring
• Application: Marine propeller shafts
• Installation Position: Against the front face of the propeller
• Suitable Water Types: Brackish water and saltwater
• Shaft Diameter Range: 22–50 mm
• External Diameter Range: 60–81 mm
• Anode Length: 15.5 or 18 mm, depending on the model
• Available Variants: 7 sizes
• Function: Sacrificial corrosion protection for marine propeller shaft installations

Technical Specifications and Available Models

The MgDuff ASC aluminium ring anodes are available in seven sizes. Each model has a specified shaft diameter, external anode diameter and overall length. All dimensions are given in millimetres.

Construction and Installation

The MgDuff ASC anode features a ring-shaped aluminium body designed to fit around the propeller shaft. It is intended to be mounted against the front face of the propeller.

• Anode Material: Aluminium.
• Body Shape: Ring.
• Installation Location: Propeller shaft.
• Mounting Position: Against the front face of the propeller.
• Shaft Opening: Available in diameters of 22, 25, 30, 35, 40, 45 and 50 mm.

Select the appropriate anode according to the shaft diameter. The external diameter and overall length should also be checked against the available installation dimensions.

Dimensions and Shaft Compatibility

The ASC series includes three variants with an external diameter of 60 mm and a length of 15.5 mm. The remaining four models have a length of 18 mm, with external diameters of 73, 74 or 81 mm.

• ASC22T: For Ø22 mm shafts. External diameter: 60 mm. Length: 15.5 mm.
• ASC25T: For Ø25 mm shafts. External diameter: 60 mm. Length: 15.5 mm.
• ASC30T: For Ø30 mm shafts. External diameter: 60 mm. Length: 15.5 mm.
• ASC35T: For Ø35 mm shafts. External diameter: 73 mm. Length: 18 mm.
• ASC40T: For Ø40 mm shafts. External diameter: 74 mm. Length: 18 mm.
• ASC45T: For Ø45 mm shafts. External diameter: 81 mm. Length: 18 mm.
• ASC50T: For Ø50 mm shafts. External diameter: 81 mm. Length: 18 mm.

Corrosion Protection and Water Compatibility

The aluminium anode functions as a sacrificial component, corroding preferentially to help protect metal components of the propeller shaft installation against corrosion.

The MgDuff ASC series is specified for use in brackish and saltwater environments.

• Brackish Water: Suitable for environments containing a mixture of freshwater and saltwater.
• Saltwater: Suitable for marine saltwater environments.
