Tecnoseal Zinc Standard Shaft Sacrificial Anodes, Shaft 19–90 mm

ID 1399682

$ 30.72

1-2 weeks delivery time

Shaft Diameter:

19
22
25
28
30
34
35
40
45
48
50
55
60
65
1-1/8"
1-1/4"
1-1/2"
2-1/4"
70
2-1/2"
75
80
1-3/4"
85
90
1"
2"
3"

Size:

56x58
66x65
76x82
88x93
110x100
107x128
113x137

Item:

500 g
990 g
570 g
430 g
450 g
2100 g
540 g
1650 g
850 g
1030 g
1070 g
440 g
470 g
950 g
520 g
480 g
410 g
880 g
890 g
1080 g
1710 g
1680 g
2740 g
2590 g
2540 g
2370 g
3650 g

Tecnoseal zinc Standard Type shaft sacrificial anodes for marine shaft installations, available for shaft sizes from 19 mm / 3/4" up to 90 mm and including both metric and imperial configurations. The range includes models with 2 fastening holes for shaft sizes from 19 mm through 2" / 50.8 mm, and larger models with 4 fastening holes for shafts from 55 to 90 mm. Depending on the model, anode height ranges from 56 to 113 mm, overall diameter from Ø58 to Ø137 mm and weight from 0.41 to 3.65 kg. Bolts and nuts are available on request. Select the required model according to shaft diameter, overall dimensions, fastening-hole configuration and weight.

Description
Ask a Question

Tecnoseal Zinc Standard Shaft Sacrificial Anodes – 2 & 4 Fastening Holes, Shaft 19–90 mm

The Tecnoseal Zinc Standard Shaft Anodes are Standard Type sacrificial shaft anodes available for a wide range of metric and imperial shaft diameters. The range covers shaft sizes from 19 mm / 3/4" up to 90 mm.

Smaller Standard Type models from Tecnoseal 00500 through 00514 use a 2 fastening-hole configuration. Larger models from 00515 through 00524-13 use a 4 fastening-hole configuration. Bolts and nuts are available on request.

Confirmed Osculati cross references are available for selected models, including Tecnoseal 00500 / Osculati 43.800.19, 00501 / 43.800.22, 00502 / 43.800.25, 00503 / 43.800.26, 00505 / 43.800.28, 00506 / 43.800.30, 00507 / 43.800.32, 00509 / 43.800.35, 00510 / 43.800.38, 00511 / 43.800.40, 00511M / 43.800.44, 00512 / 43.800.45, 00513 / 43.800.50, 00514 / 43.800.51, 00516 / 43.800.57, 00517 / 43.800.60, 00518 / 43.800.63, 00519 / 43.800.65, 00520 / 43.800.70, 00521 / 43.800.75 and 00522 / 43.800.80.

Depending on the selected model, the anodes have heights from 56 to 113 mm, overall diameters from Ø58 to Ø137 mm and zinc weights from 0.41 to 3.65 kg.

Key Features

Brand: Tecnoseal
Type: Standard Type Shaft Anode
Product Type: Shaft sacrificial anode
Material: Zinc
Shaft Size Range: 19 mm / 3/4" to 90 mm
Fastening: 2 fastening holes or 4 fastening holes depending on model
Bolts and Nuts: Available on request
Height Range: 56–113 mm
Overall Diameter Range: Ø58–137 mm
Weight Range: 0.41–3.65 kg

Standard Shaft Anodes – 2 Fastening Holes

Tecnoseal Code	Osculati Reference	Shaft Size	Weight	Height (h)	Overall Ø	Ø1
00500	43.800.19	19 mm / 3/4"	0.54 kg / 540 g	56 mm	58 mm	19 mm
00501	43.800.22	22 mm / 7/8"	0.50 kg / 500 g	56 mm	58 mm	22 mm
00502	43.800.25	25 mm	0.47 kg / 470 g	56 mm	58 mm	25 mm
00503	43.800.26	1"	0.48 kg / 480 g	56 mm	58 mm	25.40 mm
00504	—	28 mm	0.44 kg / 440 g	56 mm	58 mm	28 mm
00505	43.800.28	1-1/8"	0.45 kg / 450 g	56 mm	58 mm	28.60 mm
00506	43.800.30	30 mm	0.43 kg / 430 g	56 mm	58 mm	30 mm
00507	43.800.32	1-1/4"	0.41 kg / 410 g	56 mm	58 mm	31.80 mm
00508	—	34 mm	0.57 kg / 570 g	66 mm	65 mm	34 mm
00509	43.800.35	35 mm	0.52 kg / 520 g	66 mm	65 mm	35 mm
00510	43.800.38	1-1/2"	0.48 kg / 480 g	66 mm	65 mm	38 mm
00511	43.800.40	40 mm	0.95 kg / 950 g	76 mm	82 mm	40 mm
00511M	43.800.44	1-3/4"	0.88 kg / 880 g	76 mm	82 mm	44.40 mm
00512	43.800.45	45 mm	0.89 kg / 890 g	76 mm	82 mm	45 mm
00512M	—	48 mm	0.85 kg / 850 g	76 mm	82 mm	48 mm
00513	43.800.50	50 mm	0.99 kg / 990 g	76 mm	82 mm	50 mm
00514	43.800.51	2"	1.03 kg / 1030 g	76 mm	82 mm	50.80 mm

Standard Shaft Anodes – 4 Fastening Holes

Tecnoseal Code	Osculati Reference	Shaft Size	Weight	Height (h)	Overall Ø	Ø1
00515	—	55 mm	1.08 kg / 1080 g	88 mm	93 mm	55 mm
00516	43.800.57	2-1/4"	1.07 kg / 1070 g	88 mm	93 mm	57.10 mm
00517	43.800.60	60 mm	1.71 kg / 1710 g	110 mm	100 mm	60 mm
00518	43.800.63	2-1/2"	1.68 kg / 1680 g	110 mm	100 mm	63.50 mm
00519	43.800.65	65 mm	1.65 kg / 1650 g	110 mm	100 mm	65 mm
00520	43.800.70	70 mm	2.74 kg / 2740 g	107 mm	128 mm	70 mm
00521	43.800.75	75 mm	2.59 kg / 2590 g	107 mm	128 mm	75 mm
00521M	—	3"	2.54 kg / 2540 g	107 mm	128 mm	76.20 mm
00522	43.800.80	80 mm	2.37 kg / 2370 g	107 mm	128 mm	80 mm
00523	—	85 mm	2.10 kg / 2100 g	107 mm	128 mm	85 mm
00524-13	—	90 mm	3.65 kg / 3650 g	113 mm	137 mm	90 mm

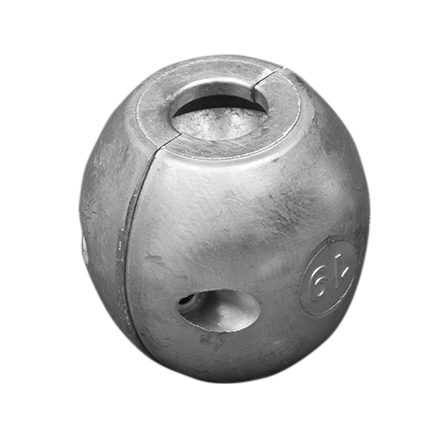

Tecnoseal 00500 / Osculati 43.800.19 – Shaft 19 mm / 3/4"

Tecnoseal Code: 00500
Osculati Reference: 43.800.19
Material: Zinc
Fastening: 2 fastening holes
Shaft Size: 19 mm / 3/4"
Weight: 0.54 kg / 540 g
Height (h): 56 mm
Overall Diameter (Ø): 58 mm
Ø1: 19 mm

Tecnoseal 00501 / Osculati 43.800.22 – Shaft 22 mm

Tecnoseal Code: 00501
Osculati Reference: 43.800.22
Material: Zinc
Fastening: 2 fastening holes
Shaft Size: 22 mm / 7/8"
Weight: 0.50 kg / 500 g
Height (h): 56 mm
Overall Diameter (Ø): 58 mm
Ø1: 22 mm

Tecnoseal 00502 / Osculati 43.800.25 – Shaft 25 mm

Tecnoseal Code: 00502
Osculati Reference: 43.800.25
Material: Zinc
Fastening: 2 fastening holes
Shaft Size: 25 mm
Weight: 0.47 kg / 470 g
Height (h): 56 mm
Overall Diameter (Ø): 58 mm
Ø1: 25 mm

Tecnoseal 00503 / Osculati 43.800.26 – Shaft 1"

Tecnoseal Code: 00503
Osculati Reference: 43.800.26
Material: Zinc
Fastening: 2 fastening holes
Shaft Size: 1"
Weight: 0.48 kg / 480 g
Height (h): 56 mm
Overall Diameter (Ø): 58 mm
Ø1: 25.40 mm

Tecnoseal 00505 / Osculati 43.800.28 – Shaft 1-1/8"

Tecnoseal Code: 00505
Osculati Reference: 43.800.28
Material: Zinc
Fastening: 2 fastening holes
Shaft Size: 1-1/8"
Weight: 0.45 kg / 450 g
Height (h): 56 mm
Overall Diameter (Ø): 58 mm
Ø1: 28.60 mm

Tecnoseal 00506 / Osculati 43.800.30 – Shaft 30 mm

Tecnoseal Code: 00506
Osculati Reference: 43.800.30
Material: Zinc
Fastening: 2 fastening holes
Shaft Size: 30 mm
Weight: 0.43 kg / 430 g
Height (h): 56 mm
Overall Diameter (Ø): 58 mm
Ø1: 30 mm

Tecnoseal 00507 / Osculati 43.800.32 – Shaft 1-1/4"

Tecnoseal Code: 00507
Osculati Reference: 43.800.32
Material: Zinc
Fastening: 2 fastening holes
Shaft Size: 1-1/4"
Weight: 0.41 kg / 410 g
Height (h): 56 mm
Overall Diameter (Ø): 58 mm
Ø1: 31.80 mm

Tecnoseal 00509 / Osculati 43.800.35 – Shaft 35 mm

Tecnoseal Code: 00509
Osculati Reference: 43.800.35
Material: Zinc
Fastening: 2 fastening holes
Shaft Size: 35 mm
Weight: 0.52 kg / 520 g
Height (h): 66 mm
Overall Diameter (Ø): 65 mm
Ø1: 35 mm

Tecnoseal 00510 / Osculati 43.800.38 – Shaft 1-1/2"

Tecnoseal Code: 00510
Osculati Reference: 43.800.38
Material: Zinc
Fastening: 2 fastening holes
Shaft Size: 1-1/2"
Weight: 0.48 kg / 480 g
Height (h): 66 mm
Overall Diameter (Ø): 65 mm
Ø1: 38 mm

Tecnoseal 00511 / Osculati 43.800.40 – Shaft 40 mm

Tecnoseal Code: 00511
Osculati Reference: 43.800.40
Material: Zinc
Fastening: 2 fastening holes
Shaft Size: 40 mm
Weight: 0.95 kg / 950 g
Height (h): 76 mm
Overall Diameter (Ø): 82 mm
Ø1: 40 mm

Tecnoseal 00511M / Osculati 43.800.44 – Shaft 1-3/4"

Tecnoseal Code: 00511M
Osculati Reference: 43.800.44
Material: Zinc
Fastening: 2 fastening holes
Shaft Size: 1-3/4"
Weight: 0.88 kg / 880 g
Height (h): 76 mm
Overall Diameter (Ø): 82 mm
Ø1: 44.40 mm

Tecnoseal 00512 / Osculati 43.800.45 – Shaft 45 mm

Tecnoseal Code: 00512
Osculati Reference: 43.800.45
Material: Zinc
Fastening: 2 fastening holes
Shaft Size: 45 mm
Weight: 0.89 kg / 890 g
Height (h): 76 mm
Overall Diameter (Ø): 82 mm
Ø1: 45 mm

Tecnoseal 00513 / Osculati 43.800.50 – Shaft 50 mm

Tecnoseal Code: 00513
Osculati Reference: 43.800.50
Material: Zinc
Fastening: 2 fastening holes
Shaft Size: 50 mm
Weight: 0.99 kg / 990 g
Height (h): 76 mm
Overall Diameter (Ø): 82 mm
Ø1: 50 mm

Tecnoseal 00514 / Osculati 43.800.51 – Shaft 2"

Tecnoseal Code: 00514
Osculati Reference: 43.800.51
Material: Zinc
Fastening: 2 fastening holes
Shaft Size: 2"
Weight: 1.03 kg / 1030 g
Height (h): 76 mm
Overall Diameter (Ø): 82 mm
Ø1: 50.80 mm

Tecnoseal 00516 / Osculati 43.800.57 – Shaft 2-1/4"

Tecnoseal Code: 00516
Osculati Reference: 43.800.57
Material: Zinc
Fastening: 4 fastening holes
Shaft Size: 2-1/4"
Weight: 1.07 kg / 1070 g
Height (h): 88 mm
Overall Diameter (Ø): 93 mm
Ø1: 57.10 mm

Tecnoseal 00517 / Osculati 43.800.60 – Shaft 60 mm

Tecnoseal Code: 00517
Osculati Reference: 43.800.60
Material: Zinc
Fastening: 4 fastening holes
Shaft Size: 60 mm
Weight: 1.71 kg / 1710 g
Height (h): 110 mm
Overall Diameter (Ø): 100 mm
Ø1: 60 mm

Tecnoseal 00518 / Osculati 43.800.63 – Shaft 2-1/2"

Tecnoseal Code: 00518
Osculati Reference: 43.800.63
Material: Zinc
Fastening: 4 fastening holes
Shaft Size: 2-1/2"
Weight: 1.68 kg / 1680 g
Height (h): 110 mm
Overall Diameter (Ø): 100 mm
Ø1: 63.50 mm

Tecnoseal 00519 / Osculati 43.800.65 – Shaft 65 mm

Tecnoseal Code: 00519
Osculati Reference: 43.800.65
Material: Zinc
Fastening: 4 fastening holes
Shaft Size: 65 mm
Weight: 1.65 kg / 1650 g
Height (h): 110 mm
Overall Diameter (Ø): 100 mm
Ø1: 65 mm

Tecnoseal 00520 / Osculati 43.800.70 – Shaft 70 mm

Tecnoseal Code: 00520
Osculati Reference: 43.800.70
Material: Zinc
Fastening: 4 fastening holes
Shaft Size: 70 mm
Weight: 2.74 kg / 2740 g
Height (h): 107 mm
Overall Diameter (Ø): 128 mm
Ø1: 70 mm

Tecnoseal 00521 / Osculati 43.800.75 – Shaft 75 mm

Tecnoseal Code: 00521
Osculati Reference: 43.800.75
Material: Zinc
Fastening: 4 fastening holes
Shaft Size: 75 mm
Weight: 2.59 kg / 2590 g
Height (h): 107 mm
Overall Diameter (Ø): 128 mm
Ø1: 75 mm

Tecnoseal 00522 / Osculati 43.800.80 – Shaft 80 mm

Tecnoseal Code: 00522
Osculati Reference: 43.800.80
Material: Zinc
Fastening: 4 fastening holes
Shaft Size: 80 mm
Weight: 2.37 kg / 2370 g
Height (h): 107 mm
Overall Diameter (Ø): 128 mm
Ø1: 80 mm

Fastening Configuration

00500–00514: 2 fastening holes
00515–00524-13: 4 fastening holes
Bolts and Nuts: Available on request

Dimensions for Model Selection

Shaft Size: Nominal shaft diameter for the selected anode
h: Overall anode height
Ø: Overall outside diameter
Ø1: Internal shaft opening diameter

For replacement selection, compare the shaft size, internal Ø1 dimension, overall diameter, height, fastening-hole configuration, Osculati cross reference where applicable and anode weight with the existing installation.
