Tecnoseal zinc USA Type shaft sacrificial anodes for marine shaft installations, available for shaft sizes from 19 mm / 3/4" up to 6-1/2" / 165 mm. The range includes metric and imperial shaft configurations with 2 fastening holes on models up to 00514USA and 4 fastening holes on larger models from 00516USA onward. Depending on model, anode height ranges from 51 to 102 mm, overall diameter from Ø54 to Ø209 mm and weight from 0.36 to 6.35 kg. USA reference designations include X-1 to X-22 and D-series references for selected metric sizes. Bolts and nuts are available on request. Select the required version according to shaft size, Ø1 opening, overall dimensions, fastening-hole configuration and weight.
- Description
- Ask a Question
-

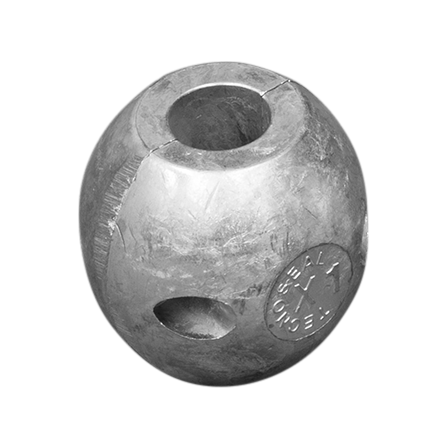

Tecnoseal Zinc USA Type Shaft Sacrificial Anodes – 2 & 4 Fastening Holes, Shaft 19 mm to 6-1/2"
The Tecnoseal Zinc USA Type Shaft Anodes are sacrificial shaft anodes available for a wide range of metric and imperial marine shaft sizes. The range covers shaft diameters from 19 mm / 3/4" up to 6-1/2" / approximately 165 mm.
Smaller USA Type models use a 2 fastening-hole configuration, while the larger versions from Tecnoseal 00516USA onward use 4 fastening holes. Bolts and nuts are available on request.
Depending on the selected version, anode height ranges from 51 to 102 mm, overall outside diameter from Ø54 to Ø209 mm and zinc anode weight from 0.36 to 6.35 kg. The catalogue also identifies the range with USA reference designations including X-series and D-series codes.
Key Features
- Brand: Tecnoseal
- Type: USA Type Shaft Anode
- Product Type: Shaft sacrificial anode
- Material: Zinc
- Shaft Size Range: 19 mm / 3/4" to 6-1/2" / approximately 165 mm
- Fastening: 2 or 4 fastening holes depending on model
- Bolts and Nuts: Available on request
- Height Range: 51–102 mm
- Overall Diameter Range: Ø54–209 mm
- Weight Range: 0.36–6.35 kg
USA Type Shaft Anodes – 2 Fastening Holes
Tecnoseal Code USA Reference Shaft Size Weight Height (h) Overall Ø Ø1 00500USA X-1 19 mm / 3/4" 0.48 kg / 480 g 51 mm 54 mm 19 mm 00501USA X-2 7/8" 0.43 kg / 430 g 51 mm 54 mm 22 mm 00502USA D-25 25 mm 0.41 kg / 410 g 51 mm 54 mm 25 mm 00503USA X-3 1" 0.40 kg / 400 g 51 mm 54 mm 25.40 mm 00504USA D-28 28 mm 0.44 kg / 440 g 51 mm 54 mm 28 mm 00505USA X-4 1-1/8" 0.36 kg / 360 g 51 mm 54 mm 28.60 mm 00506USA D-30 30 mm 0.73 kg / 730 g 67 mm 63 mm 30 mm 00507USA X-5 1-1/4" 0.48 kg / 480 g 64 mm 58 mm 31.80 mm 00509USA X-6 / D-35 35 mm 0.70 kg / 700 g 67 mm 66 mm 35 mm 00510USA X-7 1-1/2" 0.62 kg / 620 g 67 mm 66 mm 38 mm 00511USA D-40 40 mm 1.36 kg / 1360 g 76 mm 82 mm 40 mm 00511MUSA X-8 1-3/4" 1.10 kg / 1100 g 76 mm 82 mm 44.40 mm 00512USA D-45 45 mm 1.10 kg / 1100 g 76 mm 82 mm 45 mm 00512MUSA D-48 48 mm 1.05 kg / 1050 g 76 mm 82 mm 48 mm 00513USA D-50 50 mm 1.09 kg / 1090 g 76 mm 82 mm 50 mm 00514USA X-9 2" 1.10 kg / 1100 g 75 mm 82 mm 50.80 mm
USA Type Shaft Anodes – 4 Fastening Holes
Tecnoseal Code USA Reference Shaft Size Weight Height (h) Overall Ø Ø1 00516USA X-10 2-1/4" 2.82 kg / 2820 g 102 mm 107 mm 57.10 mm 00517USA D-60 60 mm 2.60 kg / 2600 g 102 mm 107 mm 60 mm 00518USA X-11 2-1/2" 2.40 kg / 2400 g 102 mm 107 mm 63.50 mm 00520USA X-12 2-3/4" 3.20 kg / 3200 g 96 mm 122 mm 70 mm 00521MUSA X-13 3" 2.70 kg / 2700 g 96 mm 122 mm 76.20 mm 00523USA X-14 3-1/4" 3.54 kg / 3540 g 95 mm 130 mm 82.60 mm 00524USA X-15 3-1/2" 3.08 kg / 3080 g 95 mm 130 mm 89 mm 00525USA X-16 3-3/4" 3.99 kg / 3990 g 95 mm 142 mm 95.30 mm 00526USA X-17 4" 3.27 kg / 3270 g 95 mm 142 mm 101.60 mm 00528USA X-18 4-1/2" 3.72 kg / 3720 g 95 mm 160 mm 114.30 mm 00529USA X-19 5" 4.26 kg / 4260 g 95 mm 171 mm 127 mm 00530USA X-20 5-1/2" 4.99 kg / 4990 g 95 mm 184 mm 140 mm 00531USA X-21 6" 5.44 kg / 5440 g 95 mm 197 mm 152.40 mm 00532USA X-22 6-1/2" 6.35 kg / 6350 g 95 mm 209 mm 165 mm
Fastening Configuration
- 00500USA–00514USA: 2 fastening holes
- 00516USA–00532USA: 4 fastening holes
- Bolts and Nuts: Available on request
Dimensions for Model Selection
- Shaft Size: Nominal metric or imperial shaft size for the selected anode
- h: Overall anode height
- Ø: Overall outside diameter
- Ø1: Internal shaft opening diameter
- USA Reference: X-series or D-series designation shown in the catalogue
For replacement selection, compare the shaft size, Ø1 opening, overall outside diameter, height, fastening-hole configuration, USA reference and anode weight with the existing installation.
-
