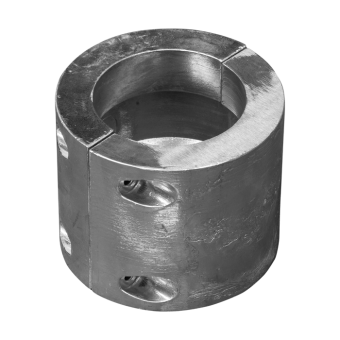

Tecnoseal Zinc Barrel Type Shaft Sacrificial Anodes, Shaft 95–130 mm

Name: Tecnoseal Zinc Barrel Type Shaft Sacrificial Anodes, Shaft 95–130 mm
SKU: Tecnoseal 00525

ID 1399738

$ 297.96

1-2 weeks delivery time

Shaft Diameter:

Size:

114x142
145x180
156x180

Item:

5700 g
5250 g
5100 g
15100 g
15200 g
14200 g
13200 g
12340 g
11400 g

Tecnoseal zinc Barrel Type shaft sacrificial anodes for marine shaft installations, manufactured with 4 fastening holes. The range includes nine models for shaft diameters from 95 to 130 mm, with anode weights from 5.10 to 15.20 kg. Depending on the model, heights range from 114 to 156 mm and overall diameters from Ø142 to Ø180 mm. Bolts and nuts are available on request. Select the required Tecnoseal model according to shaft diameter, anode height, overall diameter and weight.

Description
Ask a Question

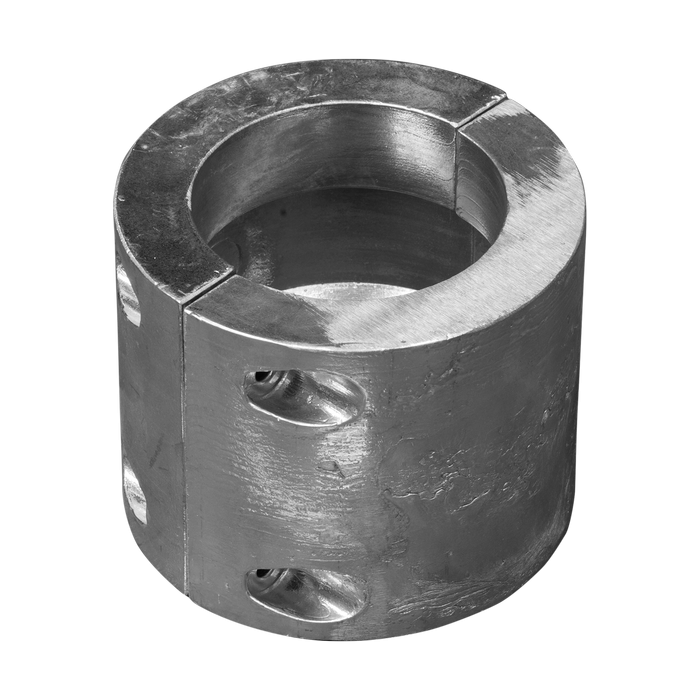

Tecnoseal Zinc Barrel Type Shaft Sacrificial Anodes – 4 Fastening Holes, Shaft 95–130 mm

The Tecnoseal Zinc Barrel Type Shaft Anodes are sacrificial shaft anodes designed for shaft diameters from 95 to 130 mm. All models in this range use a 4 fastening-hole configuration.

The range includes nine zinc models with weights from 5.10 to 15.20 kg. Depending on the selected version, anode height ranges from 114 to 156 mm and overall outside diameter from Ø142 to Ø180 mm. Bolts and nuts are available on request.

Key Features

Brand: Tecnoseal
Type: Barrel Type Shaft Anode
Product Type: Shaft sacrificial anode
Material: Zinc
Fastening: 4 fastening holes
Bolts and Nuts: Available on request
Available Models: 00525, 00526, 00526-1, 00526-2, 00527, 00528, 00529, 00530 and 00531
Shaft Size Range: 95–130 mm
Height Range: 114–156 mm
Overall Diameter Range: Ø142–180 mm
Weight Range: 5.10–15.20 kg

Available Models and Technical Specifications

Tecnoseal Code	Shaft Size	Weight	Height (h)	Overall Diameter (Ø)	Ø1
00525	Ø95 mm	5.70 kg / 5700 g / 12.57 lb	114 mm / 4.49 in	142 mm / 5.59 in	95 mm / 3.74 in
00526	Ø100 mm	5.25 kg / 5250 g / 11.57 lb	114 mm / 4.49 in	142 mm / 5.59 in	100 mm / 3.94 in
00526-1	Ø105 mm	5.10 kg / 5100 g / 11.24 lb	114 mm / 4.49 in	142 mm / 5.59 in	105 mm / 4.13 in
00526-2	Ø110 mm	15.10 kg / 15100 g / 33.29 lb	145 mm / 5.71 in	180 mm / 7.09 in	110 mm / 4.33 in
00527	Ø117 mm	15.20 kg / 15200 g / 33.51 lb	156 mm / 6.14 in	180 mm / 7.09 in	117 mm / 4.61 in
00528	Ø115 mm	14.20 kg / 14200 g / 31.31 lb	145 mm / 5.71 in	180 mm / 7.09 in	115 mm / 4.53 in
00529	Ø120 mm	13.20 kg / 13200 g / 29.10 lb	145 mm / 5.71 in	180 mm / 7.09 in	120 mm / 4.72 in
00530	Ø125 mm	12.34 kg / 12340 g / 27.21 lb	145 mm / 5.71 in	180 mm / 7.09 in	125 mm / 4.92 in
00531	Ø130 mm	11.40 kg / 11400 g / 25.13 lb	145 mm / 5.71 in	180 mm / 7.09 in	130 mm / 5.12 in

Tecnoseal 00525 – Shaft Ø95 mm

Material: Zinc
Fastening: 4 fastening holes
Shaft Size: Ø95 mm
Weight: 5.70 kg / 5700 g / 12.57 lb
Height (h): 114 mm / 4.49 in
Overall Diameter (Ø): 142 mm / 5.59 in
Ø1: 95 mm / 3.74 in

Tecnoseal 00526 – Shaft Ø100 mm

Material: Zinc
Fastening: 4 fastening holes
Shaft Size: Ø100 mm
Weight: 5.25 kg / 5250 g / 11.57 lb
Height (h): 114 mm / 4.49 in
Overall Diameter (Ø): 142 mm / 5.59 in
Ø1: 100 mm / 3.94 in

Tecnoseal 00526-1 – Shaft Ø105 mm

Material: Zinc
Fastening: 4 fastening holes
Shaft Size: Ø105 mm
Weight: 5.10 kg / 5100 g / 11.24 lb
Height (h): 114 mm / 4.49 in
Overall Diameter (Ø): 142 mm / 5.59 in
Ø1: 105 mm / 4.13 in

Tecnoseal 00526-2 – Shaft Ø110 mm

Material: Zinc
Fastening: 4 fastening holes
Shaft Size: Ø110 mm
Weight: 15.10 kg / 15100 g / 33.29 lb
Height (h): 145 mm / 5.71 in
Overall Diameter (Ø): 180 mm / 7.09 in
Ø1: 110 mm / 4.33 in

Tecnoseal 00527 – Shaft Ø117 mm

Material: Zinc
Fastening: 4 fastening holes
Shaft Size: Ø117 mm
Weight: 15.20 kg / 15200 g / 33.51 lb
Height (h): 156 mm / 6.14 in
Overall Diameter (Ø): 180 mm / 7.09 in
Ø1: 117 mm / 4.61 in

Tecnoseal 00528 – Shaft Ø115 mm

Material: Zinc
Fastening: 4 fastening holes
Shaft Size: Ø115 mm
Weight: 14.20 kg / 14200 g / 31.31 lb
Height (h): 145 mm / 5.71 in
Overall Diameter (Ø): 180 mm / 7.09 in
Ø1: 115 mm / 4.53 in

Tecnoseal 00529 – Shaft Ø120 mm

Material: Zinc
Fastening: 4 fastening holes
Shaft Size: Ø120 mm
Weight: 13.20 kg / 13200 g / 29.10 lb
Height (h): 145 mm / 5.71 in
Overall Diameter (Ø): 180 mm / 7.09 in
Ø1: 120 mm / 4.72 in

Tecnoseal 00530 – Shaft Ø125 mm

Material: Zinc
Fastening: 4 fastening holes
Shaft Size: Ø125 mm
Weight: 12.34 kg / 12340 g / 27.21 lb
Height (h): 145 mm / 5.71 in
Overall Diameter (Ø): 180 mm / 7.09 in
Ø1: 125 mm / 4.92 in

Tecnoseal 00531 – Shaft Ø130 mm

Material: Zinc
Fastening: 4 fastening holes
Shaft Size: Ø130 mm
Weight: 11.40 kg / 11400 g / 25.13 lb
Height (h): 145 mm / 5.71 in
Overall Diameter (Ø): 180 mm / 7.09 in
Ø1: 130 mm / 5.12 in

Dimensions for Model Selection

Shaft Size: Nominal shaft diameter for the selected anode
h: Overall anode height
Ø: Overall outside diameter
Ø1: Internal shaft opening diameter

For replacement selection, compare the shaft diameter, height, overall outside diameter, Ø1 dimension and anode weight with the existing installation.
