Tecnoseal aluminium Radice conical propeller sacrificial anodes for fixed pitch propeller installations, supplied as replacement anodes only. The range includes ten models for shaft sizes from Ø22–25 mm up to Ø110 mm, with weights from 0.05 to 3.00 kg. Available versions range from 39 to 134 mm in height and from Ø33 to Ø160 mm in overall diameter, with individual Ø1, Ø2 and Ø3 dimensions for replacement matching. Select the required Tecnoseal model according to shaft size, anode dimensions and weight.
- Description
- Ask a Question
-

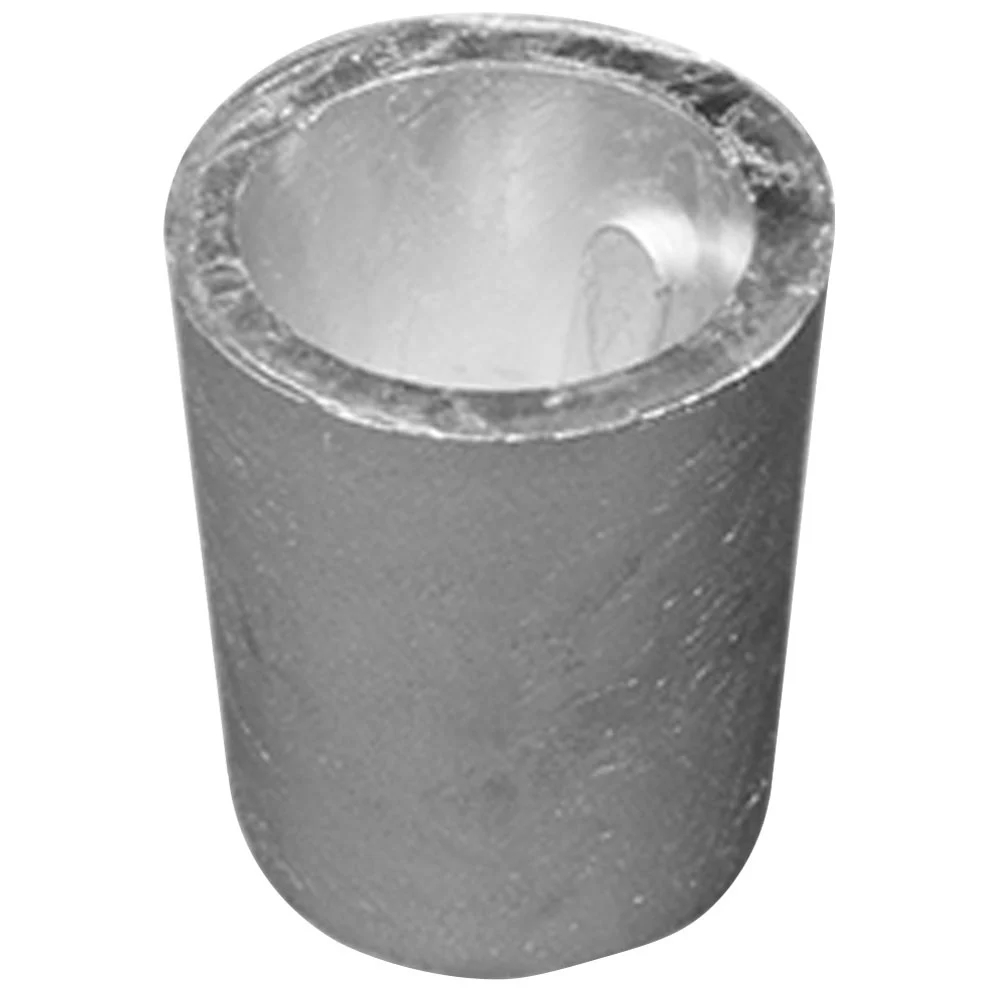

Tecnoseal Aluminium Radice Conical Propeller Sacrificial Anodes – Shaft Ø22–110 mm
The Tecnoseal Aluminium Radice Conical Propeller Anodes are replacement sacrificial anodes for Radice fixed pitch propeller installations. The range includes ten aluminium models for different shaft sizes and conical anode dimensions.
The available models cover shaft sizes from Ø22–25 mm up to Ø110 mm, with weights from 0.05 to 3.00 kg. Overall heights range from 39 to 134 mm and outside diameters from Ø33 to Ø160 mm. Each model has specific Ø1, Ø2 and Ø3 dimensions for replacement matching.
Tecnoseal 00400AL corresponds to Osculati 43.231.01, 00401AL to 43.231.02, 00402AL to 43.231.03, 00403AL to 43.231.04, 00404AL to 43.231.05, 00405AL to 43.231.06 and 00407AL to 43.231.08.
Key Features
- Brand: Tecnoseal
- Type: Radice Propeller Anode – Conical Type
- Application: Fixed Pitch Propeller
- Supply: Replacement Anode Only
- Material: Aluminium
- Available Models: 00400AL, 00401AL, 00402AL, 00403AL, 00404AL, 00405AL, 00406AL, 00407AL, 00409AL and 00409/1AL
- Osculati Cross References: 00400AL / 43.231.01; 00401AL / 43.231.02; 00402AL / 43.231.03; 00403AL / 43.231.04; 00404AL / 43.231.05; 00405AL / 43.231.06; 00407AL / 43.231.08
- Shaft Size Range: Ø22–25 mm to Ø110 mm
- Height Range: 39–134 mm
- Overall Diameter Range: Ø33–160 mm
- Weight Range: 0.05–3.00 kg
Available Models and Technical Specifications
Tecnoseal Code Osculati Reference Shaft Size Weight Height (h) Ø Ø1 Ø2 Ø3 00400AL 43.231.01 Ø22–25 mm 0.05 kg / 50 g 39 mm 33 mm 25 mm 6.5 mm 11 mm 00401AL 43.231.02 Ø30 mm 0.11 kg / 110 g 53 mm 41 mm 32 mm 8.5 mm 14 mm 00402AL 43.231.03 Ø35 mm 0.15 kg / 150 g 62 mm 46 mm 37 mm 8.5 mm 13.5 mm 00403AL 43.231.04 Ø40 mm 0.20 kg / 200 g 68 mm 51 mm 42 mm 8.5 mm 16 mm 00404AL 43.231.05 Ø45 mm 0.33 kg / 330 g 76 mm 61 mm 48 mm 11 mm 22 mm 00405AL 43.231.06 Ø50 mm 0.45 kg / 450 g 84 mm 72 mm 57 mm 11 mm 22 mm 00406AL — Ø55 mm 0.44 kg / 440 g 86 mm 75 mm 65 mm 11 mm 29 mm 00407AL 43.231.08 Ø60 mm 0.72 kg / 720 g 98 mm 83 mm 71 mm 11 mm 22 mm 00409AL — Ø70/100 mm 0.87 kg / 870 g 96 mm 97 mm 84 mm 11 mm 22 mm 00409/1AL — Ø110 mm 3.00 kg / 3000 g 134 mm 160 mm 130 mm 15 mm 24 mm
Tecnoseal 00400AL / Osculati 43.231.01 – Shaft Ø22–25 mm
- Tecnoseal Code: 00400AL
- Osculati Reference: 43.231.01
- Material: Aluminium
- Supply: Replacement anode only
- Shaft Size: Ø22–25 mm
- Weight: 0.05 kg / 50 g / 0.11 lb
- Height (h): 39 mm / 1.54 in
- Overall Diameter (Ø): 33 mm / 1.30 in
- Ø1: 25 mm / 0.98 in
- Ø2: 6.5 mm / 0.26 in
- Ø3: 11 mm / 0.43 in
Tecnoseal 00401AL / Osculati 43.231.02 – Shaft Ø30 mm
- Tecnoseal Code: 00401AL
- Osculati Reference: 43.231.02
- Material: Aluminium
- Supply: Replacement anode only
- Shaft Size: Ø30 mm
- Weight: 0.11 kg / 110 g / 0.24 lb
- Height (h): 53 mm / 2.09 in
- Overall Diameter (Ø): 41 mm / 1.61 in
- Ø1: 32 mm / 1.26 in
- Ø2: 8.5 mm / 0.33 in
- Ø3: 14 mm / 0.55 in
Tecnoseal 00402AL / Osculati 43.231.03 – Shaft Ø35 mm
- Tecnoseal Code: 00402AL
- Osculati Reference: 43.231.03
- Material: Aluminium
- Supply: Replacement anode only
- Shaft Size: Ø35 mm
- Weight: 0.15 kg / 150 g / 0.33 lb
- Height (h): 62 mm / 2.44 in
- Overall Diameter (Ø): 46 mm / 1.81 in
- Ø1: 37 mm / 1.46 in
- Ø2: 8.5 mm / 0.33 in
- Ø3: 13.5 mm / 0.53 in
Tecnoseal 00403AL / Osculati 43.231.04 – Shaft Ø40 mm
- Tecnoseal Code: 00403AL
- Osculati Reference: 43.231.04
- Material: Aluminium
- Supply: Replacement anode only
- Shaft Size: Ø40 mm
- Weight: 0.20 kg / 200 g / 0.44 lb
- Height (h): 68 mm / 2.68 in
- Overall Diameter (Ø): 51 mm / 2.01 in
- Ø1: 42 mm / 1.65 in
- Ø2: 8.5 mm / 0.33 in
- Ø3: 16 mm / 0.63 in
Tecnoseal 00404AL / Osculati 43.231.05 – Shaft Ø45 mm
- Tecnoseal Code: 00404AL
- Osculati Reference: 43.231.05
- Material: Aluminium
- Supply: Replacement anode only
- Shaft Size: Ø45 mm
- Weight: 0.33 kg / 330 g / 0.73 lb
- Height (h): 76 mm / 2.99 in
- Overall Diameter (Ø): 61 mm / 2.40 in
- Ø1: 48 mm / 1.89 in
- Ø2: 11 mm / 0.43 in
- Ø3: 22 mm / 0.87 in
Tecnoseal 00405AL / Osculati 43.231.06 – Shaft Ø50 mm
- Tecnoseal Code: 00405AL
- Osculati Reference: 43.231.06
- Material: Aluminium
- Supply: Replacement anode only
- Shaft Size: Ø50 mm
- Weight: 0.45 kg / 450 g / 0.99 lb
- Height (h): 84 mm / 3.31 in
- Overall Diameter (Ø): 72 mm / 2.83 in
- Ø1: 57 mm / 2.24 in
- Ø2: 11 mm / 0.43 in
- Ø3: 22 mm / 0.87 in
Tecnoseal 00406AL – Shaft Ø55 mm
- Material: Aluminium
- Supply: Replacement anode only
- Shaft Size: Ø55 mm
- Weight: 0.44 kg / 440 g / 0.97 lb
- Height (h): 86 mm / 3.39 in
- Overall Diameter (Ø): 75 mm / 2.95 in
- Ø1: 65 mm / 2.56 in
- Ø2: 11 mm / 0.43 in
- Ø3: 29 mm / 1.14 in
Tecnoseal 00407AL / Osculati 43.231.08 – Shaft Ø60 mm
- Tecnoseal Code: 00407AL
- Osculati Reference: 43.231.08
- Material: Aluminium
- Supply: Replacement anode only
- Shaft Size: Ø60 mm
- Weight: 0.72 kg / 720 g / 1.59 lb
- Height (h): 98 mm / 3.86 in
- Overall Diameter (Ø): 83 mm / 3.27 in
- Ø1: 71 mm / 2.80 in
- Ø2: 11 mm / 0.43 in
- Ø3: 22 mm / 0.87 in
Tecnoseal 00409AL – Shaft Ø70/100 mm
- Material: Aluminium
- Supply: Replacement anode only
- Shaft Size: Ø70/100 mm
- Weight: 0.87 kg / 870 g / 1.92 lb
- Height (h): 96 mm / 3.78 in
- Overall Diameter (Ø): 97 mm / 3.82 in
- Ø1: 84 mm / 3.31 in
- Ø2: 11 mm / 0.43 in
- Ø3: 22 mm / 0.87 in
Tecnoseal 00409/1AL – Shaft Ø110 mm
- Material: Aluminium
- Supply: Replacement anode only
- Shaft Size: Ø110 mm
- Weight: 3.00 kg / 3000 g / 6.61 lb
- Height (h): 134 mm / 5.28 in
- Overall Diameter (Ø): 160 mm / 6.30 in
- Ø1: 130 mm / 5.12 in
- Ø2: 15 mm / 0.59 in
- Ø3: 24 mm / 0.94 in
Dimensions for Model Selection
- Shaft Size: Nominal shaft size for the corresponding Radice installation
- h: Overall anode height
- Ø: Overall outside diameter
- Ø1: Internal diameter
- Ø2: Central mounting-hole diameter
- Ø3: Internal lower diameter
For replacement selection, compare the shaft size, overall dimensions, Ø1, Ø2 and Ø3 dimensions and anode weight with the existing installation.
-
