Tecnoseal aluminium Radice conical propeller sacrificial anodes for fixed pitch propeller installations, supplied complete with a brass plug. The range includes nine standard brass plug models and selected non-standard configurations for shaft sizes from Ø22–25 mm up to Ø70/100 mm. Available versions range from 20 to 46 mm in h dimension, 18 to 46 mm in h1 dimension and from Ø37 to Ø100 mm in overall diameter, with weights from 0.11 to 4.52 kg. Standard models use the corresponding Radice brass plug thread, while the non-standard versions include Tecnoseal 00410-2AL with 18x1.5 thread, 00413-1AL with 26x2 thread and 00414-2AL with 30x2 thread. Select the required version according to shaft size, plug type, thread size, dimensions and weight.
- Description
- Ask a Question
-

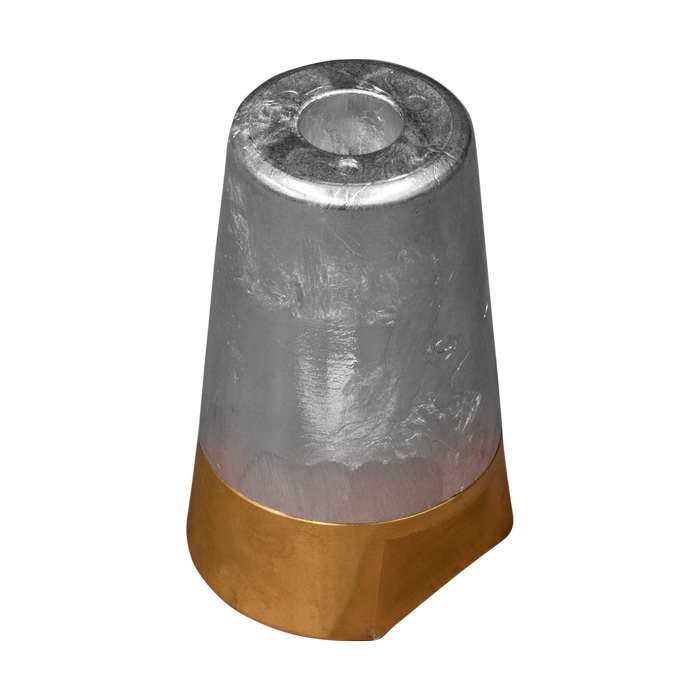

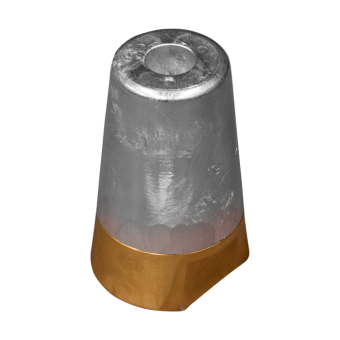

Tecnoseal Aluminium Radice Conical Propeller Sacrificial Anodes with Brass Plug – Standard & Non-Standard, Shaft Ø22–100 mm
The Tecnoseal Aluminium Radice Conical Propeller Anodes are designed for fixed pitch propeller installations and are supplied complete with a brass plug. The range combines standard brass plug models with selected non-standard plug configurations.
The available versions cover shaft sizes from Ø22–25 mm up to Ø70/100 mm. Standard models are available across the full shaft-size range, while selected non-standard configurations provide alternative thread dimensions for Ø22–25 mm, Ø40 mm and Ø45 mm shaft installations.
Confirmed Osculati cross references include Tecnoseal 00410AL / Osculati 43.124.20, 00411AL / 43.124.30, 00412AL / 43.124.35, 00414AL / 43.124.46, 00415AL / 43.124.50, 00410-2AL / 43.124.25, 00413-1AL / 43.124.40 and 00414-2AL / 43.124.45.
Key Features
- Brand: Tecnoseal
- Type: Radice Propeller Anode – Conical Type
- Application: Fixed Pitch Propeller
- Material: Aluminium
- Supply: Complete with Brass Plug
- Configurations: Standard and Non-Standard Brass Plug
- Standard Models: 00410AL, 00411AL, 00412AL, 00413AL, 00414AL, 00415AL, 00416AL, 00417AL and 00419AL
- Non-Standard Models: 00410-2AL, 00413-1AL and 00414-2AL
- Osculati Cross References: 00410AL / 43.124.20; 00411AL / 43.124.30; 00412AL / 43.124.35; 00414AL / 43.124.46; 00415AL / 43.124.50; 00410-2AL / 43.124.25; 00413-1AL / 43.124.40; 00414-2AL / 43.124.45
- Shaft Size Range: Ø22–25 mm to Ø70/100 mm
- Overall Diameter Range: Ø37–100 mm
- h Range: 20–46 mm
- h1 Range: 18–46 mm
- Weight Range: 0.11–4.52 kg
Available Models and Technical Specifications
Tecnoseal Code Osculati Reference Plug Type Shaft Size Weight h h1 Ø Thread (m) 00410AL 43.124.20 Standard Ø22–25 mm 0.23 kg / 230 g 20 mm 18 mm 37 mm 16x1.5 00411AL 43.124.30 Standard Ø30 mm 0.37 kg / 370 g 22 mm 21 mm 45 mm 20x1.5 00412AL 43.124.35 Standard Ø35 mm 0.51 kg / 510 g 24 mm 24 mm 50 mm 24x2 00413AL — Standard Ø40 mm 0.73 kg / 730 g 27 mm 27 mm 55 mm 24x2 00414AL 43.124.46 Standard Ø45 mm 1.11 kg / 1110 g 30 mm 30 mm 65 mm 33x2 00415AL 43.124.50 Standard Ø50 mm 1.56 kg / 1560 g 30 mm 31 mm 74 mm 36x3 00416AL — Standard Ø55 mm 2.10 kg / 2100 g 40 mm 41 mm 79 mm 40x3 00417AL — Standard Ø60 mm 2.68 kg / 2680 g 41 mm 41 mm 90 mm 45x3 00419AL — Standard Ø70/100 mm 4.52 kg / 4520 g 46 mm 46 mm 100 mm 50x3 00410-2AL 43.124.25 Non-Standard Ø22–25 mm 0.11 kg / 110 g 20 mm 18 mm 37 mm 18x1.5 00413-1AL 43.124.40 Non-Standard Ø40 mm 0.43 kg / 430 g 27 mm 27 mm 55 mm 26x2 00414-2AL 43.124.45 Non-Standard Ø45 mm 0.64 kg / 640 g 30 mm 30 mm 65 mm 30x2
Tecnoseal 00410AL / Osculati 43.124.20 – Shaft Ø22–25 mm
- Tecnoseal Code: 00410AL
- Osculati Reference: 43.124.20
- Material: Aluminium
- Plug Type: Standard
- Supply: Complete with standard brass plug
- Shaft Size: Ø22–25 mm
- Weight: 0.23 kg / 230 g / 0.51 lb
- h: 20 mm / 0.79 in
- h1: 18 mm / 0.71 in
- Overall Diameter (Ø): 37 mm / 1.46 in
- Thread (m): 16x1.5
Tecnoseal 00411AL / Osculati 43.124.30 – Shaft Ø30 mm
- Tecnoseal Code: 00411AL
- Osculati Reference: 43.124.30
- Material: Aluminium
- Plug Type: Standard
- Supply: Complete with standard brass plug
- Shaft Size: Ø30 mm
- Weight: 0.37 kg / 370 g / 0.82 lb
- h: 22 mm / 0.87 in
- h1: 21 mm / 0.83 in
- Overall Diameter (Ø): 45 mm / 1.77 in
- Thread (m): 20x1.5
Tecnoseal 00412AL / Osculati 43.124.35 – Shaft Ø35 mm
- Tecnoseal Code: 00412AL
- Osculati Reference: 43.124.35
- Material: Aluminium
- Plug Type: Standard
- Supply: Complete with standard brass plug
- Shaft Size: Ø35 mm
- Weight: 0.51 kg / 510 g / 1.12 lb
- h: 24 mm / 0.94 in
- h1: 24 mm / 0.94 in
- Overall Diameter (Ø): 50 mm / 1.97 in
- Thread (m): 24x2
Tecnoseal 00413AL – Shaft Ø40 mm
- Material: Aluminium
- Plug Type: Standard
- Supply: Complete with standard brass plug
- Shaft Size: Ø40 mm
- Weight: 0.73 kg / 730 g / 1.61 lb
- h: 27 mm / 1.06 in
- h1: 27 mm / 1.06 in
- Overall Diameter (Ø): 55 mm / 2.17 in
- Thread (m): 24x2
Tecnoseal 00414AL / Osculati 43.124.46 – Shaft Ø45 mm
- Tecnoseal Code: 00414AL
- Osculati Reference: 43.124.46
- Material: Aluminium
- Plug Type: Standard
- Supply: Complete with standard brass plug
- Shaft Size: Ø45 mm
- Weight: 1.11 kg / 1110 g / 2.45 lb
- h: 30 mm / 1.18 in
- h1: 30 mm / 1.18 in
- Overall Diameter (Ø): 65 mm / 2.56 in
- Thread (m): 33x2
Tecnoseal 00415AL / Osculati 43.124.50 – Shaft Ø50 mm
- Tecnoseal Code: 00415AL
- Osculati Reference: 43.124.50
- Material: Aluminium
- Plug Type: Standard
- Supply: Complete with standard brass plug
- Shaft Size: Ø50 mm
- Weight: 1.56 kg / 1560 g / 3.44 lb
- h: 30 mm / 1.18 in
- h1: 31 mm / 1.22 in
- Overall Diameter (Ø): 74 mm / 2.91 in
- Thread (m): 36x3
Tecnoseal 00416AL – Shaft Ø55 mm
- Material: Aluminium
- Plug Type: Standard
- Supply: Complete with standard brass plug
- Shaft Size: Ø55 mm
- Weight: 2.10 kg / 2100 g / 4.63 lb
- h: 40 mm / 1.57 in
- h1: 41 mm / 1.61 in
- Overall Diameter (Ø): 79 mm / 3.11 in
- Thread (m): 40x3
Tecnoseal 00417AL – Shaft Ø60 mm
- Material: Aluminium
- Plug Type: Standard
- Supply: Complete with standard brass plug
- Shaft Size: Ø60 mm
- Weight: 2.68 kg / 2680 g / 5.91 lb
- h: 41 mm / 1.61 in
- h1: 41 mm / 1.61 in
- Overall Diameter (Ø): 90 mm / 3.54 in
- Thread (m): 45x3
Tecnoseal 00419AL – Shaft Ø70/100 mm
- Material: Aluminium
- Plug Type: Standard
- Supply: Complete with standard brass plug
- Shaft Size: Ø70/100 mm
- Weight: 4.52 kg / 4520 g / 9.96 lb
- h: 46 mm / 1.81 in
- h1: 46 mm / 1.81 in
- Overall Diameter (Ø): 100 mm / 3.94 in
- Thread (m): 50x3
Tecnoseal 00410-2AL / Osculati 43.124.25 – Shaft Ø22–25 mm, Non-Standard Plug
- Tecnoseal Code: 00410-2AL
- Osculati Reference: 43.124.25
- Material: Aluminium
- Plug Type: Non-Standard
- Supply: Complete with non-standard brass plug
- Shaft Size: Ø22–25 mm
- Weight: 0.11 kg / 110 g / 0.24 lb
- h: 20 mm / 0.79 in
- h1: 18 mm / 0.71 in
- Overall Diameter (Ø): 37 mm / 1.46 in
- Thread (m): 18x1.5
Tecnoseal 00413-1AL / Osculati 43.124.40 – Shaft Ø40 mm, Non-Standard Plug
- Tecnoseal Code: 00413-1AL
- Osculati Reference: 43.124.40
- Material: Aluminium
- Plug Type: Non-Standard
- Supply: Complete with non-standard brass plug
- Shaft Size: Ø40 mm
- Weight: 0.43 kg / 430 g / 0.95 lb
- h: 27 mm / 1.06 in
- h1: 27 mm / 1.06 in
- Overall Diameter (Ø): 55 mm / 2.17 in
- Thread (m): 26x2
Tecnoseal 00414-2AL / Osculati 43.124.45 – Shaft Ø45 mm, Non-Standard Plug
- Tecnoseal Code: 00414-2AL
- Osculati Reference: 43.124.45
- Material: Aluminium
- Plug Type: Non-Standard
- Supply: Complete with non-standard brass plug
- Shaft Size: Ø45 mm
- Weight: 0.64 kg / 640 g / 1.41 lb
- h: 30 mm / 1.18 in
- h1: 30 mm / 1.18 in
- Overall Diameter (Ø): 65 mm / 2.56 in
- Thread (m): 30x2
Dimensions and Plug Selection
- Shaft Size: Nominal shaft size for the corresponding Radice installation
- h: Anode body height
- h1: Overall plug / anode profile height according to the catalogue drawing
- Ø: Overall outside diameter
- m: Brass plug thread size
- Plug Type: Standard or Non-Standard according to the selected Tecnoseal model
For replacement selection, compare the shaft size, plug type, h, h1, overall diameter and brass plug thread size with the existing installation.
-
