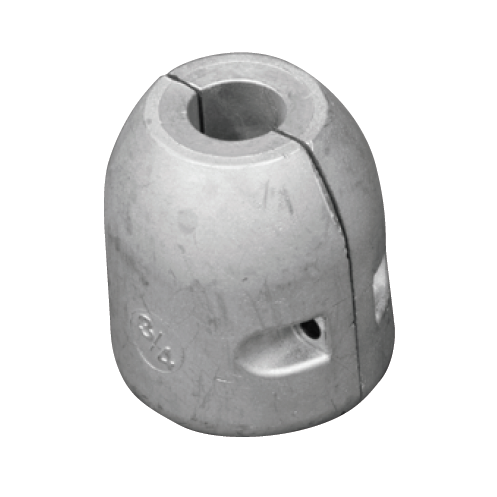

Tecnoseal Zinc UK Type Shaft Sacrificial Anodes, Shaft 19–50 mm

Name: Tecnoseal Zinc UK Type Shaft Sacrificial Anodes, Shaft 19–50 mm
SKU: Tecnoseal 00500UK

ID 1399754

$ 70.56

1-2 weeks delivery time

Shaft Diameter:

25
30
35
40
45
50
7/8"
1-1/8"
1-1/4"
1-1/2"
1-3/4"
3/4"
1"

Item:

1250 g
600 g
750 g
1030 g
690 g
710 g
670 g
560 g
1280 g
1120 g
2470 g
2440 g
2380 g

Tecnoseal zinc UK Type shaft sacrificial anodes for marine shaft installations, available in metric and imperial shaft configurations from 19 mm / 3/4" up to 50 mm. The range includes thirteen models with shaft openings from 19 to 50 mm, heights from 65 to 100 mm, overall diameters from Ø56 to Ø85 mm and weights from 0.56 to 2.47 kg. Available imperial configurations include 3/4", 7/8", 1", 1-1/8", 1-1/4", 1-1/2" and 1-3/4". Bolts and nuts are not included. Select the required Tecnoseal model according to shaft size, height, overall diameter and weight.

Description
Ask a Question

Tecnoseal Zinc UK Type Shaft Sacrificial Anodes – Shaft 19–50 mm

The Tecnoseal Zinc UK Type Shaft Anodes are sacrificial anodes for marine shaft installations. The range includes metric and imperial shaft-size configurations from 19 mm / 3/4" up to 50 mm.

Available models have shaft openings from 19 to 50 mm, heights from 65 to 100 mm and overall outside diameters from Ø56 to Ø85 mm. Zinc anode weights range from 0.56 to 2.47 kg. Bolts and nuts are not included.

Key Features

Brand: Tecnoseal
Type: UK Type Shaft Anode
Product Type: Shaft sacrificial anode
Material: Zinc
Available Models: 00500UK, 00501UK, 00502UK, 00503UK, 00505UK, 00506UK, 00507UK, 00509UK, 00510UK, 00511UK, 00511MUK, 00512UK and 00513UK
Shaft Size Range: 19 mm / 3/4" to 50 mm
Height Range: 65–100 mm
Overall Diameter Range: Ø56–85 mm
Weight Range: 0.56–2.47 kg
Bolts and Nuts: Not included

Available Models and Technical Specifications

Tecnoseal Code	Shaft Size	Weight	Height (h)	Overall Ø	Ø1
00500UK	19 mm / 3/4"	0.75 kg / 750 g / 1.65 lb	65 mm / 2.56 in	56 mm / 2.20 in	19 mm / 0.75 in
00501UK	7/8"	0.71 kg / 710 g / 1.57 lb	65 mm / 2.56 in	56 mm / 2.20 in	22 mm / 0.87 in
00502UK	25 mm	0.69 kg / 690 g / 1.52 lb	65 mm / 2.56 in	56 mm / 2.20 in	25 mm / 0.98 in
00503UK	1"	0.67 kg / 670 g / 1.48 lb	65 mm / 2.56 in	56 mm / 2.20 in	25.40 mm / 1.00 in
00505UK	1-1/8"	0.60 kg / 600 g / 1.32 lb	65 mm / 2.56 in	56 mm / 2.20 in	28.60 mm / 1.13 in
00506UK	30 mm	0.56 kg / 560 g / 1.23 lb	65 mm / 2.56 in	56 mm / 2.20 in	30 mm / 1.18 in
00507UK	1-1/4"	1.28 kg / 1280 g / 2.82 lb	65 mm / 2.56 in	70 mm / 2.76 in	31.80 mm / 1.25 in
00509UK	35 mm	1.25 kg / 1250 g / 2.76 lb	78 mm / 3.07 in	70 mm / 2.76 in	35 mm / 1.38 in
00510UK	1-1/2"	1.12 kg / 1120 g / 2.47 lb	78 mm / 3.07 in	70 mm / 2.76 in	38 mm / 1.50 in
00511UK	40 mm	1.03 kg / 1030 g / 2.27 lb	78 mm / 3.07 in	70 mm / 2.76 in	40 mm / 1.57 in
00511MUK	1-3/4"	2.47 kg / 2470 g / 5.45 lb	100 mm / 3.94 in	85 mm / 3.35 in	44.45 mm / 1.75 in
00512UK	45 mm	2.44 kg / 2440 g / 5.38 lb	100 mm / 3.94 in	85 mm / 3.35 in	45 mm / 1.77 in
00513UK	50 mm	2.38 kg / 2380 g / 5.25 lb	100 mm / 3.94 in	85 mm / 3.35 in	50 mm / 1.97 in
