Tecnoseal Aluminium Radice Hexagonal Propeller Sacrificial Anodes, Shaft Ø22–100 mm

ID 1399503

$ 6.74

1-2 weeks delivery time

Shaft Diameter:

22-25
30
35
40
45
50
55
60

Item:

300 g
140 g
50 g
400 g
650 g
100 g
180 g
370 g

Tecnoseal aluminium Radice hexagonal-type propeller sacrificial anodes for fixed pitch propeller installations, supplied as replacement anodes only. The range includes nine models for shaft sizes from Ø22–25 mm up to Ø70/100 mm, with weights from 0.05 to 1.01 kg. Available versions range from 39 to 98 mm in height and from Ø33 to Ø97 mm in overall diameter, with individual c, Ø1 and Ø2 dimensions for replacement matching. Select the required model according to shaft size, anode dimensions and weight.

Description
Ask a Question

Tecnoseal Aluminium Radice Hexagonal Propeller Sacrificial Anodes – Replacement Anode Only, Shaft Ø22–100 mm

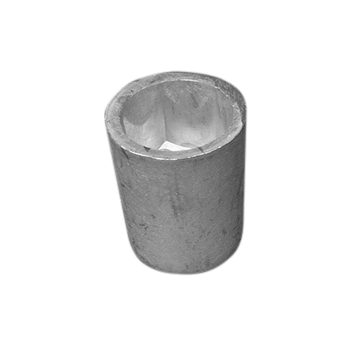

The Tecnoseal Aluminium Radice Hexagonal Propeller Anodes are replacement sacrificial anodes for Radice fixed pitch propeller installations. The range includes nine aluminium models designed for different shaft sizes and hexagonal anode dimensions.

The available versions cover shaft sizes from Ø22–25 mm up to Ø70/100 mm, with weights from 0.05 to 1.01 kg. Depending on the model, overall height ranges from 39 to 98 mm and overall diameter from Ø33 to Ø97 mm. Each version has specific c, Ø1 and Ø2 dimensions for replacement matching.

Tecnoseal 00400EAL corresponds to Osculati 43.265.51, Tecnoseal 00401EAL to Osculati 43.265.52, 00402EAL to Osculati 43.265.53, 00403EAL to Osculati 43.265.54, 00404EAL to Osculati 43.265.55, 00405EAL to Osculati 43.265.56, 00406EAL to Osculati 43.265.66 and 00407EAL to Osculati 43.265.08.

Key Features

Brand: Tecnoseal
Type: Radice Propeller Anode – Hexagonal Type
Application: Fixed Pitch Propeller
Supply: Replacement Anode Only
Material: Aluminium
Available Models: 00400EAL, 00401EAL, 00402EAL, 00403EAL, 00404EAL, 00405EAL, 00406EAL, 00407EAL and 00409EAL
Osculati Cross References: 00400EAL / 43.265.51; 00401EAL / 43.265.52; 00402EAL / 43.265.53; 00403EAL / 43.265.54; 00404EAL / 43.265.55; 00405EAL / 43.265.56; 00406EAL / 43.265.66; 00407EAL / 43.265.08
Shaft Size Range: Ø22–25 mm to Ø70/100 mm
Height Range: 39–98 mm
Overall Diameter Range: Ø33–97 mm
Weight Range: 0.05–1.01 kg

Available Models and Technical Specifications

Tecnoseal Code	Osculati Reference	Shaft Size	Weight	c	Height (h)	Ø	Ø1	Ø2
00400EAL	43.265.51	Ø22–25 mm	0.05 kg / 50 g	22 mm	39 mm	33 mm	7 mm	10 mm
00401EAL	43.265.52	Ø30 mm	0.10 kg / 100 g	27 mm	53 mm	41 mm	9 mm	14 mm
00402EAL	43.265.53	Ø35 mm	0.14 kg / 140 g	32 mm	62 mm	46 mm	9 mm	14 mm
00403EAL	43.265.54	Ø40 mm	0.18 kg / 180 g	36 mm	67 mm	51 mm	9 mm	15 mm
00404EAL	43.265.55	Ø45 mm	0.30 kg / 300 g	41 mm	76 mm	61 mm	11 mm	22 mm
00405EAL	43.265.56	Ø50 mm	0.37 kg / 370 g	46 mm	84 mm	72 mm	11 mm	21 mm
00406EAL	43.265.66	Ø55 mm	0.40 kg / 400 g	50 mm	87 mm	74 mm	11 mm	20 mm
00407EAL	43.265.08	Ø60 mm	0.65 kg / 650 g	55 mm	98 mm	82 mm	11 mm	21 mm
00409EAL	—	Ø70/100 mm	1.01 kg / 1010 g	54 mm	97 mm	97 mm	11 mm	21 mm

Tecnoseal 00400EAL / Osculati 43.265.51 – Shaft Ø22–25 mm

Tecnoseal Code: 00400EAL
Osculati Reference: 43.265.51
Material: Aluminium
Supply: Replacement anode only
Shaft Size: Ø22–25 mm
Weight: 0.05 kg / 50 g / 0.11 lb
c: 22 mm / 0.87 in
Height (h): 39 mm / 1.54 in
Overall Diameter (Ø): 33 mm / 1.30 in
Ø1: 7 mm / 0.28 in
Ø2: 10 mm / 0.39 in

Tecnoseal 00401EAL / Osculati 43.265.52 – Shaft Ø30 mm

Tecnoseal Code: 00401EAL
Osculati Reference: 43.265.52
Material: Aluminium
Supply: Replacement anode only
Shaft Size: Ø30 mm
Weight: 0.10 kg / 100 g / 0.22 lb
c: 27 mm / 1.06 in
Height (h): 53 mm / 2.09 in
Overall Diameter (Ø): 41 mm / 1.61 in
Ø1: 9 mm / 0.35 in
Ø2: 14 mm / 0.55 in

Tecnoseal 00402EAL / Osculati 43.265.53 – Shaft Ø35 mm

Tecnoseal Code: 00402EAL
Osculati Reference: 43.265.53
Material: Aluminium
Supply: Replacement anode only
Shaft Size: Ø35 mm
Weight: 0.14 kg / 140 g / 0.31 lb
c: 32 mm / 1.26 in
Height (h): 62 mm / 2.44 in
Overall Diameter (Ø): 46 mm / 1.81 in
Ø1: 9 mm / 0.35 in
Ø2: 14 mm / 0.55 in

Tecnoseal 00403EAL / Osculati 43.265.54 – Shaft Ø40 mm

Tecnoseal Code: 00403EAL
Osculati Reference: 43.265.54
Material: Aluminium
Supply: Replacement anode only
Shaft Size: Ø40 mm
Weight: 0.18 kg / 180 g / 0.40 lb
c: 36 mm / 1.42 in
Height (h): 67 mm / 2.64 in
Overall Diameter (Ø): 51 mm / 2.01 in
Ø1: 9 mm / 0.35 in
Ø2: 15 mm / 0.59 in

Tecnoseal 00404EAL / Osculati 43.265.55 – Shaft Ø45 mm

Tecnoseal Code: 00404EAL
Osculati Reference: 43.265.55
Material: Aluminium
Supply: Replacement anode only
Shaft Size: Ø45 mm
Weight: 0.30 kg / 300 g / 0.66 lb
c: 41 mm / 1.61 in
Height (h): 76 mm / 2.99 in
Overall Diameter (Ø): 61 mm / 2.40 in
Ø1: 11 mm / 0.43 in
Ø2: 22 mm / 0.87 in

Tecnoseal 00405EAL / Osculati 43.265.56 – Shaft Ø50 mm

Tecnoseal Code: 00405EAL
Osculati Reference: 43.265.56
Material: Aluminium
Supply: Replacement anode only
Shaft Size: Ø50 mm
Weight: 0.37 kg / 370 g / 0.82 lb
c: 46 mm / 1.81 in
Height (h): 84 mm / 3.31 in
Overall Diameter (Ø): 72 mm / 2.83 in
Ø1: 11 mm / 0.43 in
Ø2: 21 mm / 0.83 in

Tecnoseal 00406EAL / Osculati 43.265.66 – Shaft Ø55 mm

Tecnoseal Code: 00406EAL
Osculati Reference: 43.265.66
Material: Aluminium
Supply: Replacement anode only
Shaft Size: Ø55 mm
Weight: 0.40 kg / 400 g / 0.88 lb
c: 50 mm / 1.97 in
Height (h): 87 mm / 3.43 in
Overall Diameter (Ø): 74 mm / 2.91 in
Ø1: 11 mm / 0.43 in
Ø2: 20 mm / 0.79 in

Tecnoseal 00407EAL / Osculati 43.265.08 – Shaft Ø60 mm

Tecnoseal Code: 00407EAL
Osculati Reference: 43.265.08
Material: Aluminium
Supply: Replacement anode only
Shaft Size: Ø60 mm
Weight: 0.65 kg / 650 g / 1.43 lb
c: 55 mm / 2.17 in
Height (h): 98 mm / 3.86 in
Overall Diameter (Ø): 82 mm / 3.23 in
Ø1: 11 mm / 0.43 in
Ø2: 21 mm / 0.83 in

Tecnoseal 00409EAL – Shaft Ø70/100 mm

Tecnoseal Code: 00409EAL
Material: Aluminium
Supply: Replacement anode only
Shaft Size: Ø70/100 mm
Weight: 1.01 kg / 1010 g / 2.23 lb
c: 54 mm / 2.13 in
Height (h): 97 mm / 3.82 in
Overall Diameter (Ø): 97 mm / 3.82 in
Ø1: 11 mm / 0.43 in
Ø2: 21 mm / 0.83 in

Dimensions for Model Selection

Shaft Size: Nominal shaft size for the corresponding Radice installation
c: Hexagonal / lower body dimension according to the catalogue drawing
h: Overall anode height
Ø: Overall outside diameter
Ø1: Central mounting-hole diameter
Ø2: Upper internal diameter

For replacement selection, compare the shaft size, c, overall height, outside diameter, Ø1 and Ø2 dimensions and anode weight with the existing installation.
