Tecnoseal zinc shaft collar sacrificial anodes available in Limited Clearance, Slim, Medium and Large Size configurations for shaft diameters from 19 mm / 3/4" up to 360 mm. The range includes metric and imperial shaft sizes, with collar heights from 18 to 60 mm, overall diameters from Ø61 to Ø511 mm and weights from 0.21 to 49.40 kg. Available models include compact collars for 19–50 mm shafts, medium-size versions for shafts up to 95 mm and large collars for shaft diameters from 100 to 360 mm. Select the required Tecnoseal model according to shaft diameter, overall collar diameter, height and weight.
- Description
- Ask a Question
-

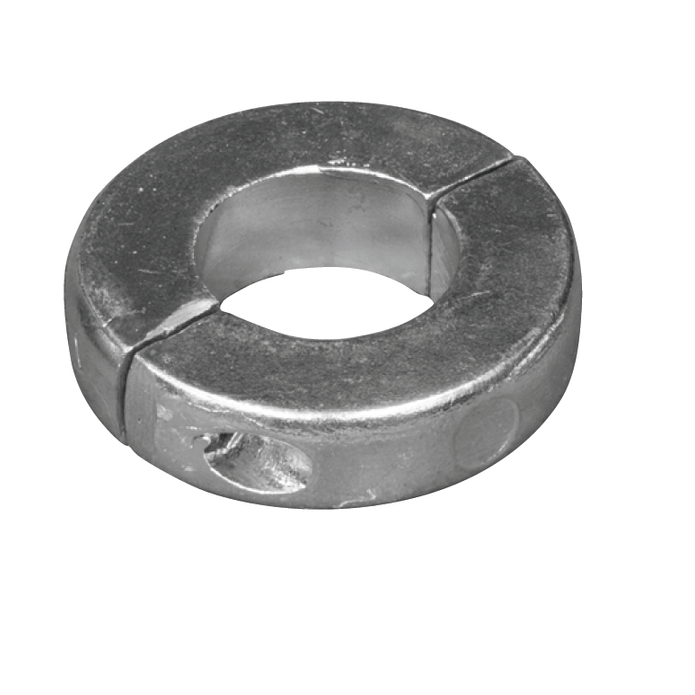

Tecnoseal Zinc Shaft Collar Sacrificial Anodes – Limited Clearance, Slim, Medium & Large Size – Shaft 19–360 mm
The Tecnoseal Zinc Shaft Collar Anodes are available in several dimensional groups for different shaft sizes: Limited Clearance, Slim Type, Medium Size and Large Size. The range covers both metric and imperial shaft dimensions.
Available shaft sizes range from 19 mm / 3/4" up to 360 mm. Depending on the selected model, collar height ranges from 18 to 60 mm, overall outside diameter from Ø61 to Ø511 mm and weight from 0.21 to 49.40 kg.
Confirmed Osculati cross references for the Limited Clearance range include Tecnoseal 00551L / Osculati 43.810.22, 00552L / Osculati 43.810.25, 00553L / Osculati 43.810.26, 00555L / Osculati 43.810.30, 00556L / Osculati 43.810.32 and 00557L / Osculati 43.810.35.
Key Features
- Brand: Tecnoseal
- Product Type: Shaft collar sacrificial anode
- Material: Zinc
- Configurations: Limited Clearance, Slim Type, Medium Size and Large Size
- Osculati Cross References: 00551L / 43.810.22; 00552L / 43.810.25; 00553L / 43.810.26; 00555L / 43.810.30; 00556L / 43.810.32; 00557L / 43.810.35
- Shaft Size Range: 19 mm / 3/4" to 360 mm
- Height Range: 18–60 mm
- Overall Diameter Range: Ø61–511 mm
- Weight Range: 0.21–49.40 kg
Limited Clearance Shaft Collar Anodes
Tecnoseal Code Osculati Reference Shaft Size Weight Height (h) Overall Ø Ø1 00550L — 19 mm / 3/4" 0.26 kg / 260 g 20 mm 65 mm 19 mm 00550-1L — 20 mm 0.26 kg / 260 g 20 mm 65 mm 20 mm 00551L 43.810.22 7/8" 0.35 kg / 350 g 20 mm 65 mm 22 mm 00552L 43.810.25 25 mm 0.23 kg / 230 g 20 mm 65 mm 25 mm 00553L 43.810.26 1" 0.35 kg / 350 g 20 mm 65 mm 25.40 mm 00554L — 1-1/8" 0.29 kg / 290 g 18 mm 65 mm 28.60 mm 00555L 43.810.30 30 mm 0.28 kg / 280 g 20 mm 65 mm 30 mm 00556L 43.810.32 1-1/4" 0.27 kg / 270 g 20 mm 65 mm 31.80 mm 00557L 43.810.35 35 mm 0.24 kg / 240 g 20 mm 65 mm 35 mm
Slim Type Shaft Collar Anodes
Tecnoseal Code Shaft Size Weight Height (h) Overall Ø Ø1 00558 40 mm 0.52 kg / 520 g 20 mm 85 mm 40 mm 00559 45 mm 0.47 kg / 470 g 20 mm 85 mm 45 mm 00559/1 48 mm 0.44 kg / 440 g 20 mm 80 mm 48 mm 00560 50 mm 0.42 kg / 420 g 20 mm 85 mm 50 mm 00562 1-1/2" 0.21 kg / 210 g 25 mm 61 mm 38 mm
Medium Size Shaft Collar Anodes
Tecnoseal Code Shaft Size Weight Height (h) Overall Ø Ø1 00561 55 mm 1.35 kg / 1350 g 30 mm 115 mm 55 mm 00563 2-1/4" 1.30 kg / 1300 g 30 mm 115 mm 57.10 mm 00564 60 mm 1.26 kg / 1260 g 30 mm 115 mm 60 mm 00565 2-1/2" 1.17 kg / 1170 g 30 mm 110 mm 63.50 mm 00566 65 mm 1.16 kg / 1160 g 30 mm 110 mm 65 mm 00567 70 mm 1.10 kg / 1100 g 30 mm 115 mm 70 mm 00568 75 mm 1.00 kg / 1000 g 30 mm 115 mm 75 mm 00568-1 3" 0.98 kg / 980 g 30 mm 115 mm 76.2 mm 00569 80 mm 1.88 kg / 1880 g 32 mm 135 mm 80 mm 00570 85 mm 1.72 kg / 1720 g 32 mm 135 mm 85 mm 00571 90 mm 1.56 kg / 1560 g 32 mm 135 mm 90 mm 00572 95 mm 1.40 kg / 1400 g 32 mm 135 mm 95 mm
Large Size Shaft Collar Anodes
Tecnoseal Code Shaft Size Weight Height (h) Overall Ø Ø1 00573 100 mm 2.01 kg / 2010 g 32 mm 148 mm 100 mm 00574 105 mm 5.80 kg / 5800 g 40 mm 195 mm 105 mm 00575 110 mm 5.50 kg / 5500 g 40 mm 195 mm 110 mm 00576 115 mm 5.30 kg / 5300 g 40 mm 195 mm 115 mm 00577 120 mm 6.20 kg / 6200 g 40 mm 210 mm 120 mm 00580 125 mm 6.00 kg / 6000 g 40 mm 210 mm 125 mm 00580-1 130 mm 5.66 kg / 5660 g 40 mm 210 mm 130 mm 00582 135 mm 6.76 kg / 6760 g 40 mm 225 mm 135 mm 00583 140 mm 6.44 kg / 6440 g 40 mm 225 mm 140 mm 00583-1 145 mm 5.70 kg / 5700 g 40 mm 220 mm 145 mm 00584 150 mm 7.35 kg / 7350 g 40 mm 240 mm 150 mm 00586 155 mm 4.30 kg / 4300 g 40 mm 210 mm 155 mm 00587 160 mm 6.60 kg / 6600 g 40 mm 240 mm 160 mm 00590M 300 mm 6.24 kg / 6240 g 60 mm 511 mm 300 mm 00595 350 mm 49.40 kg / 49400 g 60 mm 511 mm 350 mm 00579/1 360 mm 19.70 kg / 19700 g 60 mm 511 mm 360 mm
Dimensions for Model Selection
- Shaft Size: Nominal shaft diameter for the selected collar
- h: Collar height
- Ø: Overall outside diameter
- Ø1: Internal shaft diameter
For replacement selection, compare the shaft diameter, overall outside diameter, collar height and anode weight with the existing installation.
" -
