Tecnoseal Zinc Light Type Shaft Sacrificial Anodes, Shaft 19–28 mm

Name: Tecnoseal Zinc Light Type Shaft Sacrificial Anodes, Shaft 19–28 mm
SKU: Tecnoseal 00500L

ID 1399748

$ 25.99

1-2 weeks delivery time

Shaft Diameter:

25
28
7/8"
3/4"
1"

Item:

250 g
310 g
290 g
240 g
220 g

Tecnoseal zinc Light Type shaft sacrificial anodes for marine shaft installations, available in five metric and imperial shaft configurations from 19 mm / 3/4" to 28 mm. All models feature 2 fastening holes, a 40 mm height and Ø50 mm overall diameter, with shaft openings from 19 to 28 mm and weights from 0.22 to 0.31 kg. The range includes Tecnoseal 00500L for 19 mm / 3/4" shafts, 00501L for 7/8" shafts, 00502L for 25 mm shafts, 00503L for 1" shafts and 00504L for 28 mm shafts. Bolts and nuts are available on request. Select the required model according to shaft diameter and anode weight.

Description
Ask a Question

Tecnoseal Zinc Light Type Shaft Sacrificial Anodes – 2 Fastening Holes, Shaft 19–28 mm

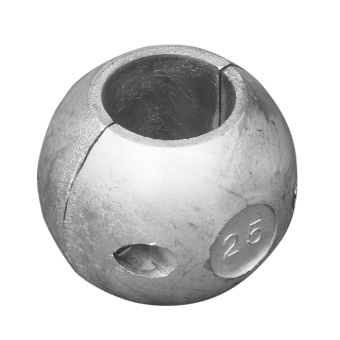

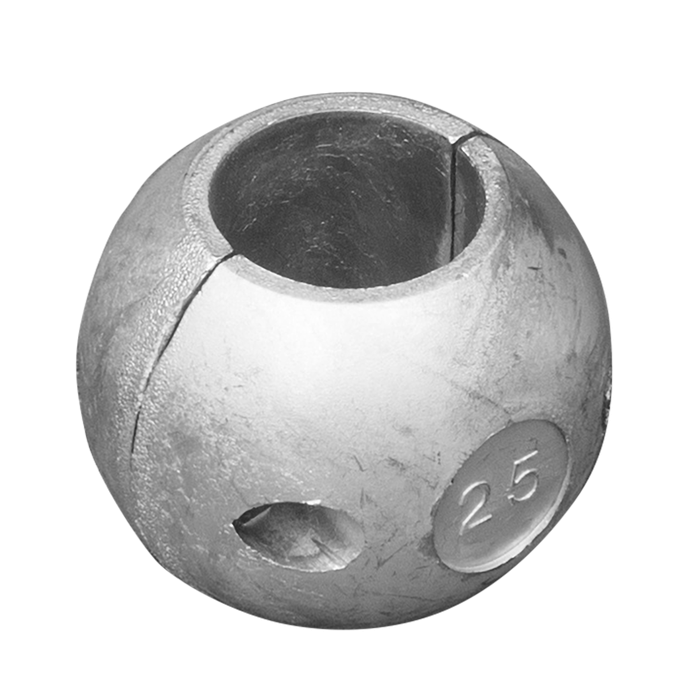

The Tecnoseal Zinc Light Type Shaft Anodes are sacrificial shaft anodes designed for marine shaft installations. The range includes five metric and imperial shaft-size configurations from 19 mm / 3/4" up to 28 mm.

All models use a 2 fastening-hole configuration and have the same 40 mm height and Ø50 mm overall outside diameter. Internal shaft openings range from 19 to 28 mm, with zinc anode weights from 0.22 to 0.31 kg. Bolts and nuts are available on request.

Key Features

Brand: Tecnoseal
Type: Light Type Shaft Anode
Product Type: Shaft sacrificial anode
Material: Zinc
Available Models: 00500L, 00501L, 00502L, 00503L and 00504L
Shaft Size Range: 19 mm / 3/4" to 28 mm
Fastening: 2 fastening holes
Bolts and Nuts: Available on request
Height (h): 40 mm
Overall Diameter (Ø): 50 mm
Weight Range: 0.22–0.31 kg

Available Models and Technical Specifications

Tecnoseal Code	Shaft Size	Weight	Height (h)	Overall Ø	Ø1
00500L	19 mm / 3/4"	0.31 kg / 310 g / 0.68 lb	40 mm / 1.57 in	50 mm / 1.97 in	19 mm / 0.75 in
00501L	7/8"	0.29 kg / 290 g / 0.64 lb	40 mm / 1.57 in	50 mm / 1.97 in	22 mm / 0.87 in
00502L	25 mm	0.25 kg / 250 g / 0.55 lb	40 mm / 1.57 in	50 mm / 1.97 in	25 mm / 0.98 in
00503L	1"	0.24 kg / 240 g / 0.53 lb	40 mm / 1.57 in	50 mm / 1.97 in	25.40 mm / 1.00 in
00504L	28 mm	0.22 kg / 220 g / 0.49 lb	40 mm / 1.57 in	50 mm / 1.97 in	28 mm / 1.10 in
