ID
1399562
$ 22.18
1-2 weeks delivery time
Shaft Diameter:
- 20
- 25
- 30
- 35
- 7/8"
- 1-1/8"
- 1-1/4"
- 3/4"
- 1"
Size:
- Ø55x25
- Ø66x25
Item:
- 270 g
- 290 g
- 260 g
- 320 g
- 240 g
- 220 g
- 230 g
Tecnoseal zinc NACA-profile shaft collar sacrificial anodes, available in nine sizes for shafts from 19 to 35 mm, including metric and imperial shaft configurations. All models have a height of 25 mm, with outside diameters of Ø55 or Ø66 mm depending on size. The range covers Ø1 shaft openings from 19 to 35 mm and zinc anode weights from 0.22 to 0.32 kg. Select the required model according to shaft diameter, outside diameter and weight.
- Description
- Ask a Question
-

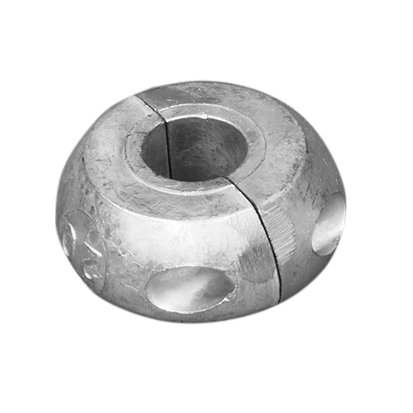

Tecnoseal Zinc NACA Profile Shaft Collar Sacrificial Anodes – Shaft 19–35 mm
The Tecnoseal Zinc NACA Profile Shaft Collar Anodes are sacrificial anodes available in nine shaft-size configurations. The range includes both metric and imperial shaft sizes from 19 mm / 3/4" up to 35 mm.
All models have a height of 25 mm. The smaller versions use a Ø55 mm outside diameter, while the larger versions use a Ø66 mm outside diameter. Zinc anode weights range from 0.22 to 0.32 kg.
Cross references include Tecnoseal 00550/1 / Osculati 43.801.20, Tecnoseal 00551 / Osculati 43.801.22, Tecnoseal 00552 / Osculati 43.801.25, Tecnoseal 00553 / Osculati 43.801.26, Tecnoseal 00555 / Osculati 43.801.30, Tecnoseal 00556 / Osculati 43.801.32 and Tecnoseal 00557 / Osculati 43.801.35.
Key Features
- Brand: Tecnoseal
- Type: NACA Profile Shaft Collar Anode
- Material: Zinc
- Available Models: 00550, 00550/1, 00551, 00552, 00553, 00554, 00555, 00556 and 00557
- Osculati Cross References: 00550/1 / 43.801.20; 00551 / 43.801.22; 00552 / 43.801.25; 00553 / 43.801.26; 00555 / 43.801.30; 00556 / 43.801.32; 00557 / 43.801.35
- Shaft Size Range: 19–35 mm
- Height (h): 25 mm
- Outside Diameter (Ø): 55 or 66 mm
- Weight Range: 0.22–0.32 kg
Available Models and Technical Specifications
Tecnoseal Code Osculati Reference Shaft Size Weight Height (h) Outside Diameter (Ø) Ø1 00550 — 19 mm / 3/4" 0.32 kg / 320 g 25 mm 55 mm 19 mm 00550/1 43.801.20 20 mm 0.26 kg / 260 g 25 mm 55 mm 20 mm 00551 43.801.22 7/8" 0.24 kg / 240 g 25 mm 55 mm 22 mm 00552 43.801.25 25 mm 0.22 kg / 220 g 25 mm 55 mm 25 mm 00553 43.801.26 1" 0.29 kg / 290 g 25 mm 55 mm 25.40 mm 00554 — 1-1/8" 0.27 kg / 270 g 25 mm 66 mm 28.60 mm 00555 43.801.30 30 mm 0.27 kg / 270 g 25 mm 66 mm 30 mm 00556 43.801.32 1-1/4" 0.26 kg / 260 g 25 mm 66 mm 31.80 mm 00557 43.801.35 35 mm 0.23 kg / 230 g 25 mm 66 mm 35 mm
Tecnoseal 00550 – Shaft 19 mm / 3/4"
- Material: Zinc
- Weight: 0.32 kg / 320 g / 0.71 lb
- Shaft Size: 19 mm / 3/4"
- Height (h): 25 mm / 0.98 in
- Outside Diameter (Ø): 55 mm / 2.17 in
- Ø1: 19 mm / 0.75 in
Tecnoseal 00550/1 / Osculati 43.801.20 – Shaft 20 mm
- Tecnoseal Code: 00550/1
- Osculati Reference: 43.801.20
- Material: Zinc
- Weight: 0.26 kg / 260 g / 0.57 lb
- Shaft Size: 20 mm
- Height (h): 25 mm / 0.98 in
- Outside Diameter (Ø): 55 mm / 2.17 in
- Ø1: 20 mm / 0.79 in
Tecnoseal 00551 / Osculati 43.801.22 – Shaft 7/8"
- Tecnoseal Code: 00551
- Osculati Reference: 43.801.22
- Material: Zinc
- Weight: 0.24 kg / 240 g / 0.53 lb
- Shaft Size: 7/8"
- Height (h): 25 mm / 0.98 in
- Outside Diameter (Ø): 55 mm / 2.17 in
- Ø1: 22 mm / 0.87 in
Tecnoseal 00552 / Osculati 43.801.25 – Shaft 25 mm
- Tecnoseal Code: 00552
- Osculati Reference: 43.801.25
- Material: Zinc
- Weight: 0.22 kg / 220 g / 0.49 lb
- Shaft Size: 25 mm
- Height (h): 25 mm / 0.98 in
- Outside Diameter (Ø): 55 mm / 2.17 in
- Ø1: 25 mm / 0.98 in
Tecnoseal 00553 / Osculati 43.801.26 – Shaft 1"
- Tecnoseal Code: 00553
- Osculati Reference: 43.801.26
- Material: Zinc
- Weight: 0.29 kg / 290 g / 0.64 lb
- Shaft Size: 1"
- Height (h): 25 mm / 0.98 in
- Outside Diameter (Ø): 55 mm / 2.17 in
- Ø1: 25.40 mm / 1.00 in
Tecnoseal 00554 – Shaft 1-1/8"
- Material: Zinc
- Weight: 0.27 kg / 270 g / 0.60 lb
- Shaft Size: 1-1/8"
- Height (h): 25 mm / 0.98 in
- Outside Diameter (Ø): 66 mm / 2.60 in
- Ø1: 28.60 mm / 1.13 in
Tecnoseal 00555 / Osculati 43.801.30 – Shaft 30 mm
- Tecnoseal Code: 00555
- Osculati Reference: 43.801.30
- Material: Zinc
- Weight: 0.27 kg / 270 g / 0.60 lb
- Shaft Size: 30 mm
- Height (h): 25 mm / 0.98 in
- Outside Diameter (Ø): 66 mm / 2.60 in
- Ø1: 30 mm / 1.18 in
Tecnoseal 00556 / Osculati 43.801.32 – Shaft 1-1/4"
- Tecnoseal Code: 00556
- Osculati Reference: 43.801.32
- Material: Zinc
- Weight: 0.26 kg / 260 g / 0.57 lb
- Shaft Size: 1-1/4"
- Height (h): 25 mm / 0.98 in
- Outside Diameter (Ø): 66 mm / 2.60 in
- Ø1: 31.80 mm / 1.25 in
Tecnoseal 00557 / Osculati 43.801.35 – Shaft 35 mm
- Tecnoseal Code: 00557
- Osculati Reference: 43.801.35
- Material: Zinc
- Weight: 0.23 kg / 230 g / 0.51 lb
- Shaft Size: 35 mm
- Height (h): 25 mm / 0.98 in
- Outside Diameter (Ø): 66 mm / 2.60 in
- Ø1: 35 mm / 1.38 in
Dimensions for Model Selection
- Shaft Size: Shaft diameter specified for the corresponding model
- h: Anode height
- Ø: Overall outside diameter
- Ø1: Shaft opening diameter
For replacement selection, compare the shaft size, overall diameter, height, Ø1 dimension and anode weight with the existing installation.
-
